Product Description

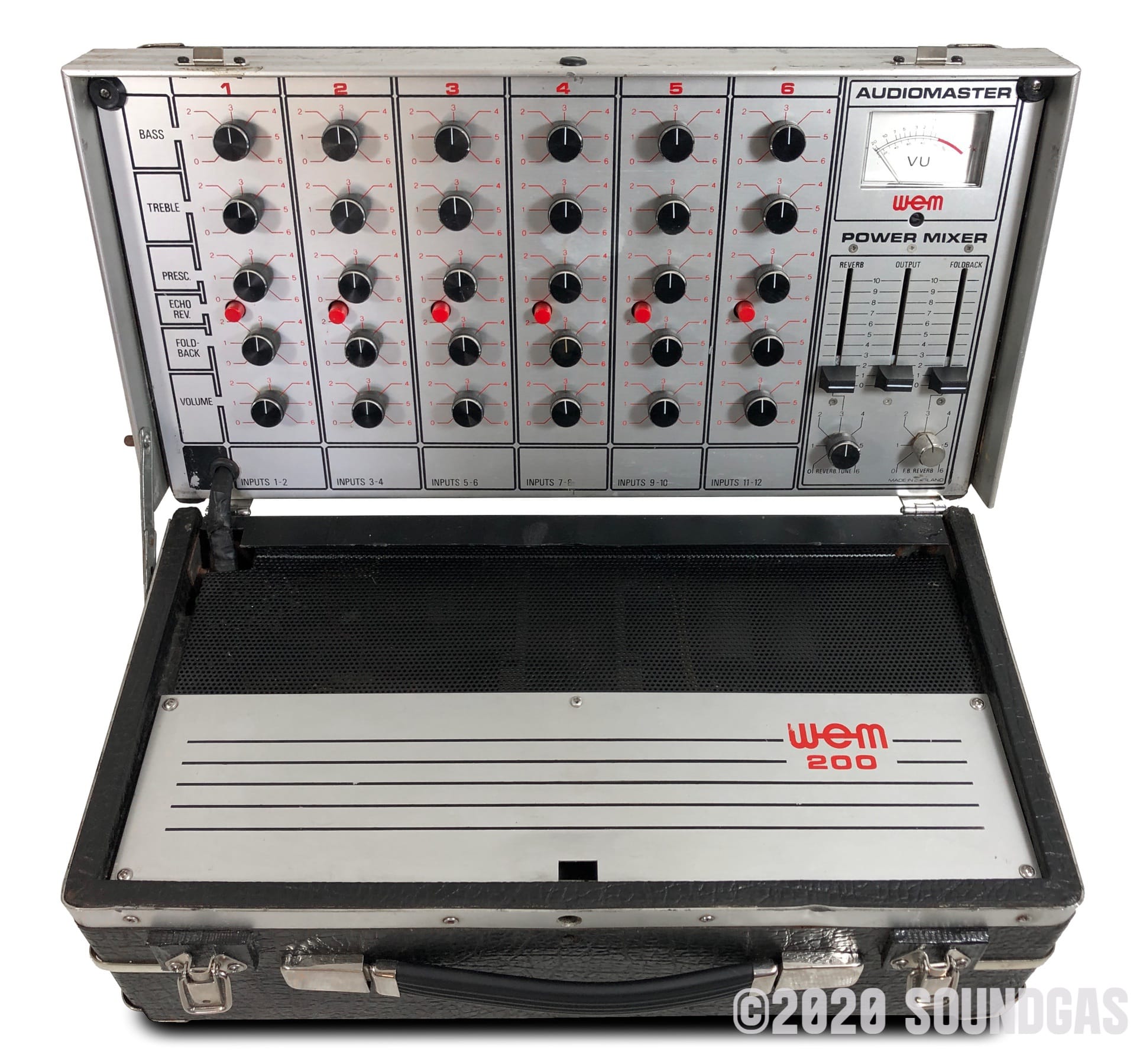

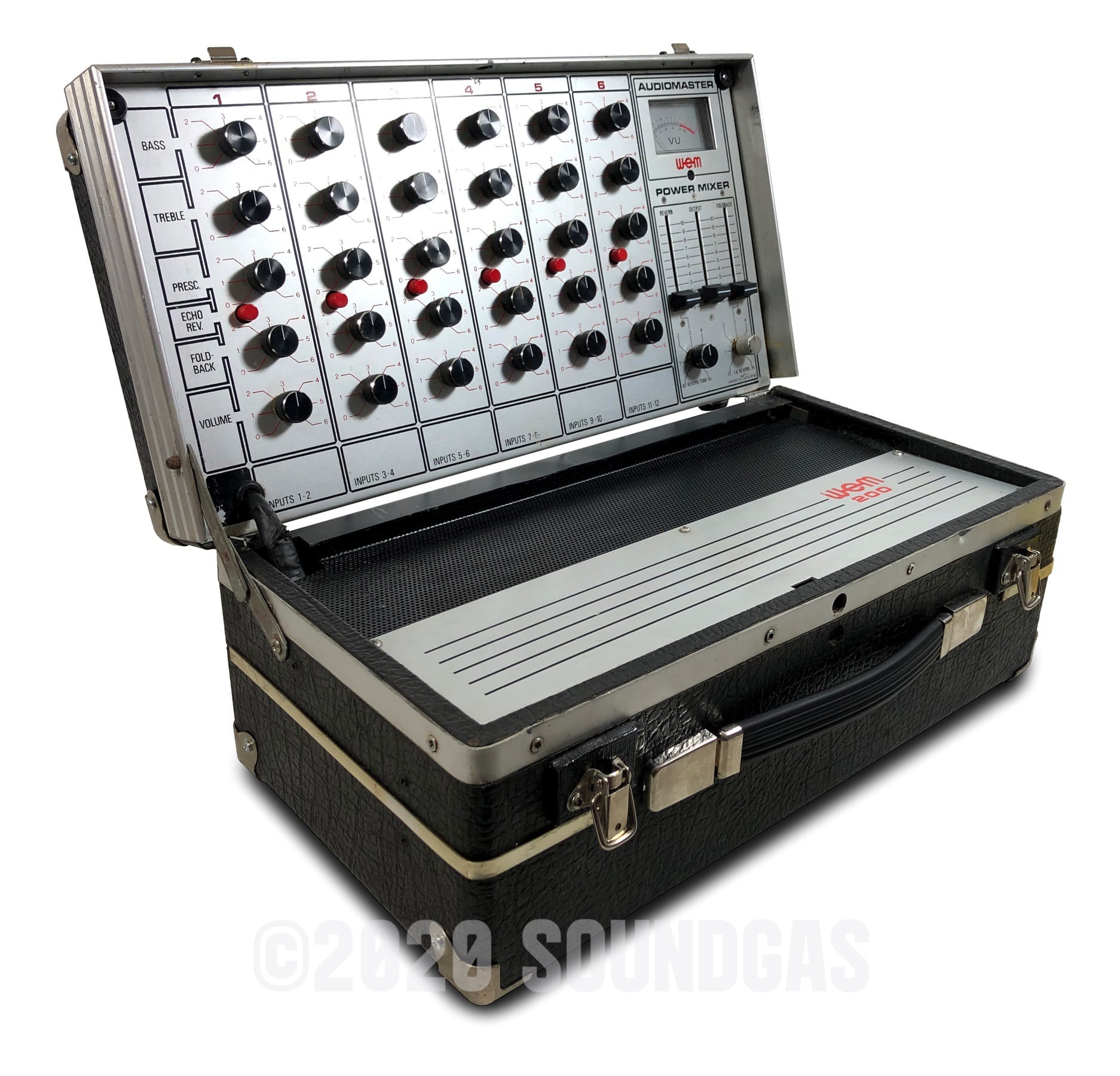

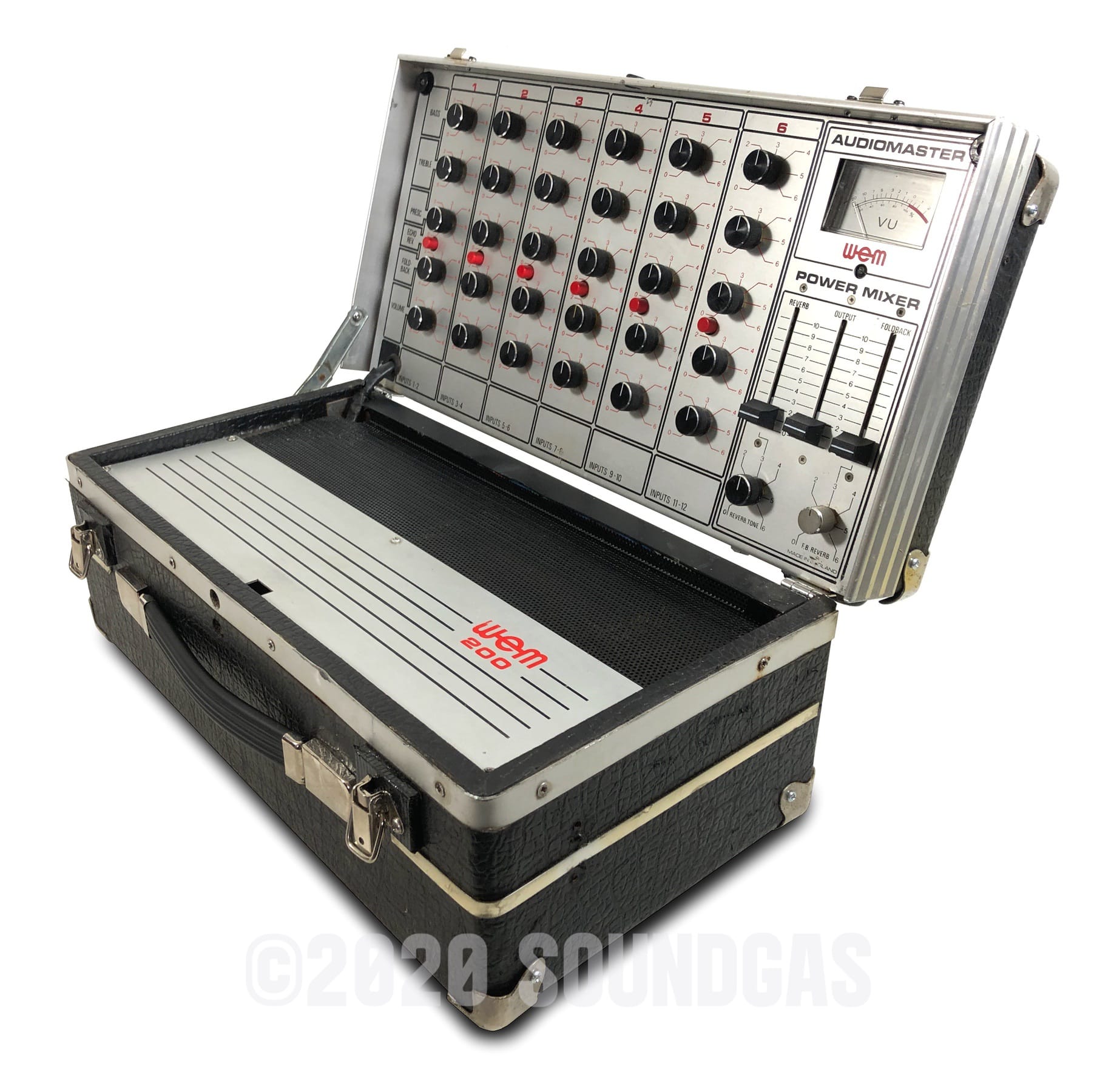

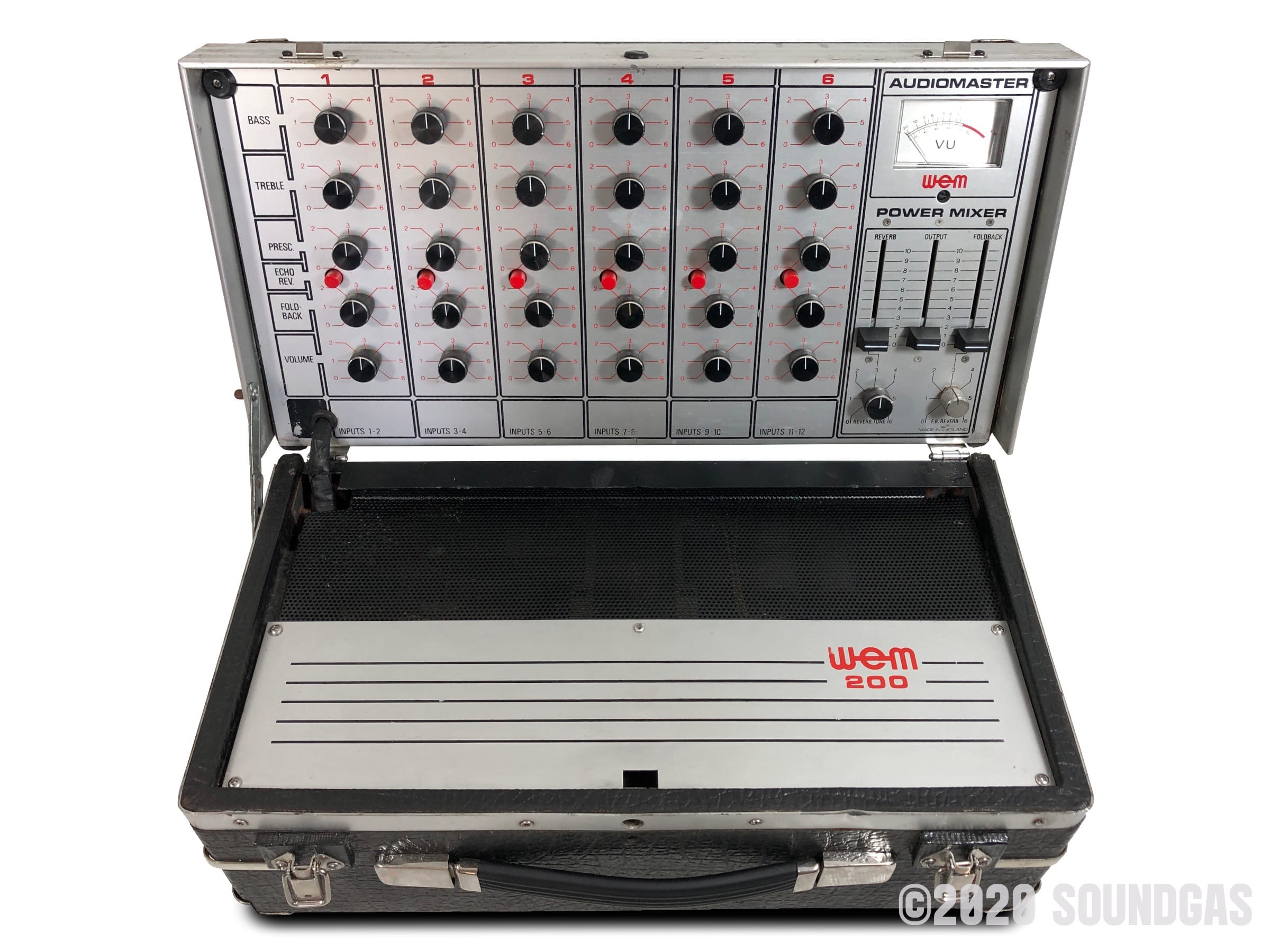

WEM JB-200 / Audiomaster Power Mixer for sale.
Serviced and ready to ship. Didn't need any serious repairs (mostly full of dust and spiders according to the tech).
Some info from wem-owners.com:

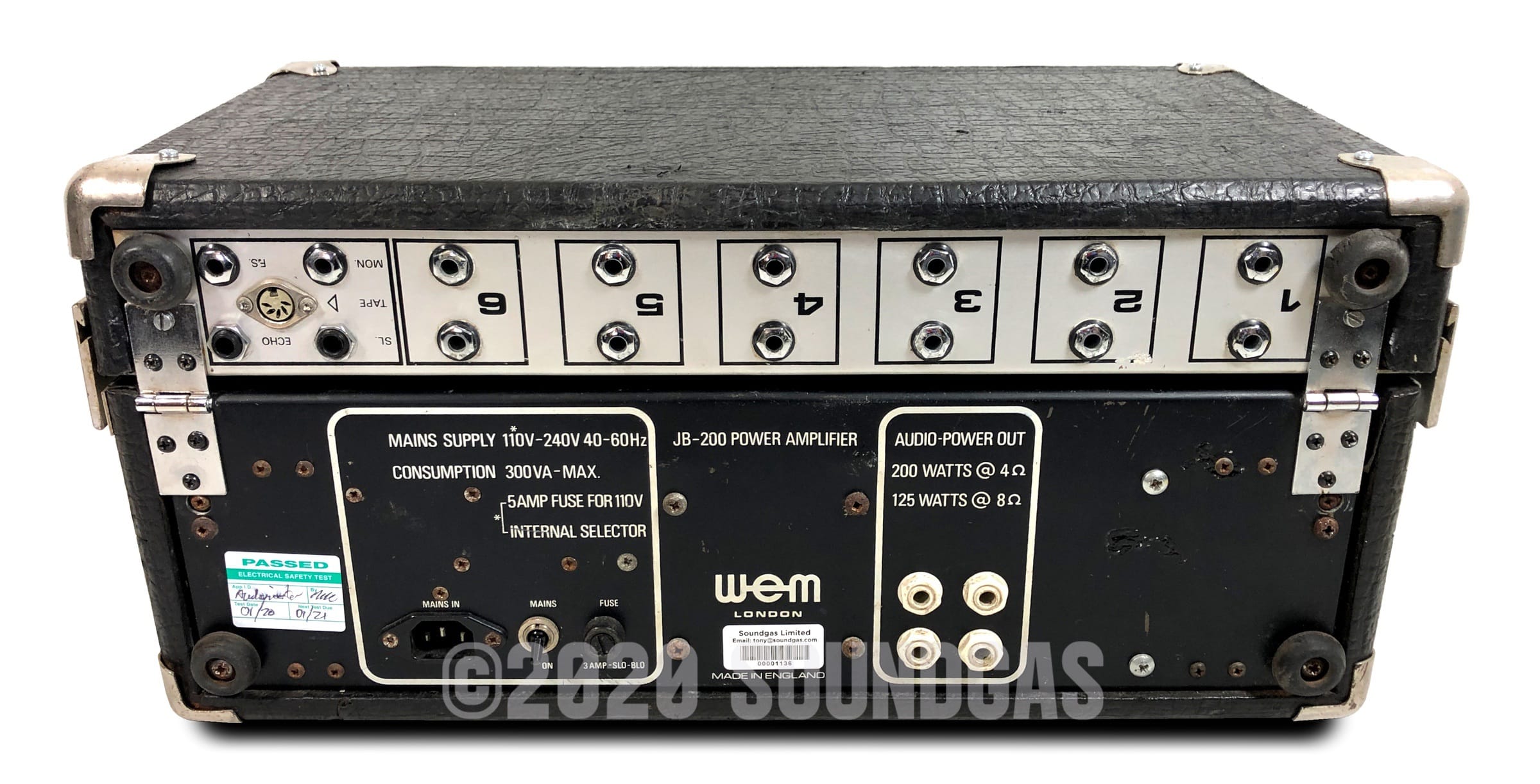

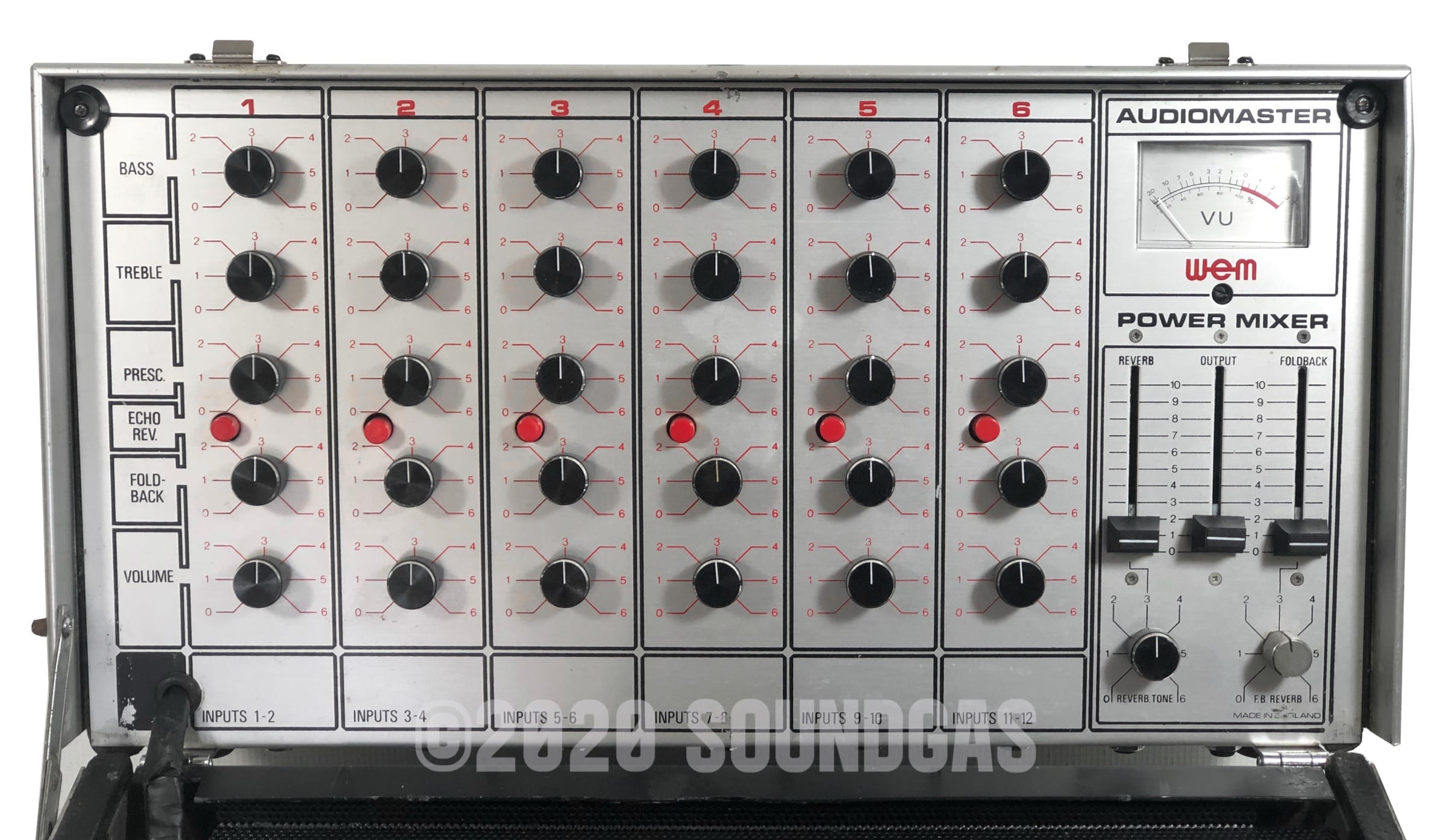

This 6 channel, 12 input mixer/amp appears in the 1979/80 Bell Music Instruments catalogue. It also appears in the Songbird Cabs and Soundman Amps catalogue which dates from the late 1970s/ early 1980s. It’s described as a 200 watt Power Mixer with reverb, fold-back, and comprehensive mixing facilities. Each of the 6 channels has 2 high impedance jack inputs with active controls for bass, treble, presence plus volume and fold-back level controls plus a reverb/echo on/off push button. The Master section has sliders for reverb, output and fold-back levels plus controls for reverb tone and fold-back reverb level. There is also an illuminated pre-fade meter. On the rear panel, along with the 4 speaker jack sockets, there are sockets for fold-back (monitor) output, slave output, echo/reverb footswitch, plus a stereo jack socket for echo send/return. There is also a din socket for tape play and record via a tape deck. The power amp contains 4 x 2N3773 transistors and the amp is rated at 200 watts into 4 ohms or 120 watts into 8 ohms.
In addition our engineer noted that the send/return "is a stereo socket, wired tip=send, ring=return in the conventional manner. This works in parallel with the built-in spring reverb, sharing the same send (on/off switches on each channel, no level control) and return (reverb fader). You could of course use a channel as the return instead giving a bit more flexibility."
Serviced and ready to ship. Didn't need any serious repairs (mostly full of dust and spiders according to the tech).
Some info from wem-owners.com:
This 6 channel, 12 input mixer/amp appears in the 1979/80 Bell Music Instruments catalogue. It also appears in the Songbird Cabs and Soundman Amps catalogue which dates from the late 1970s/ early 1980s. It’s described as a 200 watt Power Mixer with reverb, fold-back, and comprehensive mixing facilities. Each of the 6 channels has 2 high impedance jack inputs with active controls for bass, treble, presence plus volume and fold-back level controls plus a reverb/echo on/off push button. The Master section has sliders for reverb, output and fold-back levels plus controls for reverb tone and fold-back reverb level. There is also an illuminated pre-fade meter. On the rear panel, along with the 4 speaker jack sockets, there are sockets for fold-back (monitor) output, slave output, echo/reverb footswitch, plus a stereo jack socket for echo send/return. There is also a din socket for tape play and record via a tape deck. The power amp contains 4 x 2N3773 transistors and the amp is rated at 200 watts into 4 ohms or 120 watts into 8 ohms.
In addition our engineer noted that the send/return "is a stereo socket, wired tip=send, ring=return in the conventional manner. This works in parallel with the built-in spring reverb, sharing the same send (on/off switches on each channel, no level control) and return (reverb fader). You could of course use a channel as the return instead giving a bit more flexibility."
