Sequential Prophet-5 Keyboard

Sequential Prophet-5 Keyboard

Brand: Sequential

Regular price £2,557.00 GBP | Inc.VAT: £3,068.40 GBP
Regular price Sale price £2,557.00 GBP
Sale Sold out
Shipping calculated at checkout.

No longer in stock. If you're interested in something similar, please make an enquiry below.

The new Prophet-5 is Dave Smith’s timely return to the analog poly synth that changed the world. It’s “the best of all Prophet-5s” as Dave puts it because it embodies all three revisions of the legendary synth.

Make An Enquiry
View full details

Product Description

The Return of a Legend
Rev1, Rev2, and Rev3 — through the use of genuine Curtis analog VCOs
and filters (as in the Rev3) as well as new 2140 low-pass filters designed by Dave Rossum, like
the 2040 filters he designed in the original Rev1 and Rev2. A Rev switch lets you choose
between the two filter designs. It also adjusts the Filter Envelope’s shape and response to
match the original Prophet Rev 1/2 or Rev 3 respectively.

The result is as pure a renewal of an analog classic as you could wish for, with the authentic,
muscular sound of the original and the roadworthiness of a state-of-the-art modern

Vintage Sound, Vintage Knob
In addition to sourcing genuine Prophet-5 hardware components, we did extensive research
into exactly what made the original sound the way it did — warm, organic, and alive. We found
that much of this desirable character was due to slight fluctuations and differences in the
response times and frequencies of the individual VCOs, filters, envelopes, and amplifiers from
voice to voice.

To give the same mojo to the new Prophet-5, we created the Vintage knob. Use it to dial in as
much old-school randomness as you’d like. Go from a very stable “4” — as in Prophet-5 Rev4,
which is how we refer to the new version in house — all the way to “1,” as in Prophet-5 Rev1, the
rarest and most temperamental of all Prophet-5s.

Poly Mod and Enhanced Unison
In addition to the unmistakable tone of its oscillators and filters, much of the classic sound of
Prophet-5 was the result of Poly Mod, which is faithfully present here as well. True to the
original, modulation sources are Filter Envelope and Oscillator B. Destinations include Oscillator
A frequency, Oscillator A pulse width, and low-pass filter. The range of sounds possible defy its
simplicity. Another welcome reprise is Unison mode, which now features configurable voice
count (1-5 voices) with variable detuning, and chord memory. And now Glide works both in and
out of Unison.

Velocity and Aftertouch
Though our mission was to make the new Prophet-5 as accurate, authoritative, and true to the
original as possible, we couldn’t resist adding a couple of modern enhancements to increase
expressiveness: velocity sensitivity and aftertouch. These enable the new Prophet-5 to perform
in ways the original never could by putting filter sweeps, LFO mod, and volume changes at your

Effortless to Program

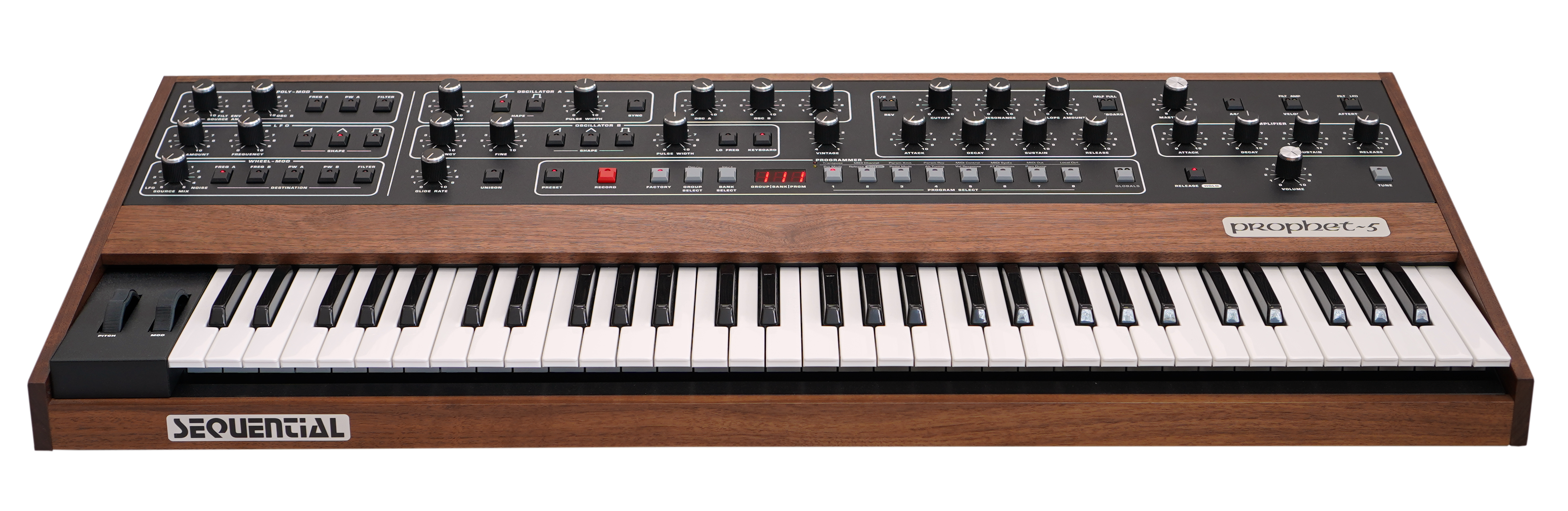

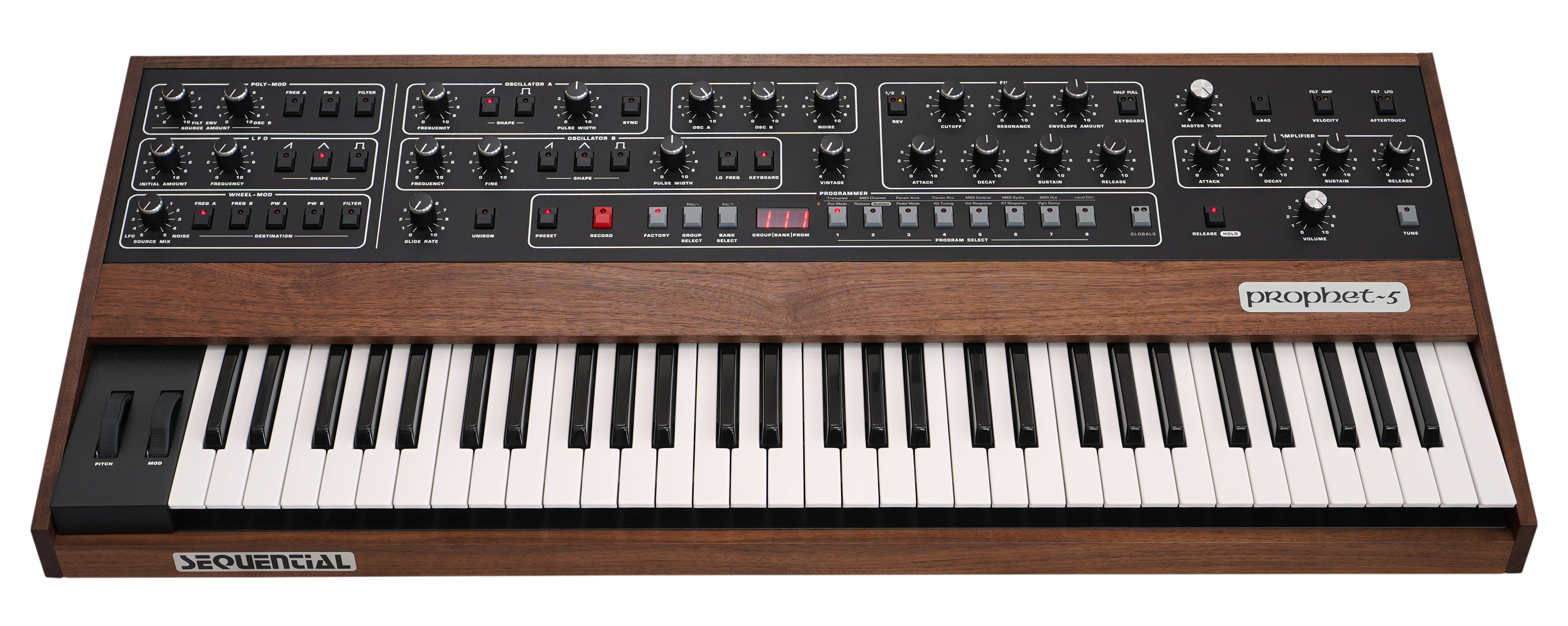

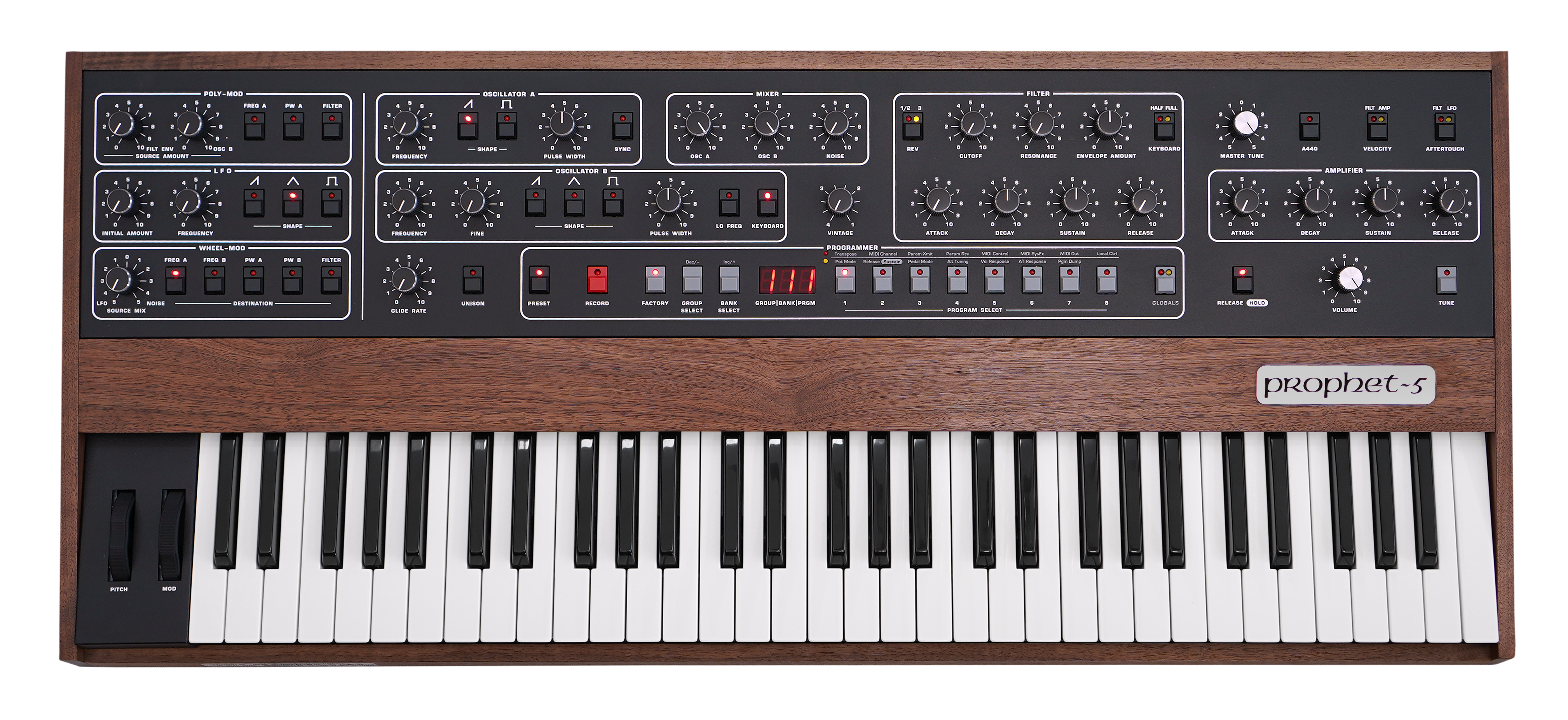

The purity of the new Prophet’s sound is matched only by its simplicity to program. The knob-
per-function front panel gives you instant gratification and immediate access to all sound-
shaping controls. Toggling off the Preset button enables live panel mode, where the Prophet-
5 switches to the current settings of its knobs and switches. What you see is exactly what you
hear. Included are 200 permanent factory programs and 200 rewritable user programs,
including the original 40-program sound set from 1978 that found its way onto countless
recordings and film soundtracks back in the day and beyond.

Expandable to 10 Voices
With the optional Voice Expansion Card, you can double the polyphony of the Prophet-5 to ten
voices. This also enables you to take advantage of bi-timbral operation, which is available on 10-
voice-capable Prophets. This means that you can play two different programs simultaneously.
In this mode, each program is allocated five voices. Use this capability to layer two programs for
thicker, more powerful pads or chord stabs. Alternatively, split the keyboard into two
independent performance zones and play synth bass in the lower range and leads or chords in
the upper range.

The Whole Package
All of this punchy, powerful, analog goodness is housed in a full, five-octave, semi-weighted
Fatar keyboard with USB, MIDI, Gate and CV ins/outs, and a premium-quality, steel and hand-
oiled, sustainable black walnut heartwood body that make it as satisfying to behold as it is to
hear and play.

Because each Prophet-5 features hand-selected woods, figuring and color can vary widely,
making each instrument one-of-a-kind.

The new Prophet-5 — history never looked or sounded better.


Prophet-5 Specifications


• Two authentic CEM 3340 VCOs per voice
• Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B:
sawtooth, triangle, pulse.
• Pulse width per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Low frequency mode (oscillator 2)
• Keyboard tracking on/off (oscillator 2)


• Oscillator 1 amount
• Oscillator 2 amount
• White noise amount


• Four-pole, resonant, low-pass filter per voice
• Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5
Rev3 filter
• Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original
2040 filter found in the Prophet-5 Rev1 and Rev2
• Rev3 filter is a Doug Curtis-designed CEM 3320
• Filter can be driven into self-oscillation with the Resonance control
• Keyboard tracking: off, half, full


• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount


• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount


• Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged
• Both Initial Amount and mod wheel control
• Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse
width, filter cutoff


• Sources: filter envelope and oscillator B
• Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff


• Recreates the characteristics of various Prophet-5 models by varying the behavior of
oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as
in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest
and most temperamental of all Prophet-5s.


• Channel (mono) aftertouch
• Destinations: filter cutoff frequency, LFO amount


• Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and
• Mod wheel
• Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and
• Polyphonic glide (portamento)
• Unison (monophonic) mode with configurable voice count, from one to all five voices
and key modes
• Preset switch: when off, the front panel is live; what you see is what you hear


• 200 user and 200 factory programs in 5 banks of 40 programs each
• Direct program access, including Prophet 5-style single-button access to the current set
of 8 programs

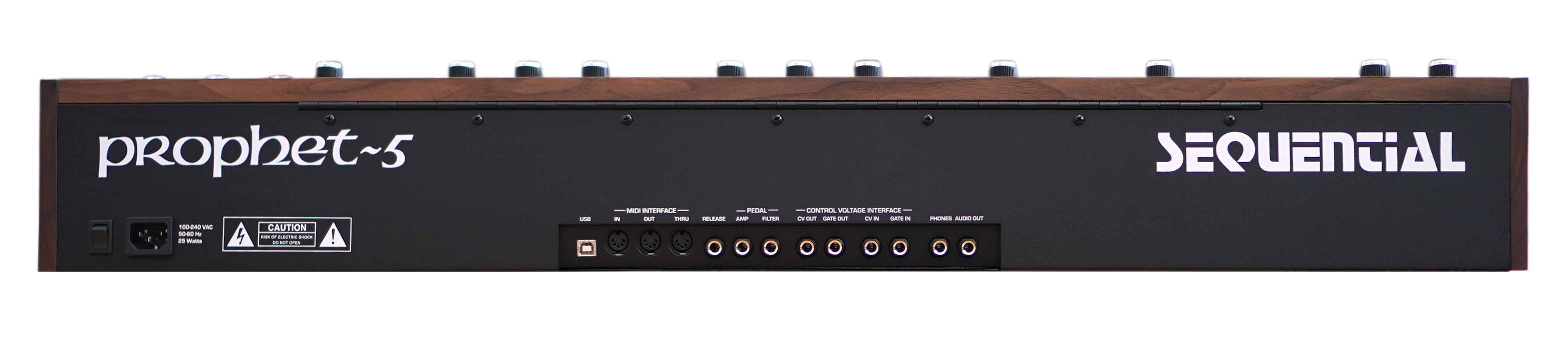

• Mono output (1 x 1/4” phone jack)
• Headphone output (stereo, 1/4” phone jack)
• MIDI in, out, and thru ports
• USB for bidirectional MIDI communication
• Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-
volt-per-octave operation.
• Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the
envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the
envelopes of an external synth.
• Low-pass filter cut-off expression pedal input
• Volume expression pedal input
• Sustain footswitch input


• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5:
20 watts maximum power consumption.


• 37.37” L x 16.35 W x 5.95′′ H (94.92 cm x 41.52 cm x 15.11 cm)
• 32 lbs (14.51 kg)
• Roadworthy all-steel construction with premium black walnut heartwood body and trim


Brand New!

Voltage Information

Switchable voltage for use anywhere in the world.
