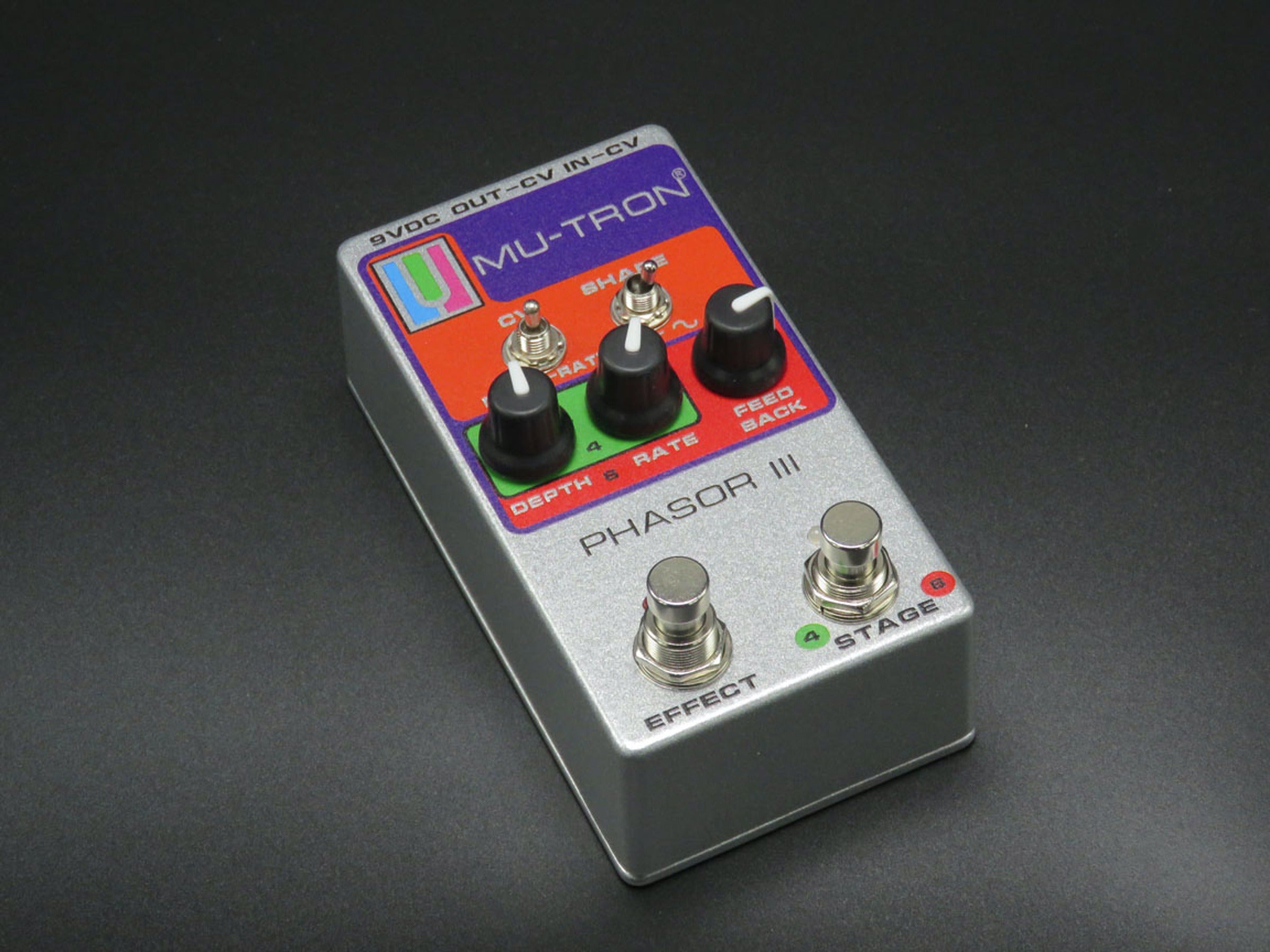

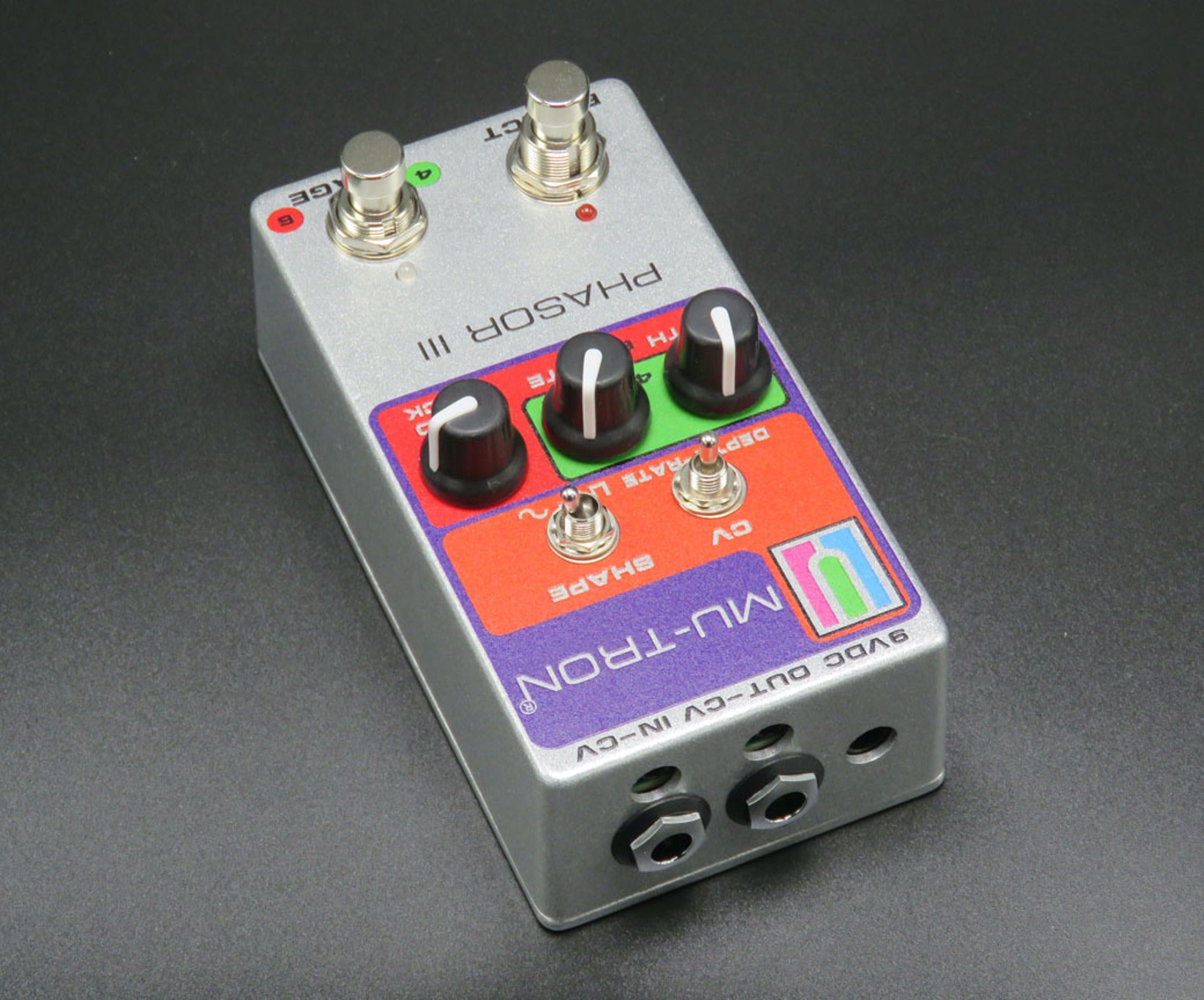

Mu-Tron Phasor III

We're official Mu-Tron stockists (as well as being very committed, long-time Mutron fans) and now have four of their modern pedals in stock.

From Mu-Tron:

Quite possibly the finest and fullest compact optical phasor ever made. The all analog Phasor III takes the legendary opts-circuitry of the vintage Phasor II and Bi-Phase pedals and packs into a compact 9 volt enclosure akin to the Micro-Tron III and Octavider pedals. In addition to re-creating the creamy phase of the Phasor II, the Phasor III also offers a 4 stage mode with a fixed feedback to get the classic rock tones that work well with overdrive and distortion harmonics. Finally, there is a control voltage input that will allow for real-time control of Rate or Depth to give the musician utmost expression and “Leslie Speaker” type of sounds. The pedal also supports control voltage out so that 2 or more Phasor III pedals can be linked to offer BiPhase and TriPhase types of applications.

Features:

• Modular optical design which allows for consistency across units


• High internal 18 volt operations insures high headroom and low noise


• 4 stages with a set feedback allows for classic phase that works well with saturated signal


• Square and sine wave operation


• Control voltage assignable to rate to achieve “Leslie” fast and slow control


• Control Voltage in and out allows for synchronized cascading of effects


• LED (light emitting diode) indicators to show operating status of effects.


• 9V DC powered in rugged Mu-Tron enclosure.

Controls:

• Feedback controls the level of phase feedback in 6 stage mode


• Rate controls speed of phase in 4 and 6 stage modes


• Depth controls intensity of phase effect


• Shape selects square or sine wave


• CV maybe assigned to rate, depth or none


• Stage (4/6) determines 4 or 6 stages of phasing

Specifications:

• 1/4″ Input Jack


• 1/4″ Output Jack


• 9V DC


• Weight: 1 lbs


• Dimensions: 4.75″ x 2.5″ x 2.25″


• 1 Year Limited Warranty


• Made in the USA
