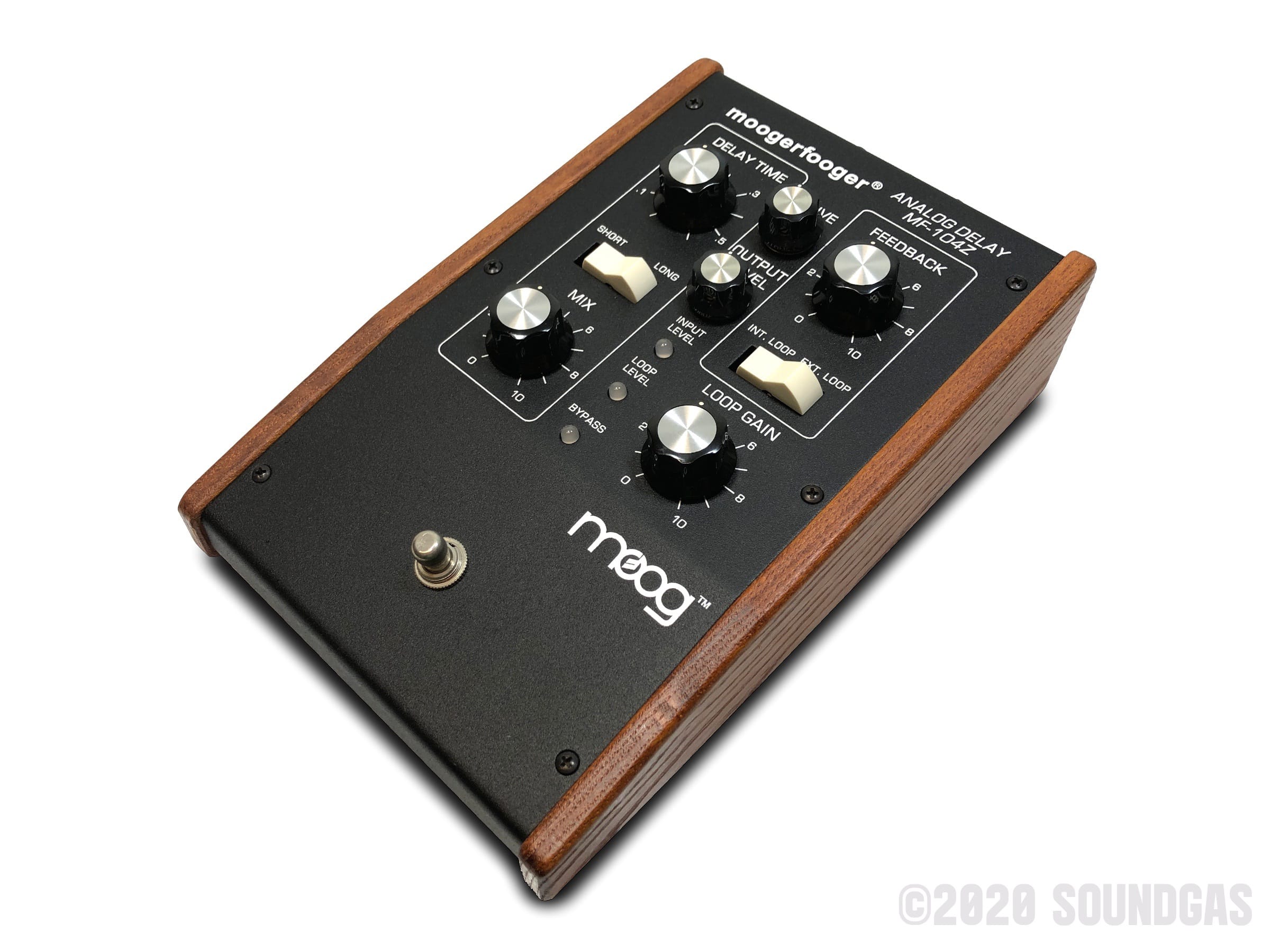

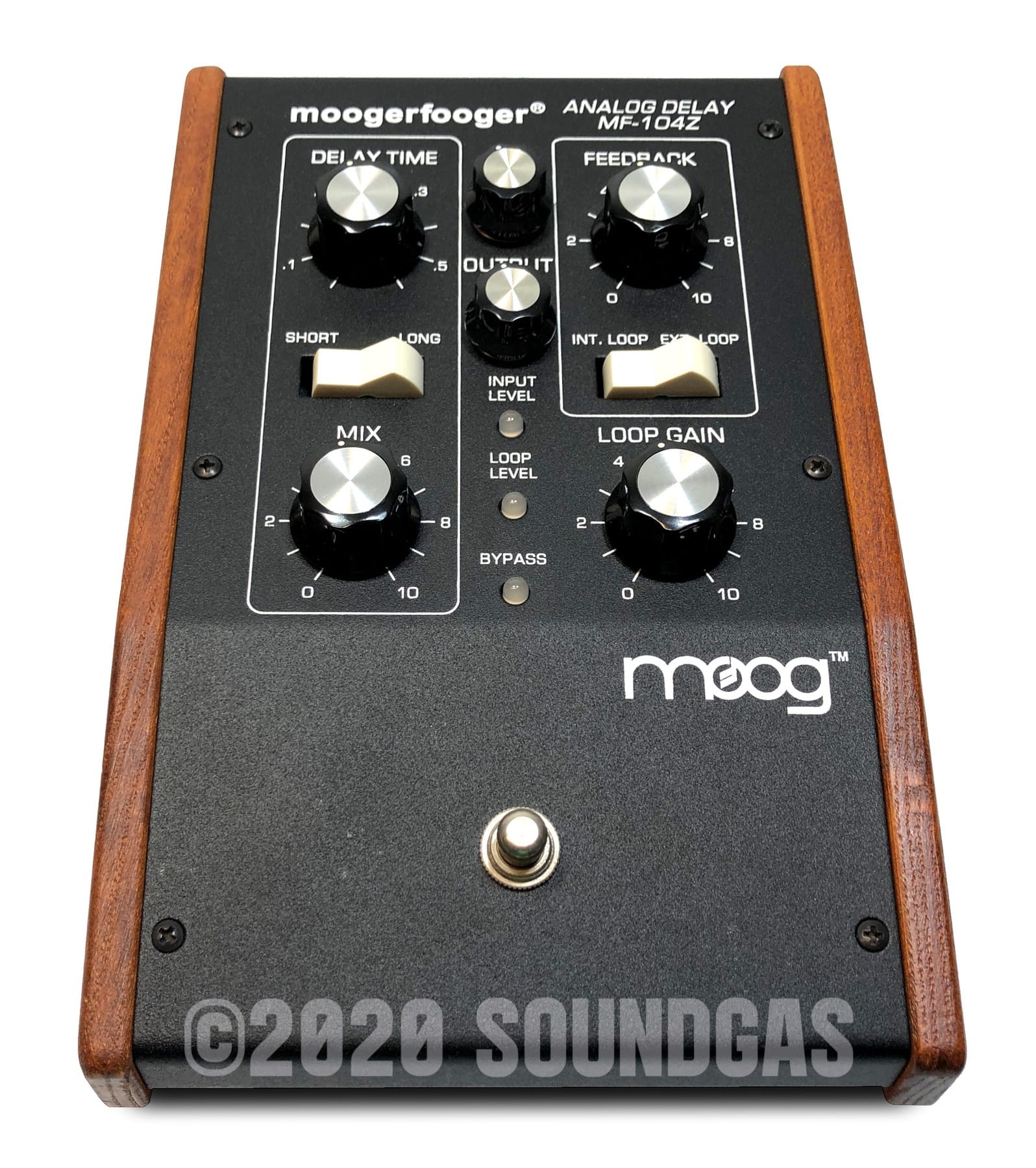

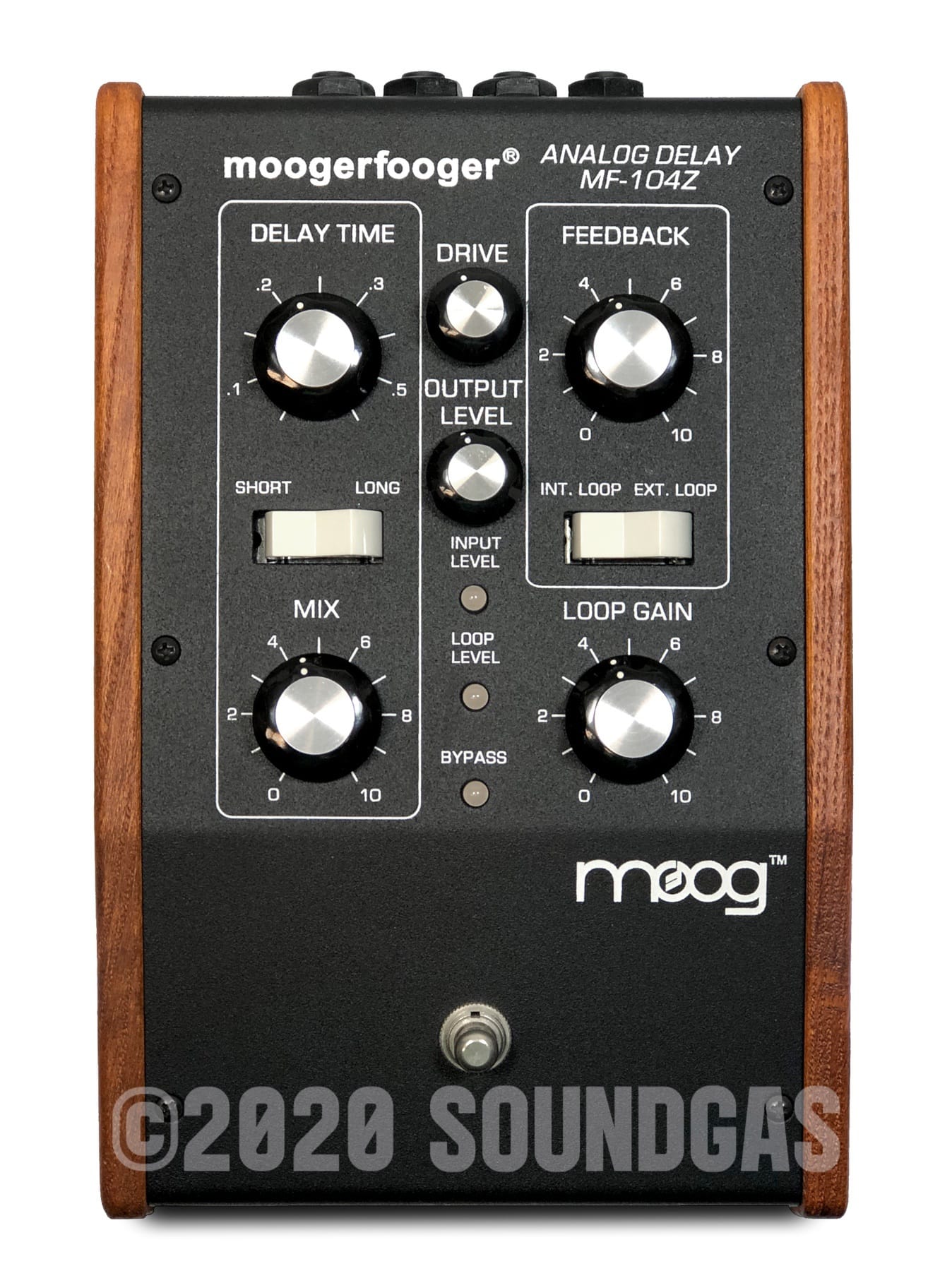

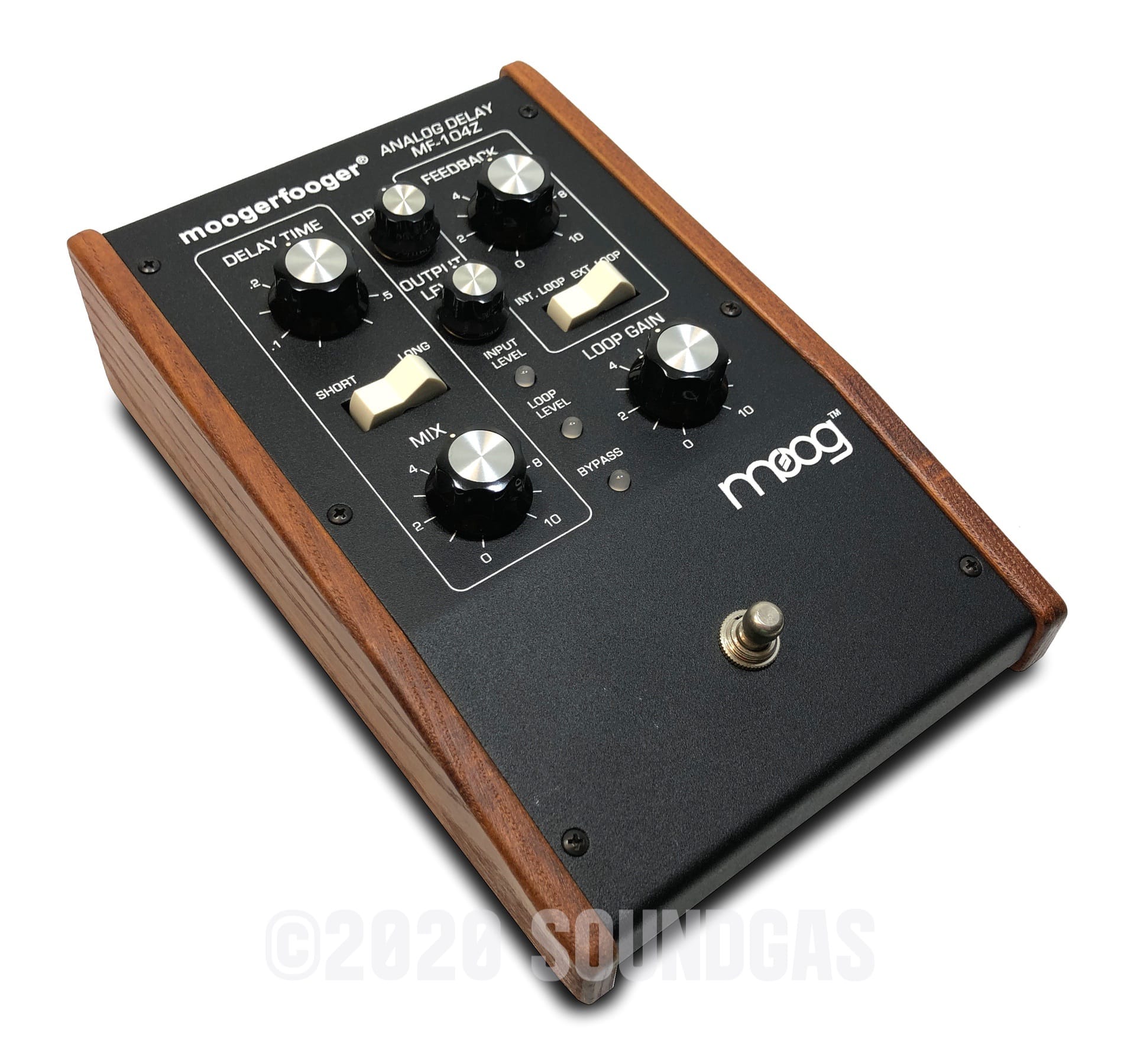

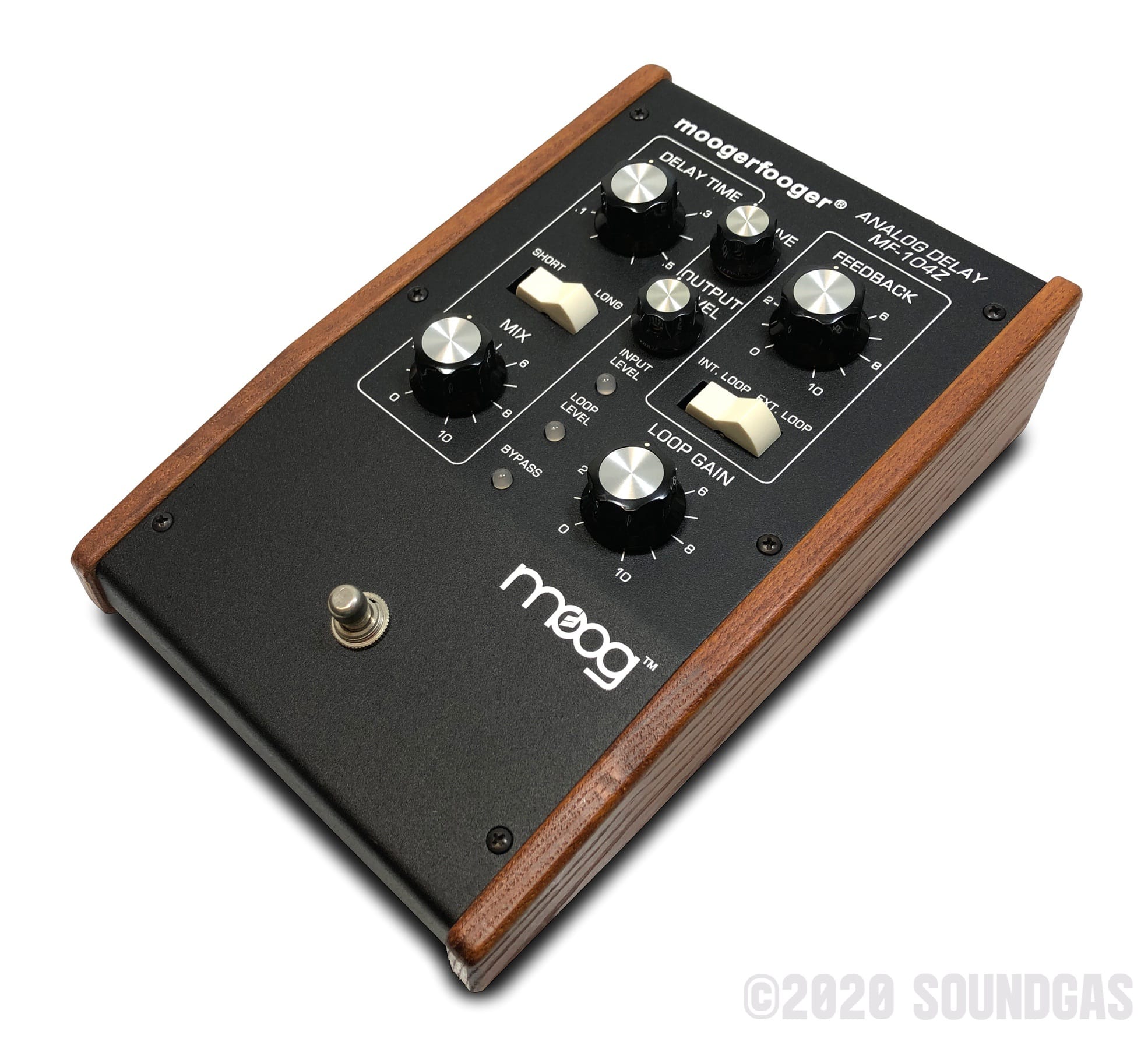

Moogerfooger Analog Delay MF-104Z

• Drive and Output Levels allow you to set-up the Z to match the type of signal you want to delay from low level signals (vocals, guitar) to strong signals (studio console output, drum machine). The Z is designed to work with them all.Delay time: from slightly less than 50 msec to slightly more than 1000 msec.


• Mix: Pot Control from completely Dry to completely Wet or anything in between.


• Feedback Control mixes a portion of the delayed signal with the signal from your instrument. Feedback control can generate a single echo, sustaining echoes, or echoes that build up in chaotic ways.


• Switchable Internal Loop / External Loop selects the feedback path. In the Internal Loop position the feedback path goes directly from the output of the delay back to the input. In the External Loop position the feedback path goes through the Loop Out Jack and the Loop In Jack. This gives you an opportunity to insert signal processing in the feedback path, thereby enabling processing of the echoes as they are generated. Very cool with another Moogerfooger (unbelievable with the MuRF).


• Loop Gain controls the signal level which is applied to the Loop In jack when the “External Loop” is on.

• Inputs: Audio In


• Feedback Amount, Delay Time, and Wet/Dry Mix each of these can be controlled from a Moog Expression Pedal thru individual jacks on the back of the Z.

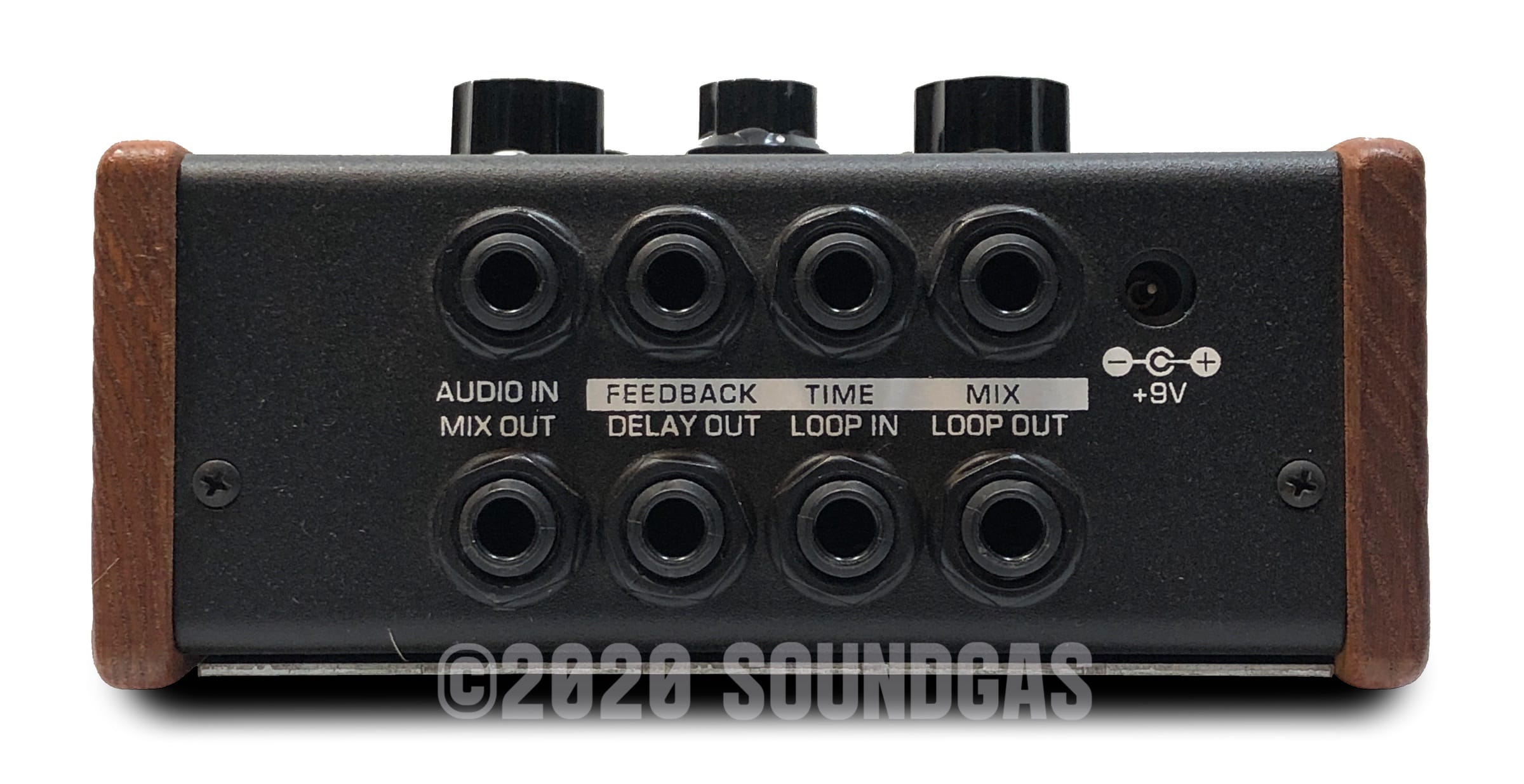

• Outputs: Mix Out and Delay Out – the Output Level on the front panel adjusts the levels of the direct and delayed signals that appear at the Mix Out and Delay Out.


• AND.. Loop In and Loop Out as previously mentioned.
