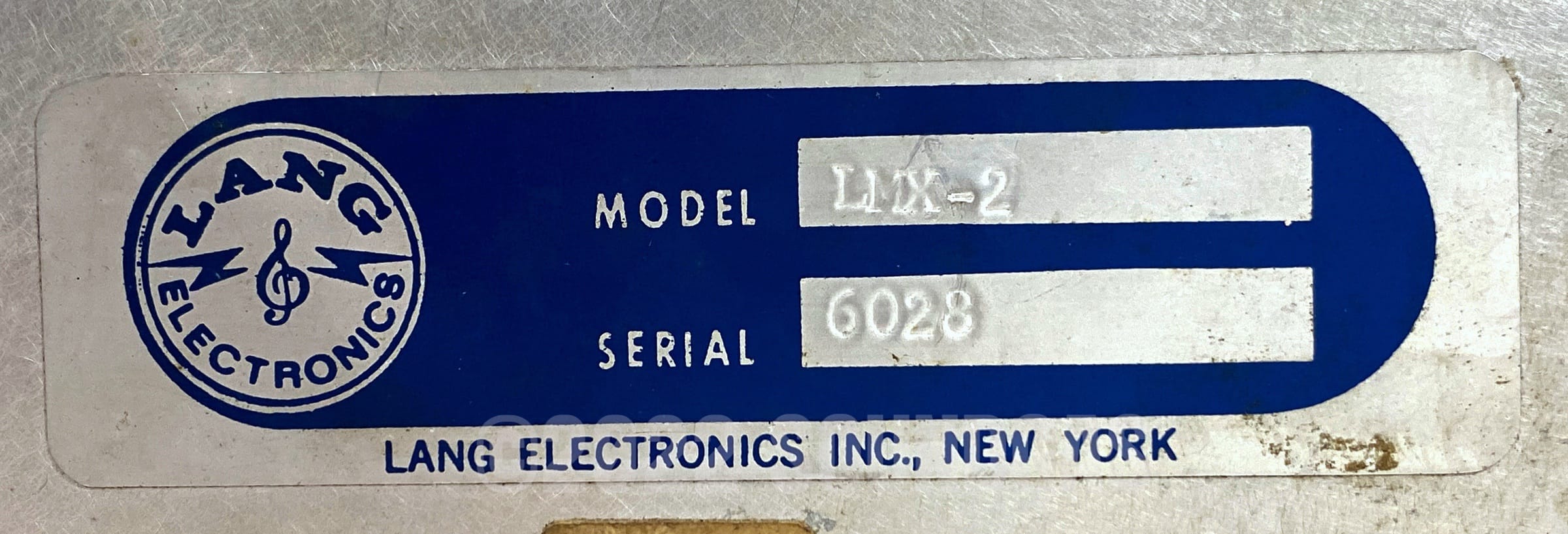

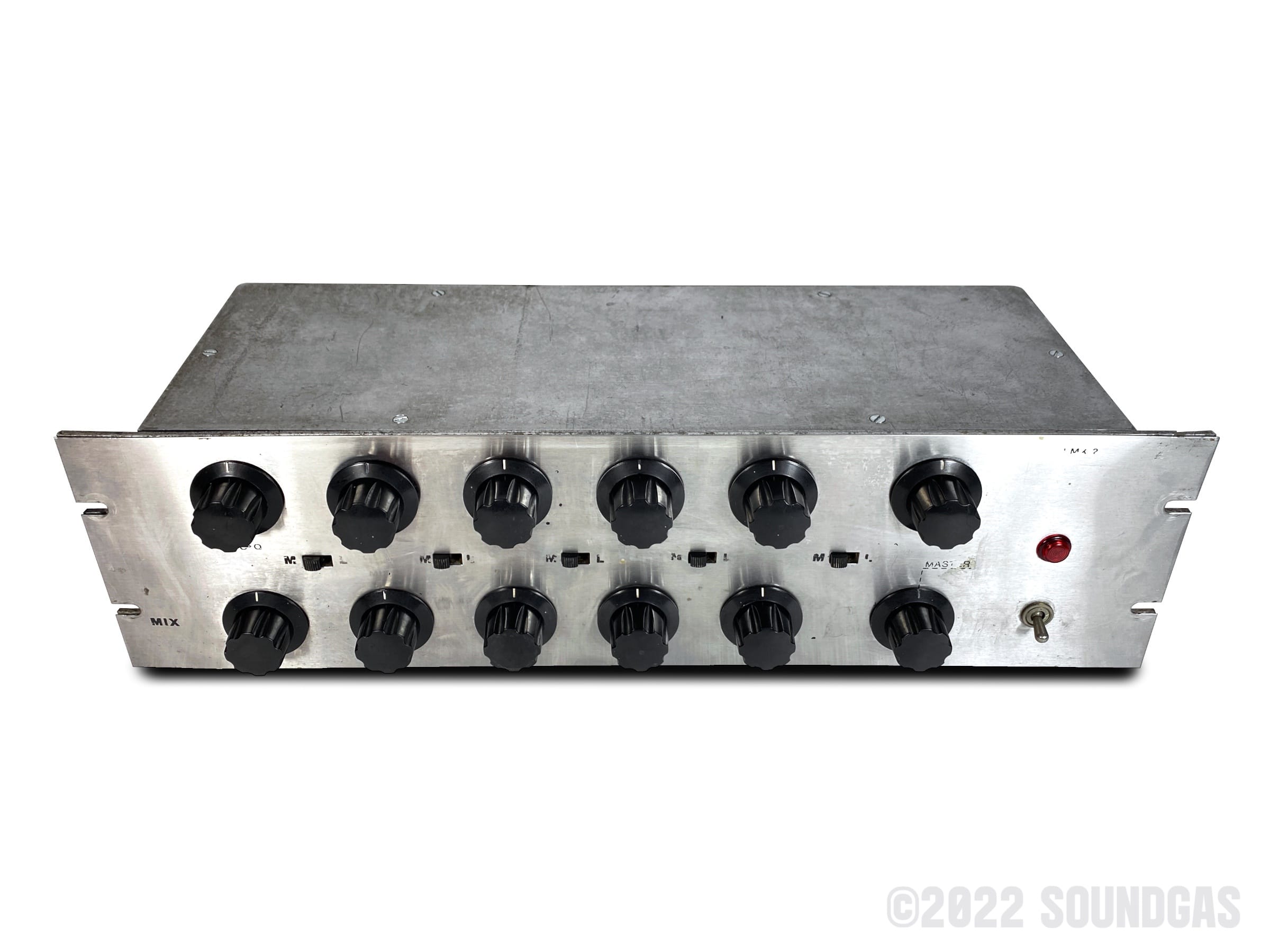

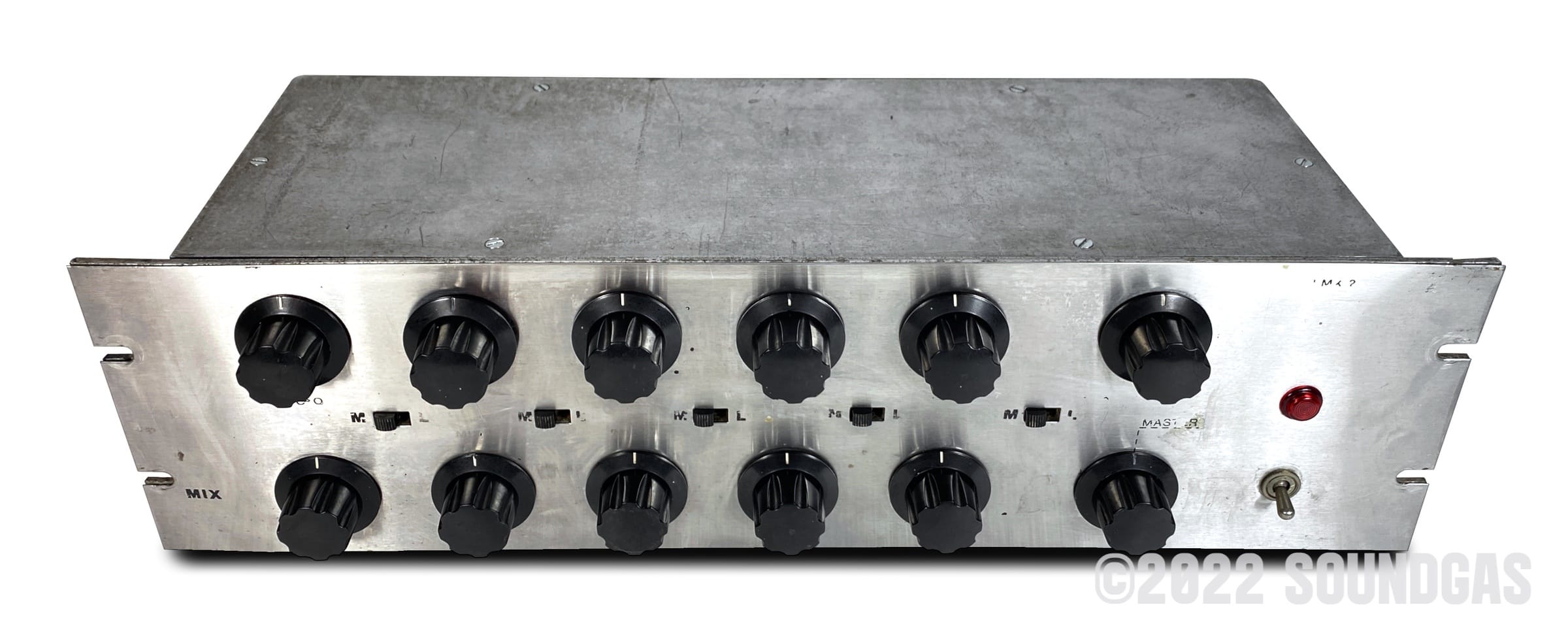

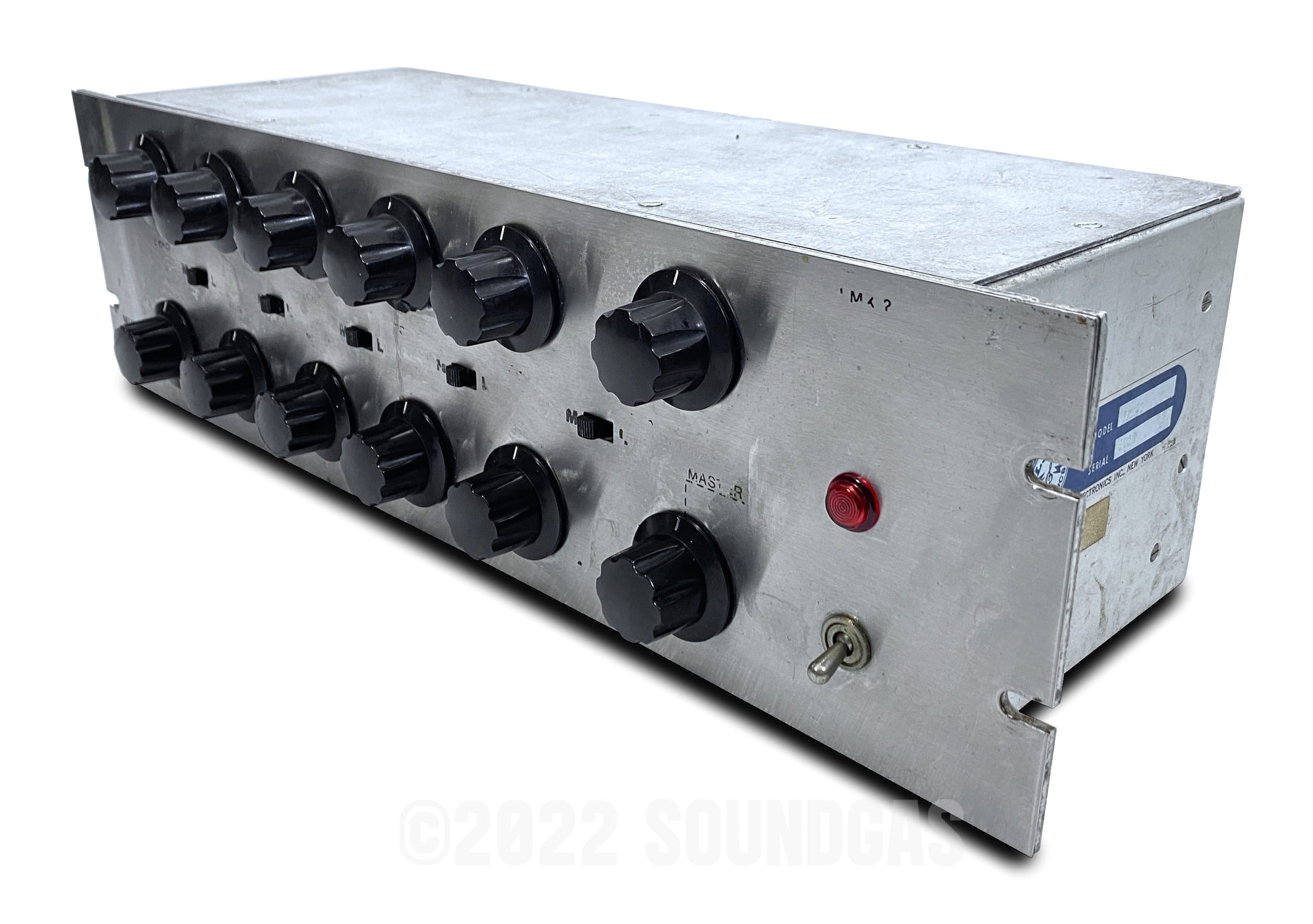

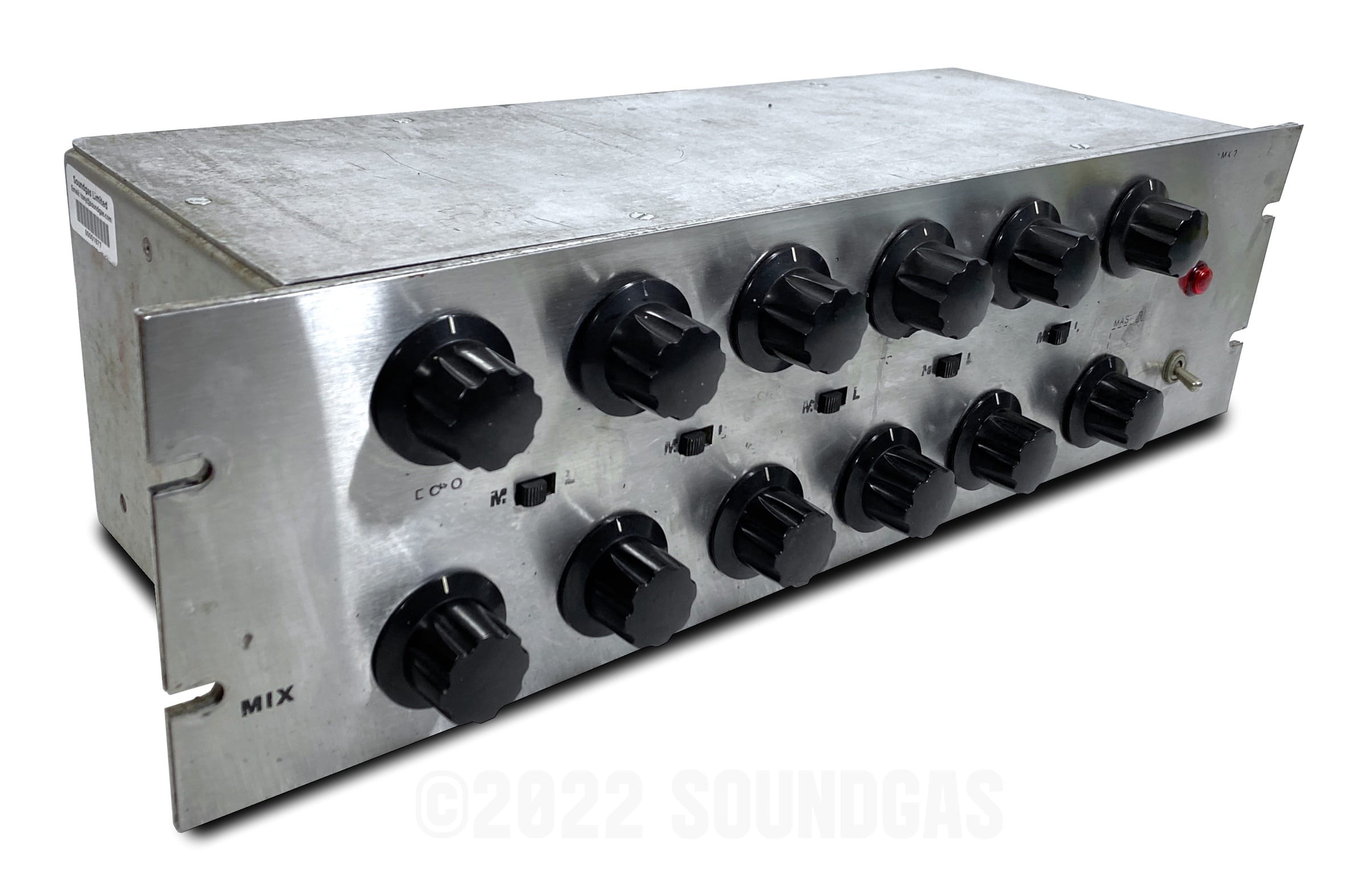

Lang LMX-2 solid state mixer for sale.
Uncommon vintage US-made mixer with four channels of mic preamps.
Note that these were modular/customisable: this one has four channels with mic preamp boards and the fifth is line only.
Controls are:
Freshly serviced by our techs, work completed includes:

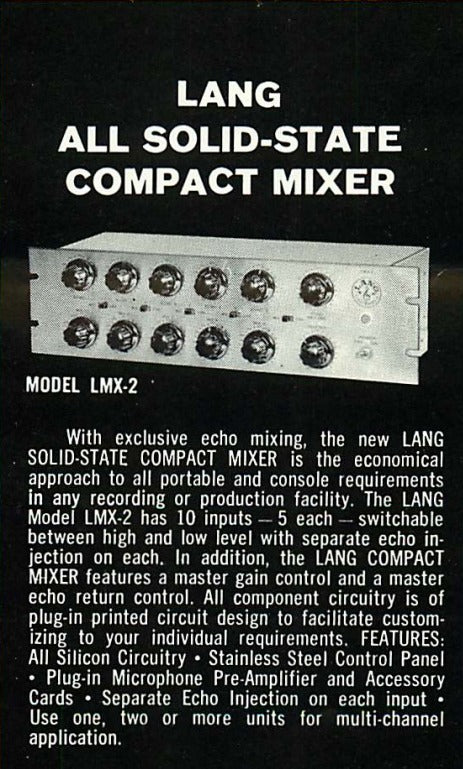

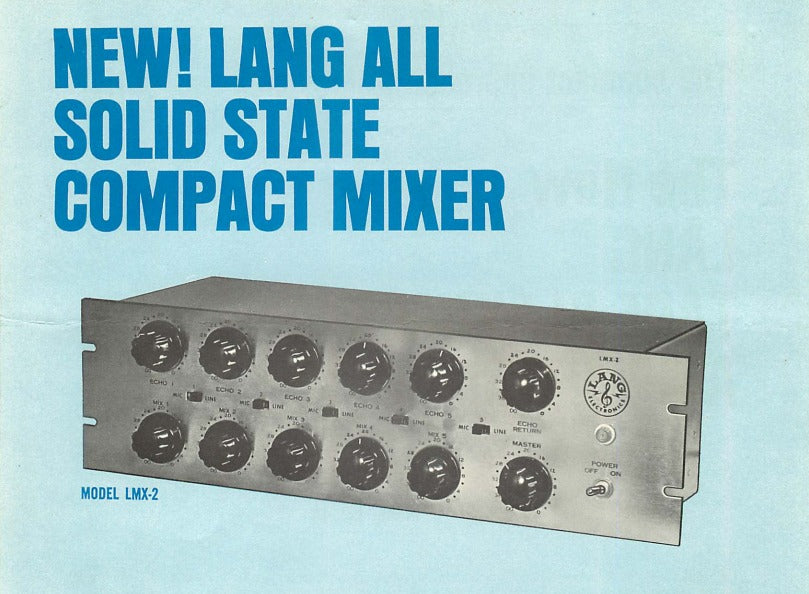

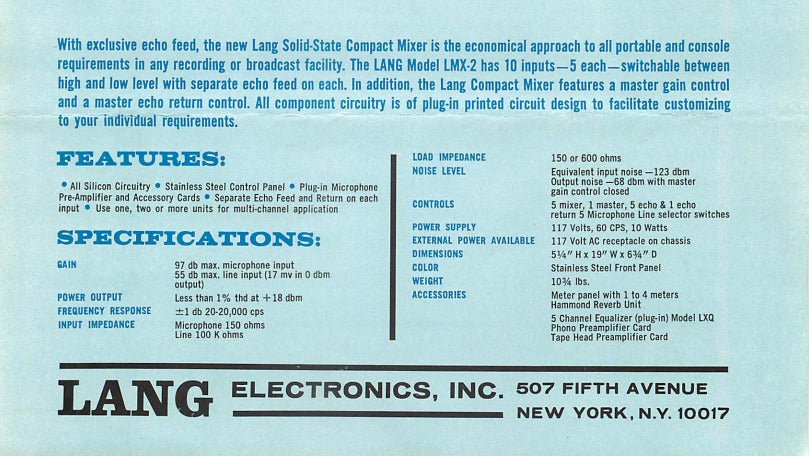

The images of the original brochure and spec are from historyofrecording.com. It also features in this original Lang Electronics Catalogue which is (of course) found on the peerless Preservation Sound site.
Uncommon vintage US-made mixer with four channels of mic preamps.
Note that these were modular/customisable: this one has four channels with mic preamp boards and the fifth is line only.

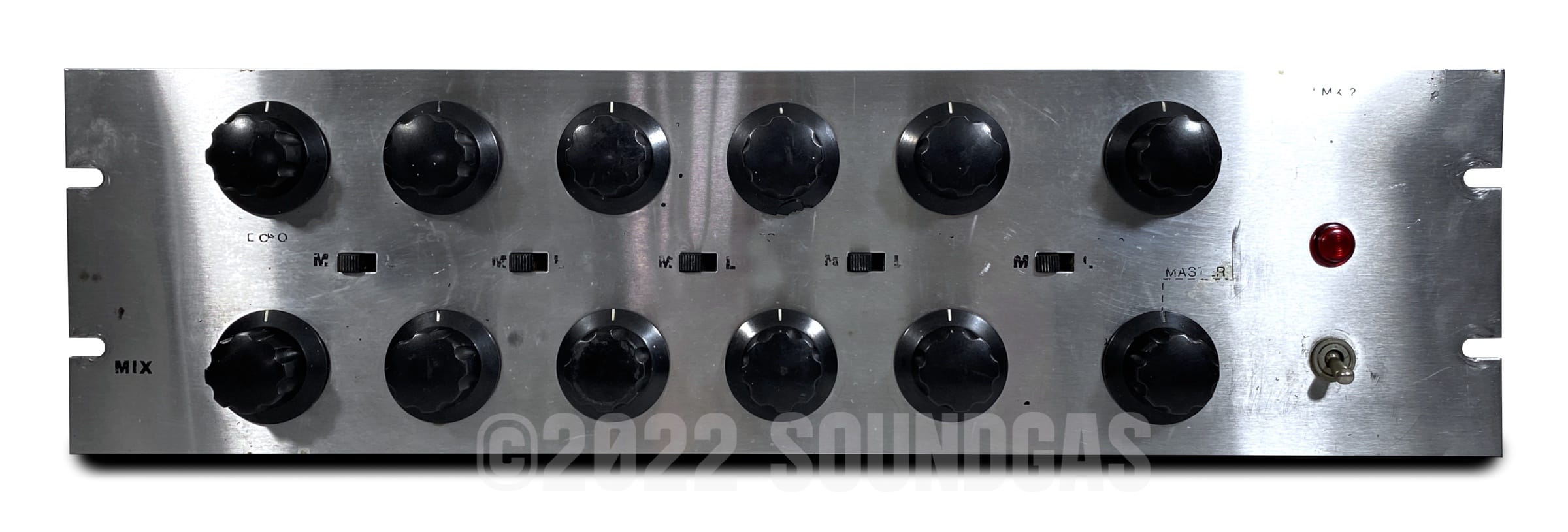

Controls are:
- Top row: 5 x channel echo send level plus echo return level
- Switches: line/mic
- Bottom row: 5 x channel volume plus master volume
Freshly serviced by our techs, work completed includes:
- Full electrolytic re-cap
- PSU checked
- AC outlet disconnected and blanking plate made
- Earthed and mains cable replaced
- Output transformer rivets replaced with nuts and bolts
- Transistor replaced on line output board
- Transistor replaced on line board

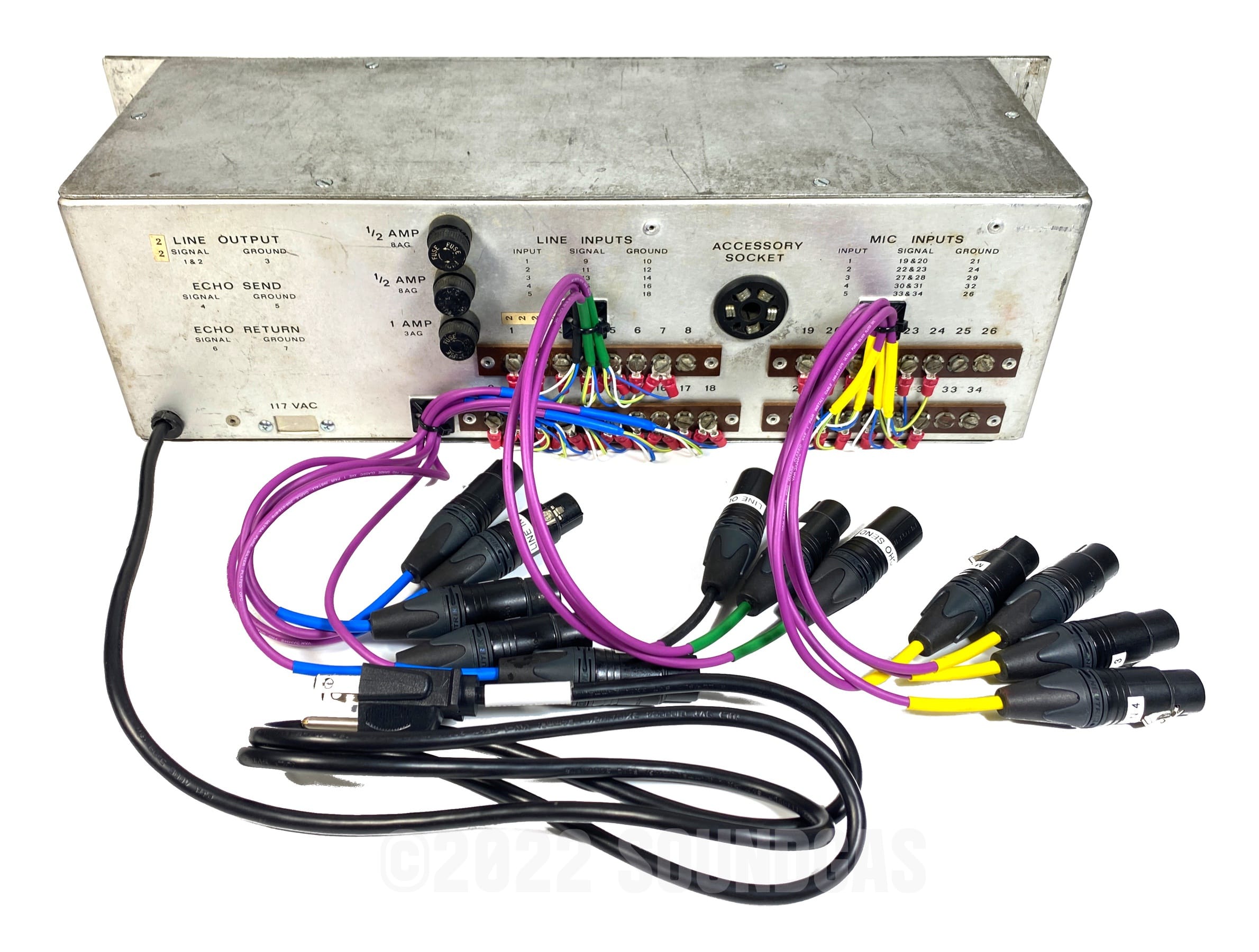

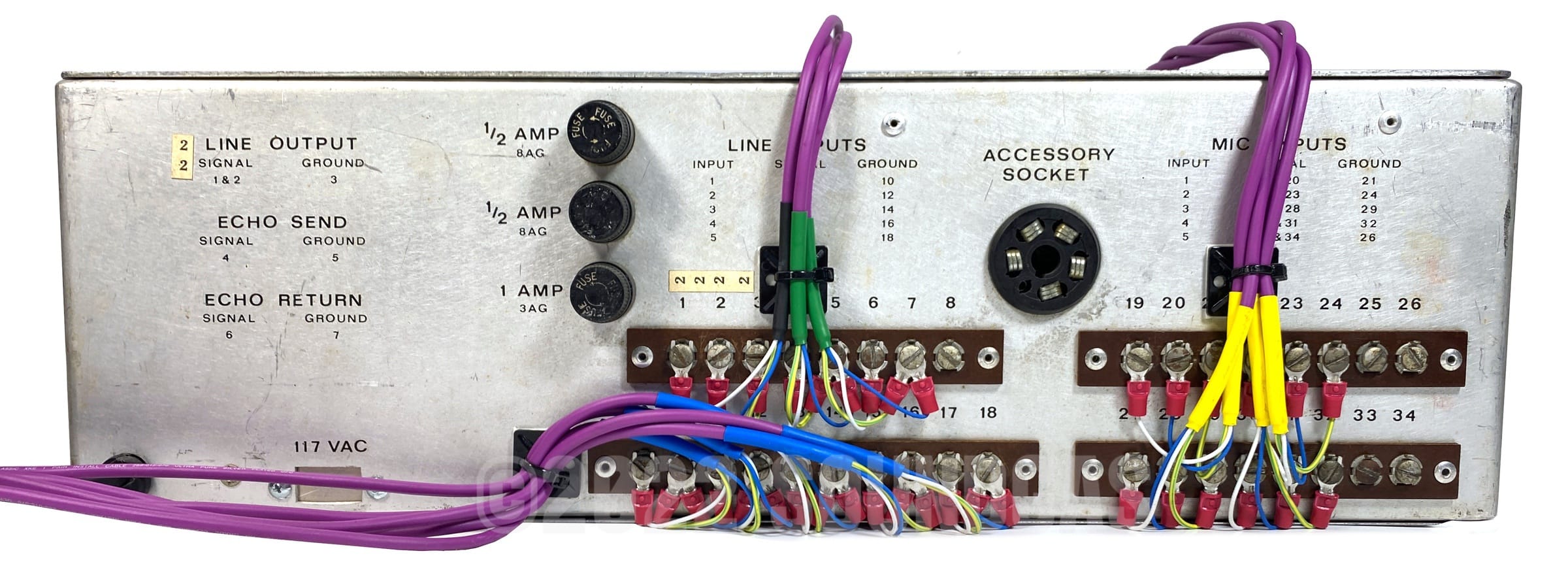

- Pigtails made up for I/O
- Bottom plate was missing - replacement made
The images of the original brochure and spec are from historyofrecording.com. It also features in this original Lang Electronics Catalogue which is (of course) found on the peerless Preservation Sound site.
