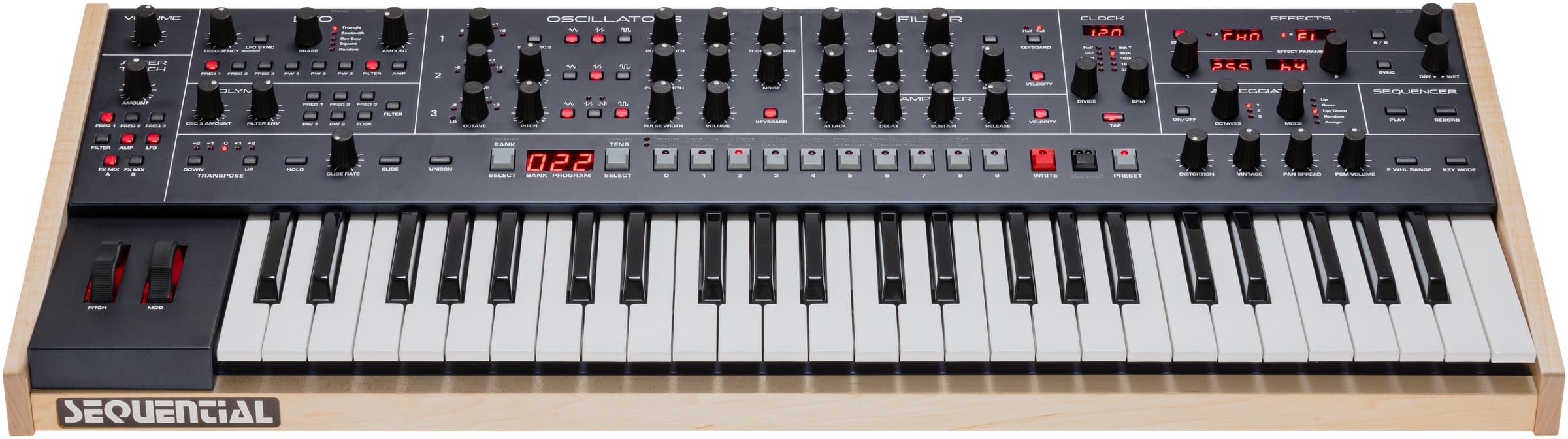

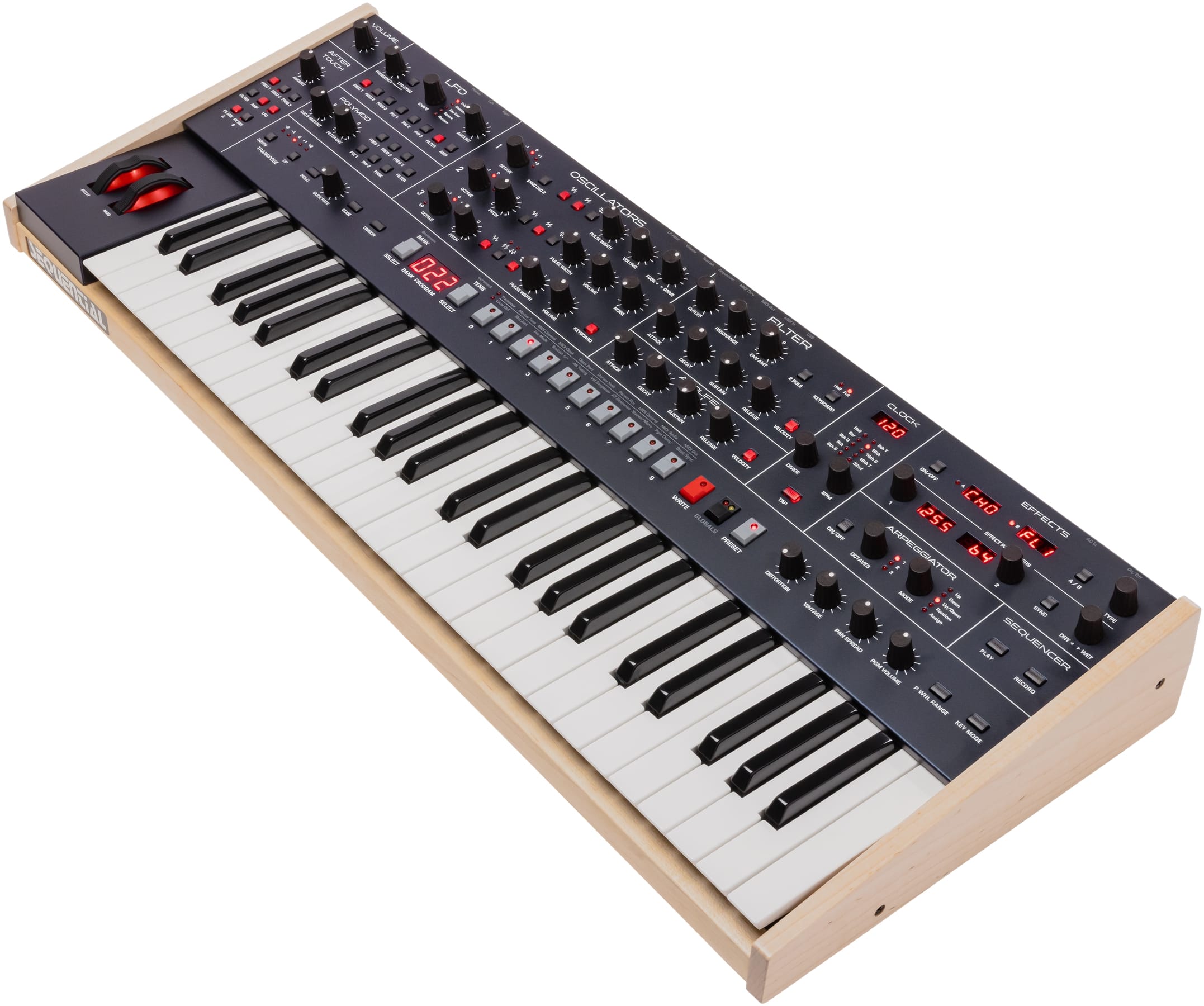

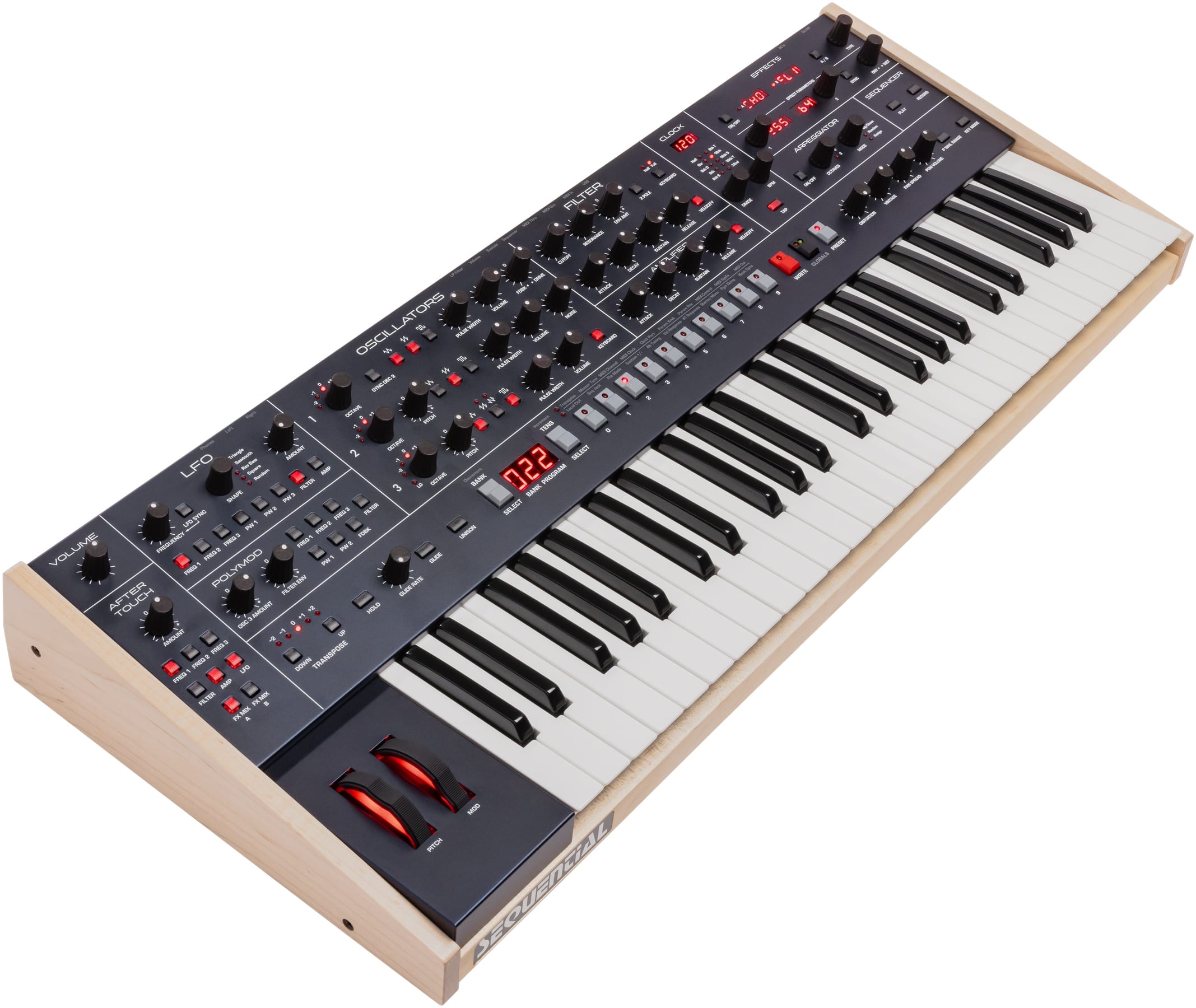

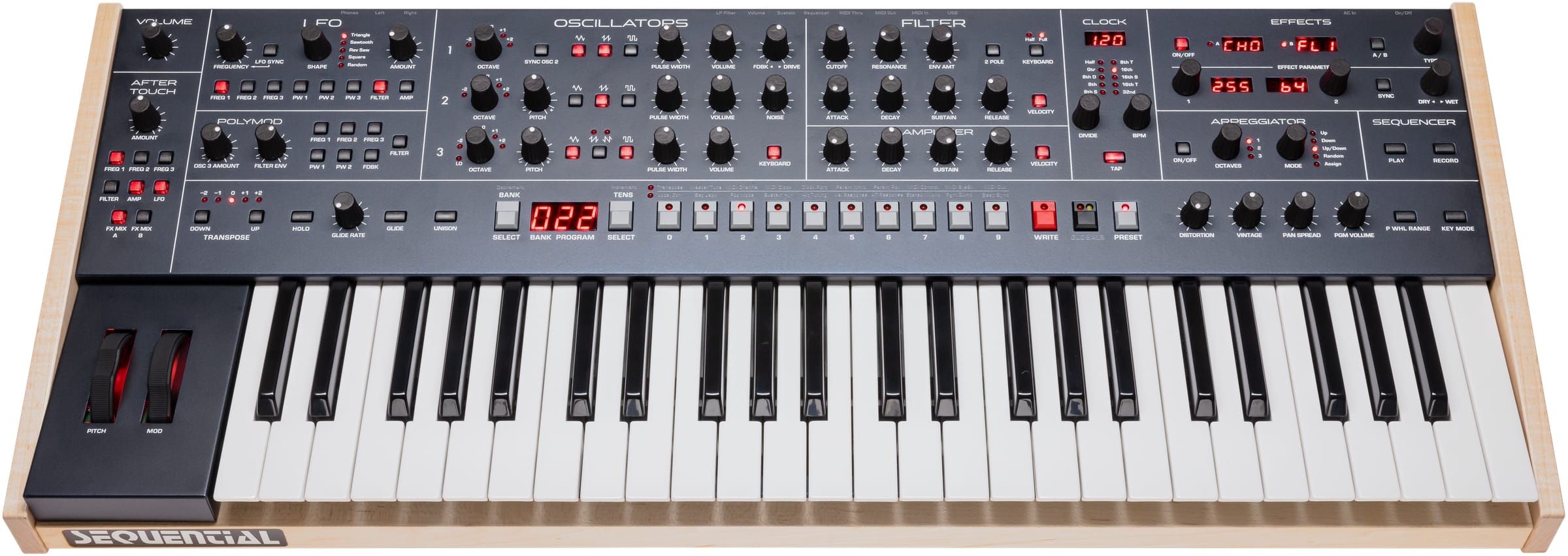

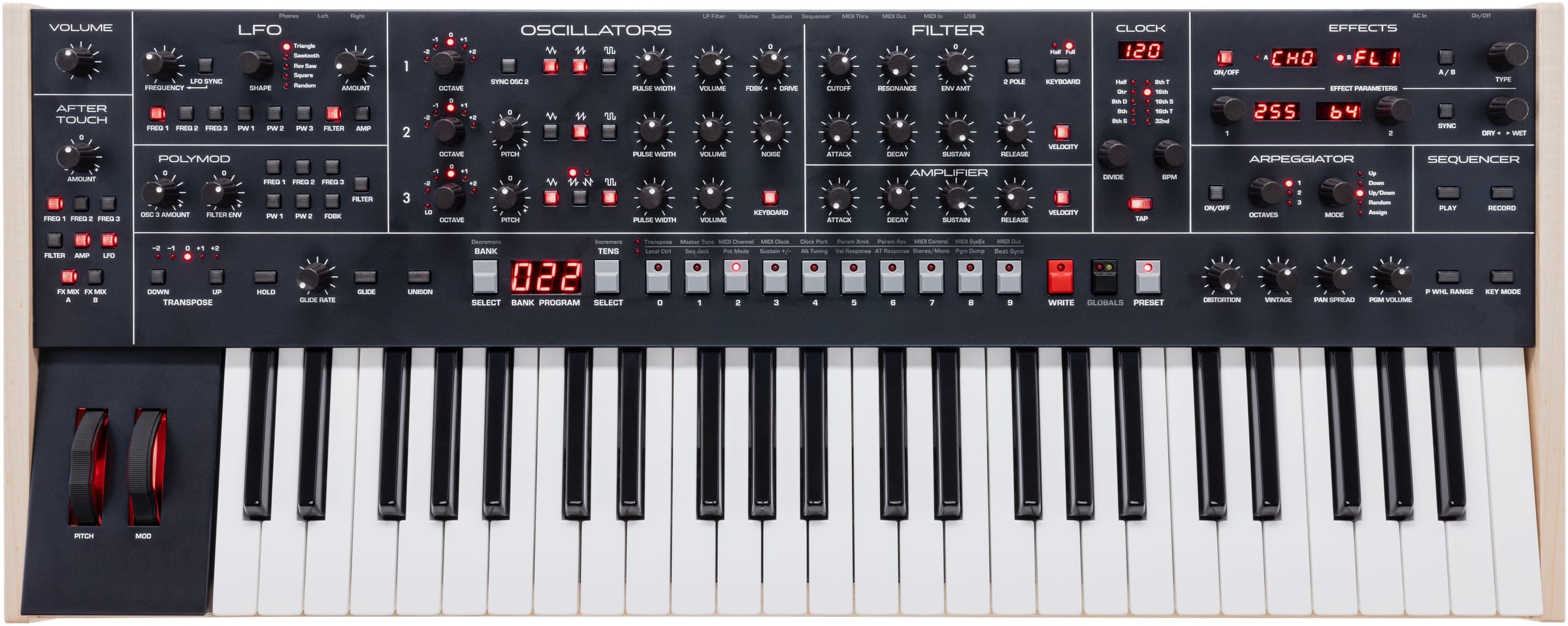

Sequential Trigon-6

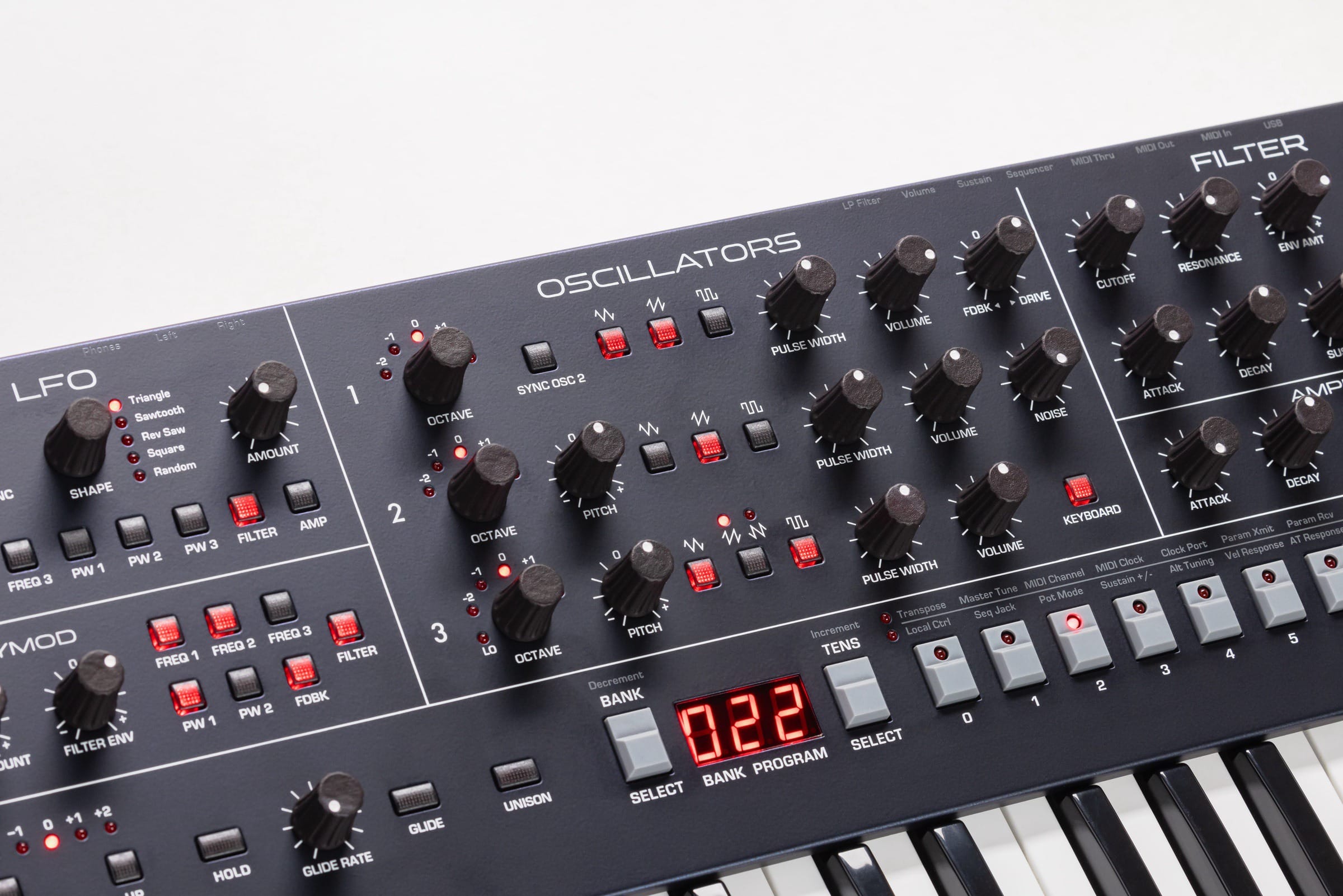

• Three discrete VCOs per voice


• Simultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulse


• Pulse width per oscillator


• Hard sync: oscillator 1 syncs to oscillator 2


• Low frequency mode (oscillator 3)


• Keyboard tracking on/off (oscillator 3)


• Oscillator feedback and drive controls for increased signal saturation


• White Noise source


• Keyboard pitch tracking on/off

• Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice


• Filter can be driven into self-oscillation with the Resonance control


• Bi-polar filter envelope amount


• Velocity modulation of envelope amount


• Keyboard tracking: off, half, full

• Four-stage (ADSR) envelope generator


• Velocity modulation of envelope amount

• Four-stage (ADSR) envelope generator


• Velocity modulation of envelope amount

• Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)


• LFO sync


• Initial amount


• Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)

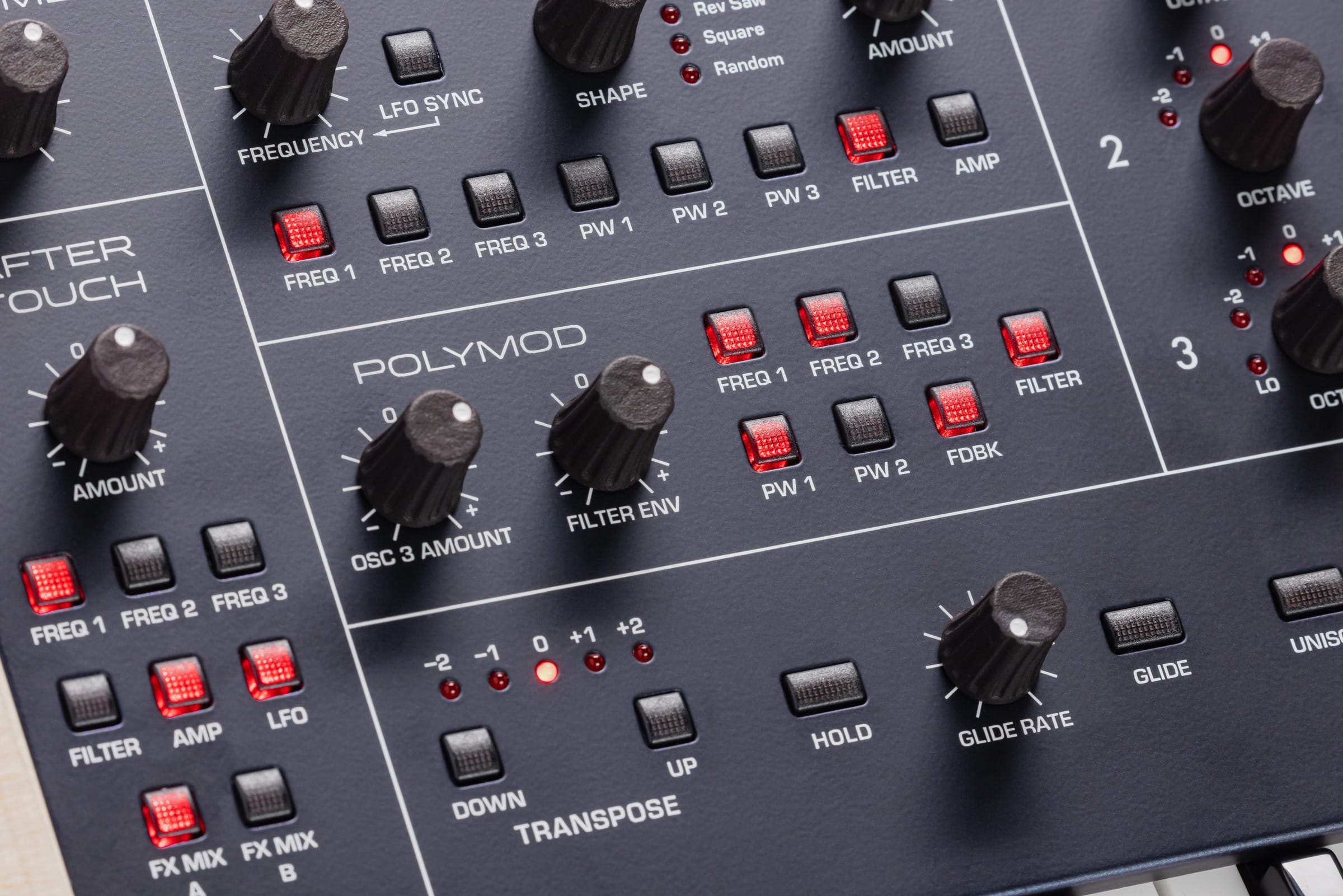

• Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)


• Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount

• Recreates vintage synth characteristics by adding voice-to voice variations in component behavior

• Source: channel (mono) aftertouch with bi-polar amount


• Destinations: Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, LFO amount, amplifier envelope amount, filter envelope amount, FX mix A, FX mix B

• Master clock with tap tempo


• BPM control and display


• MIDI clock sync

• One, two, or three octave range


• Up, down, up/down, random, and assign modes


• Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note

• Polyphonic step sequencer with up to 64 steps and rests

• Stereo analog distortion


• Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulator


• Delay sync


• True bypass maintains fully analog signal path when digital effects are off

• Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouch


• Backlit pitch and mod wheels


• Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)


• Transpose controls for an 8-octave range


• Hold switch latches held notes on


• Polyphonic portamento


• Unison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modes


• Preset switch: when on, the front panel is live — what you see is what you hear

• 500 user and 500 factory programs in 10 banks of 100 programs each


• Direct program access, including single-button access to the current set of 10 programs

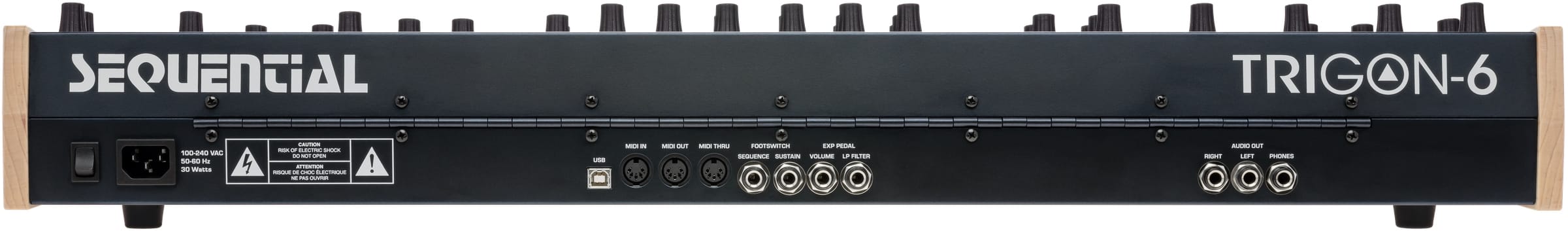

• Left/mono and right audio outputs (2 x 1/4” phone jack)


• Headphone output (stereo, 1/4” phone jack)


• MIDI in, out, and thru ports


• USB for bidirectional MIDI communication


• Filter cutoff expression pedal input


• Volume expression pedal input


• Sustain footswitch input


• Sequencer start/stop footswitch input

• IEC AC power inlet for internal power supply


• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption

• 31.8” L x 12.7” W x 4.6″ H (80.7 cm x 32.3 cm x 11.7 cm)


• 20 lbs (9.5 kg)
