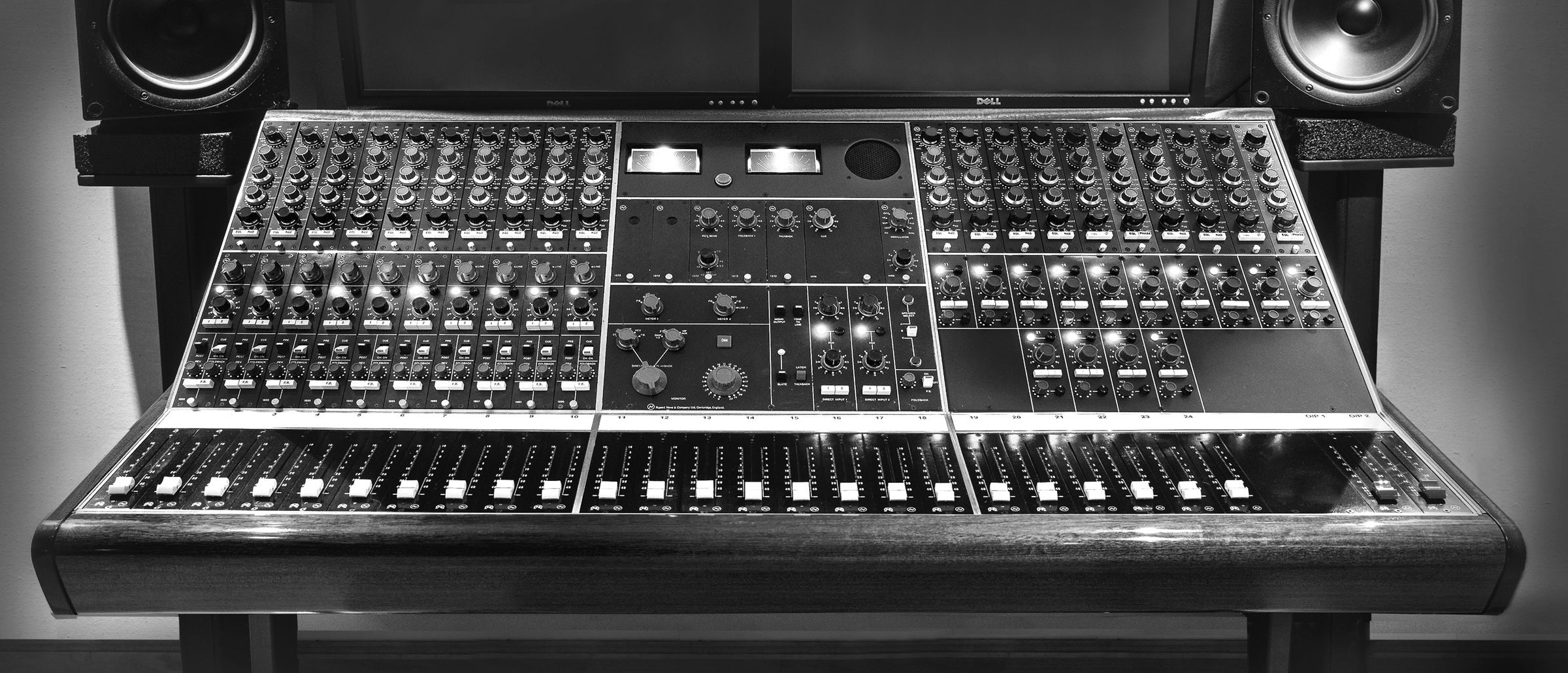

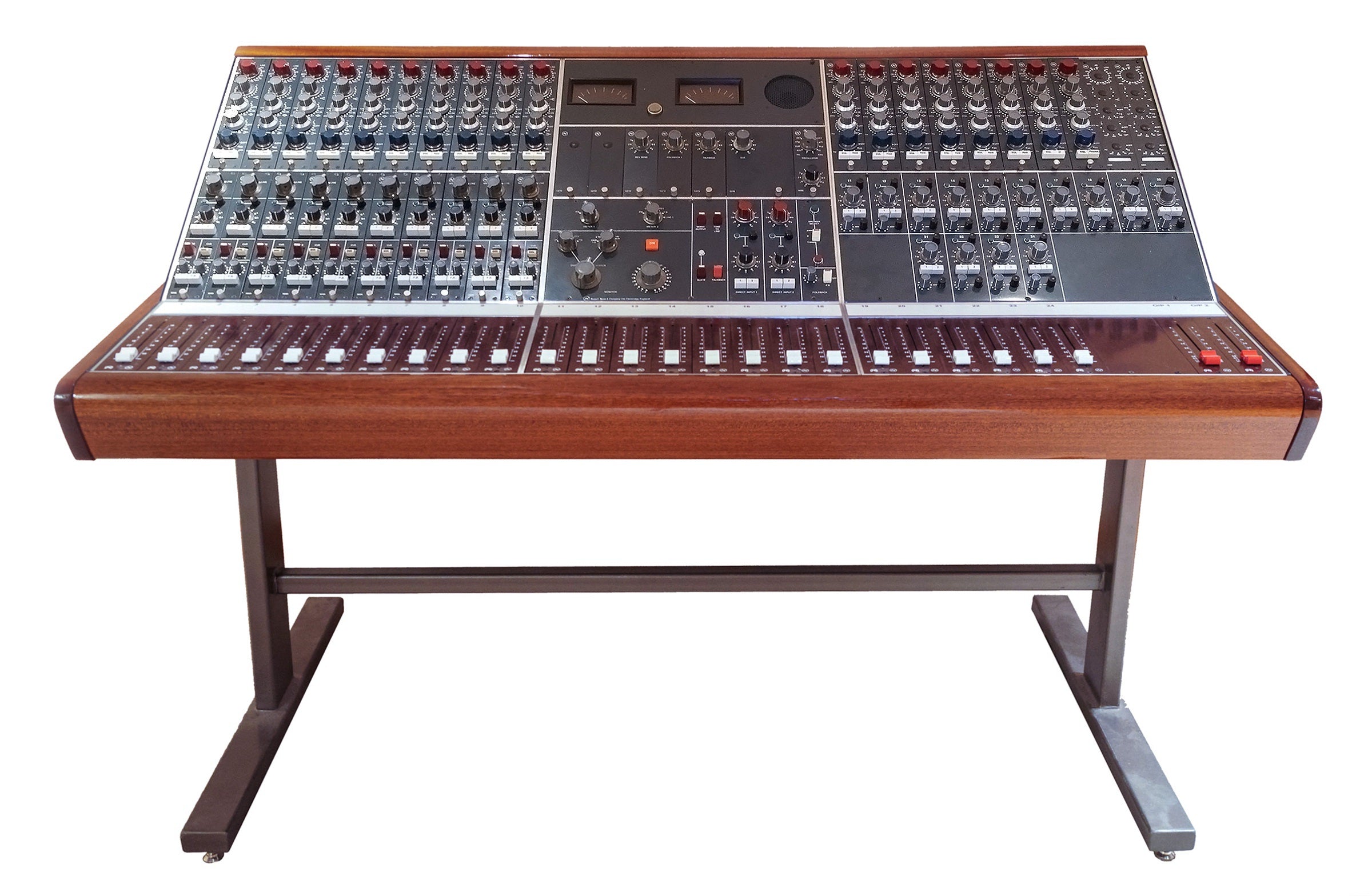

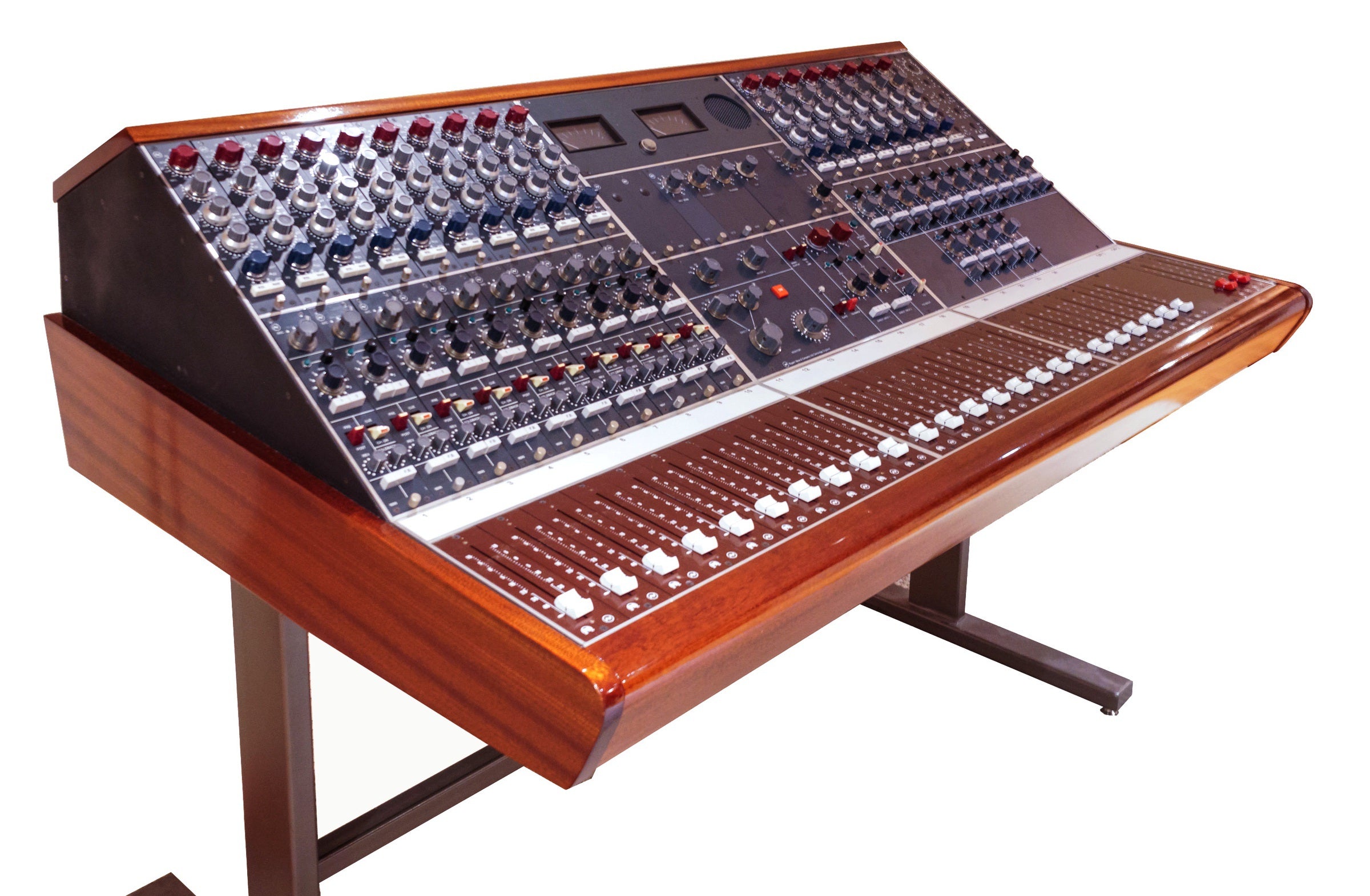

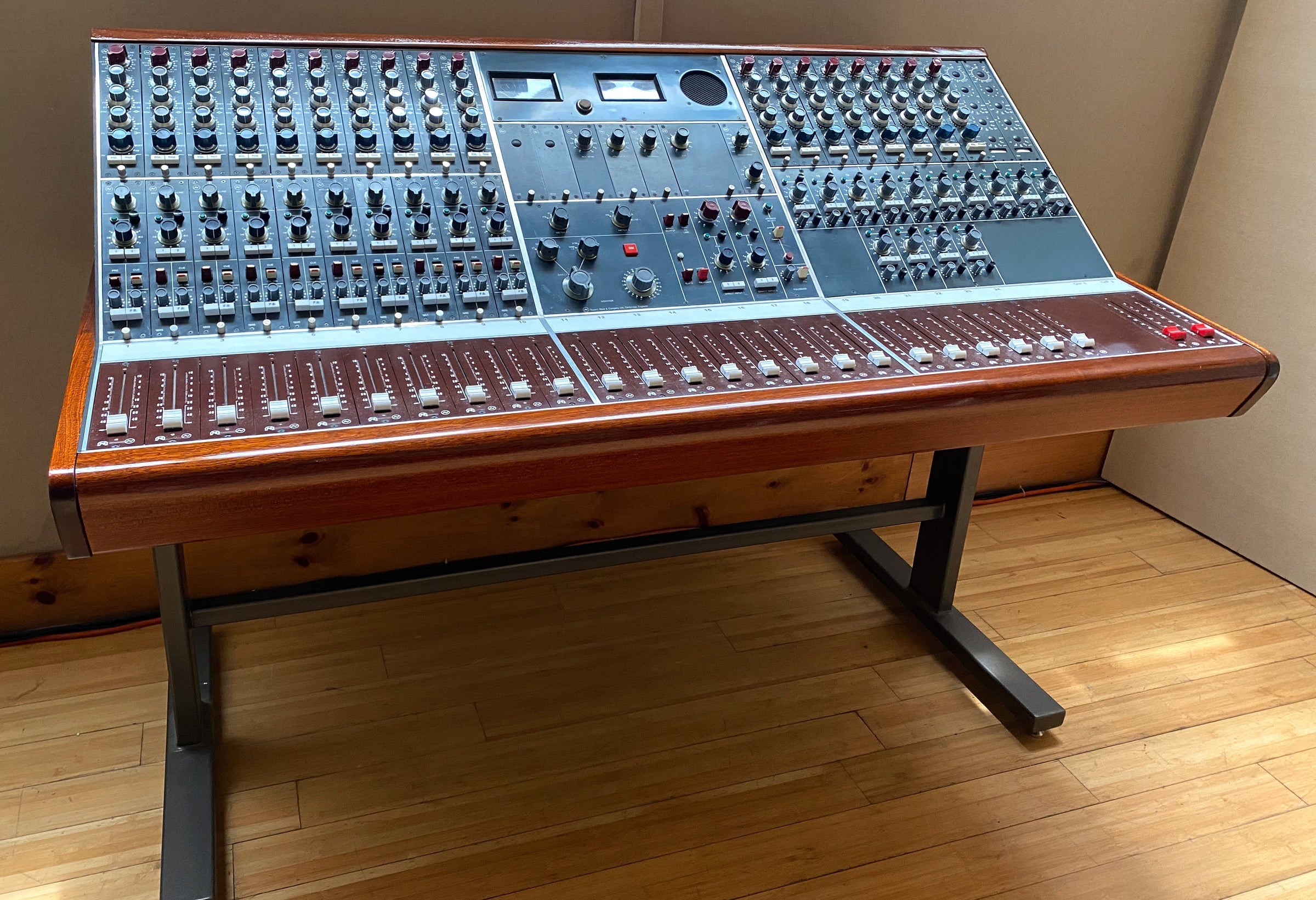

Neve BCM10 (Custom 20 Channel)

Custom Vintage Neve BCM-10 expanded to BCM20 for sale. Stunning console that offers vintage Neve sound without many of the usual technical headaches.

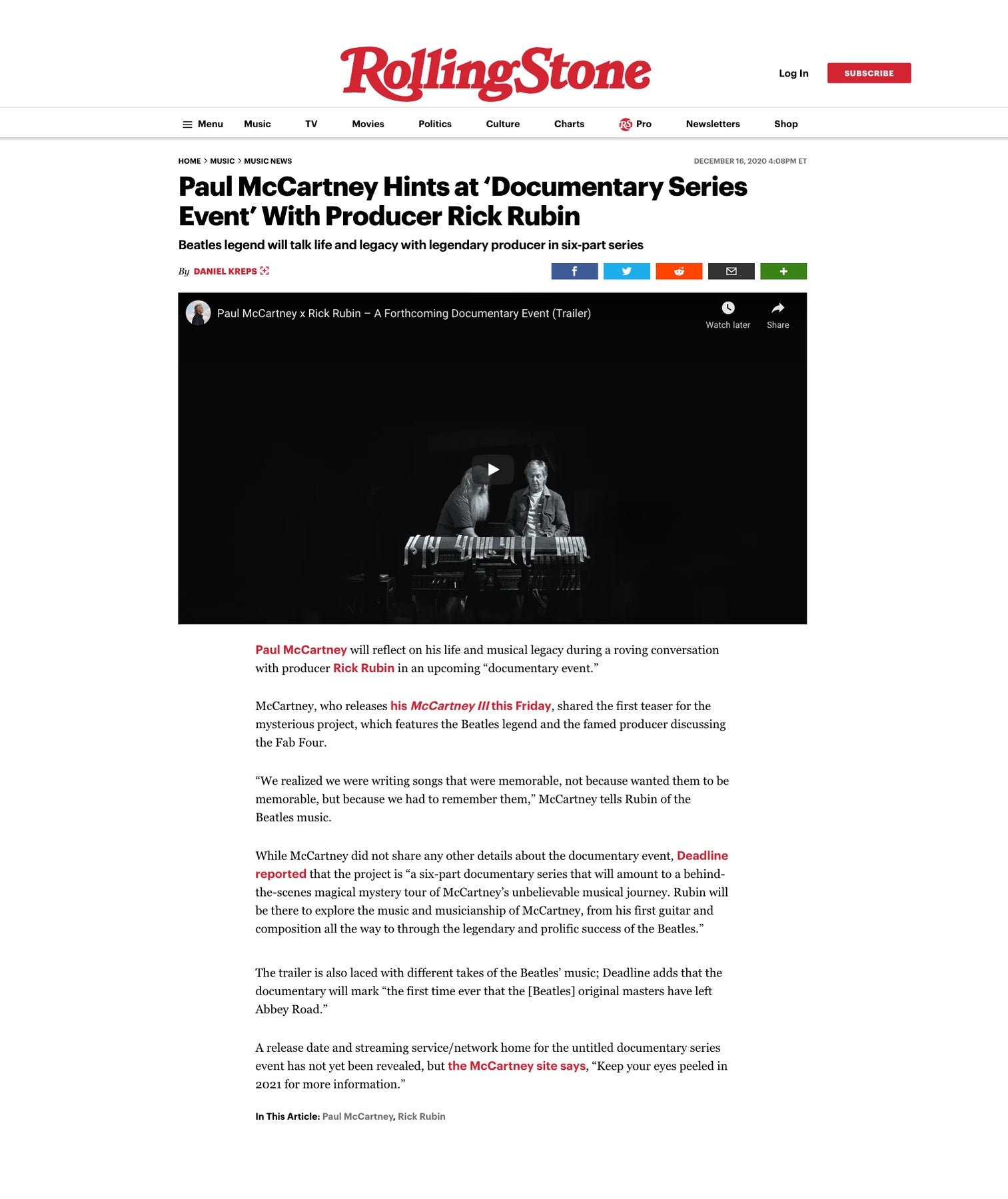

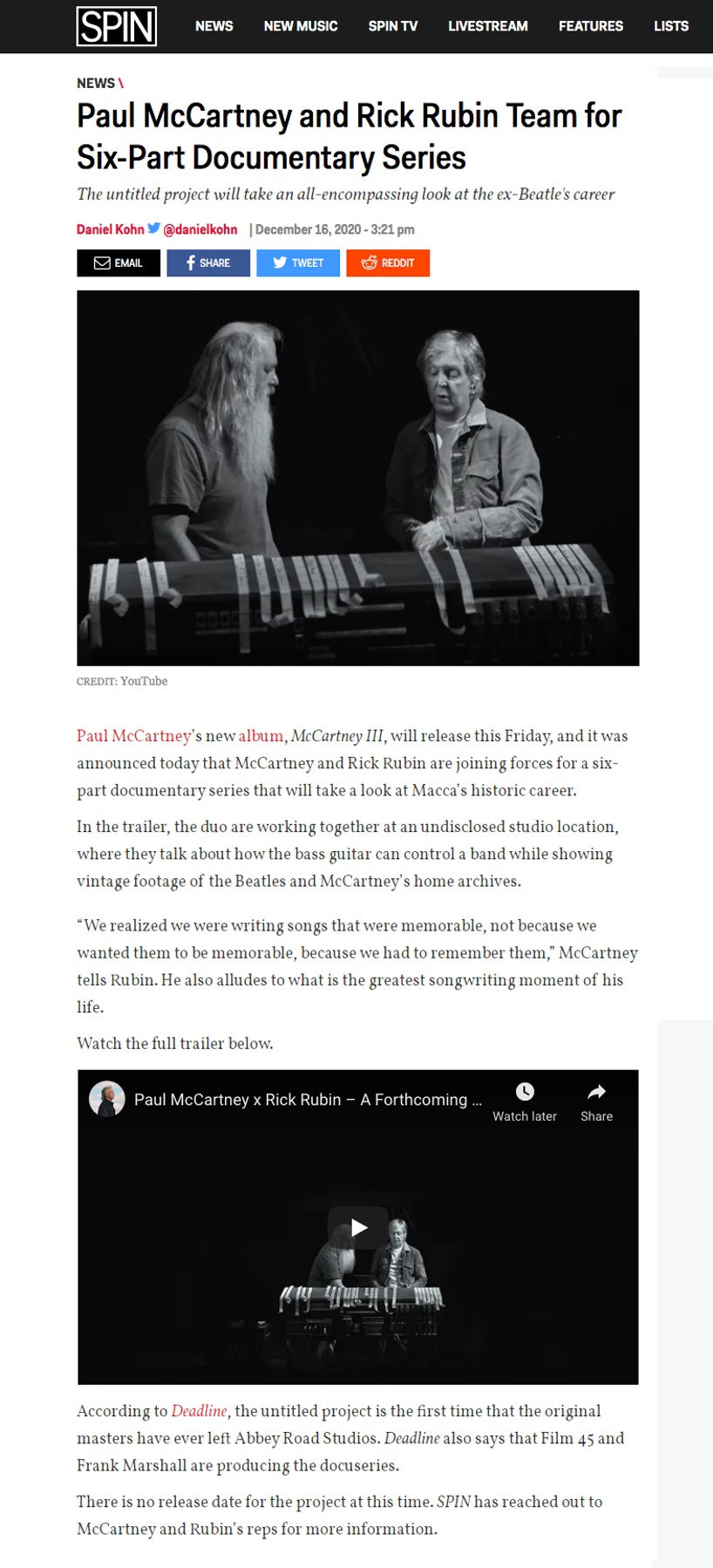

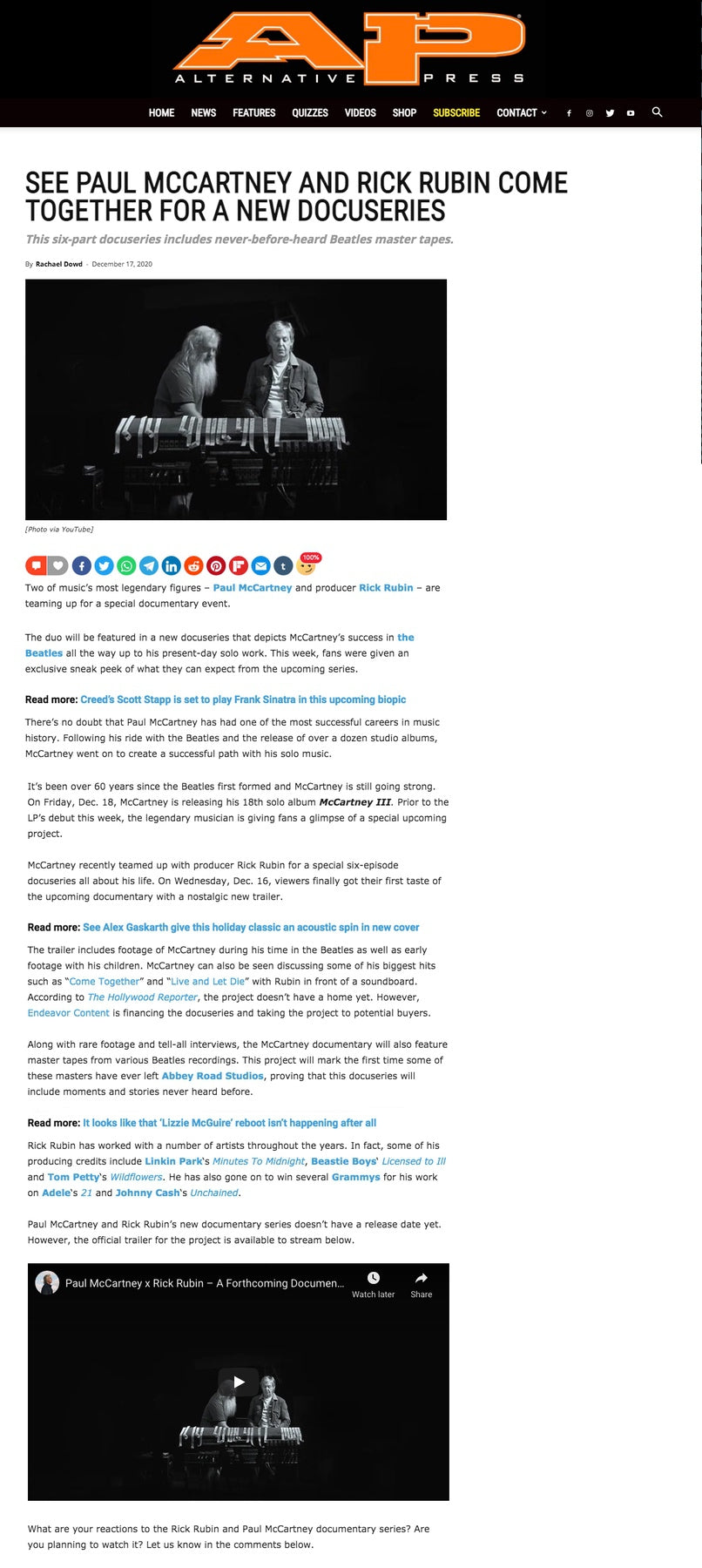

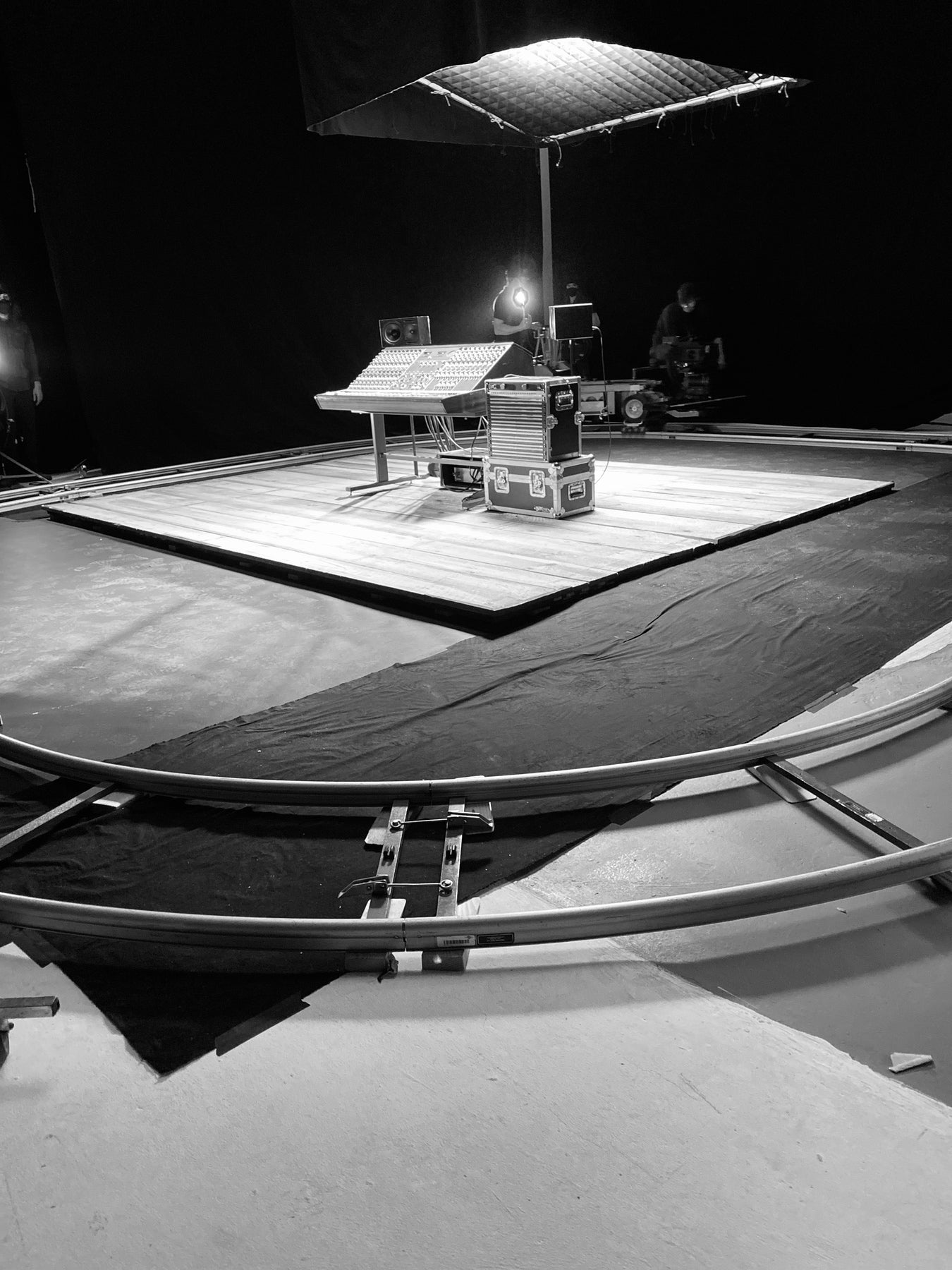

As seen in Hulu/Disney+ documentary McCartney 3,2,1 with Paul McCartney and Rick Rubin.

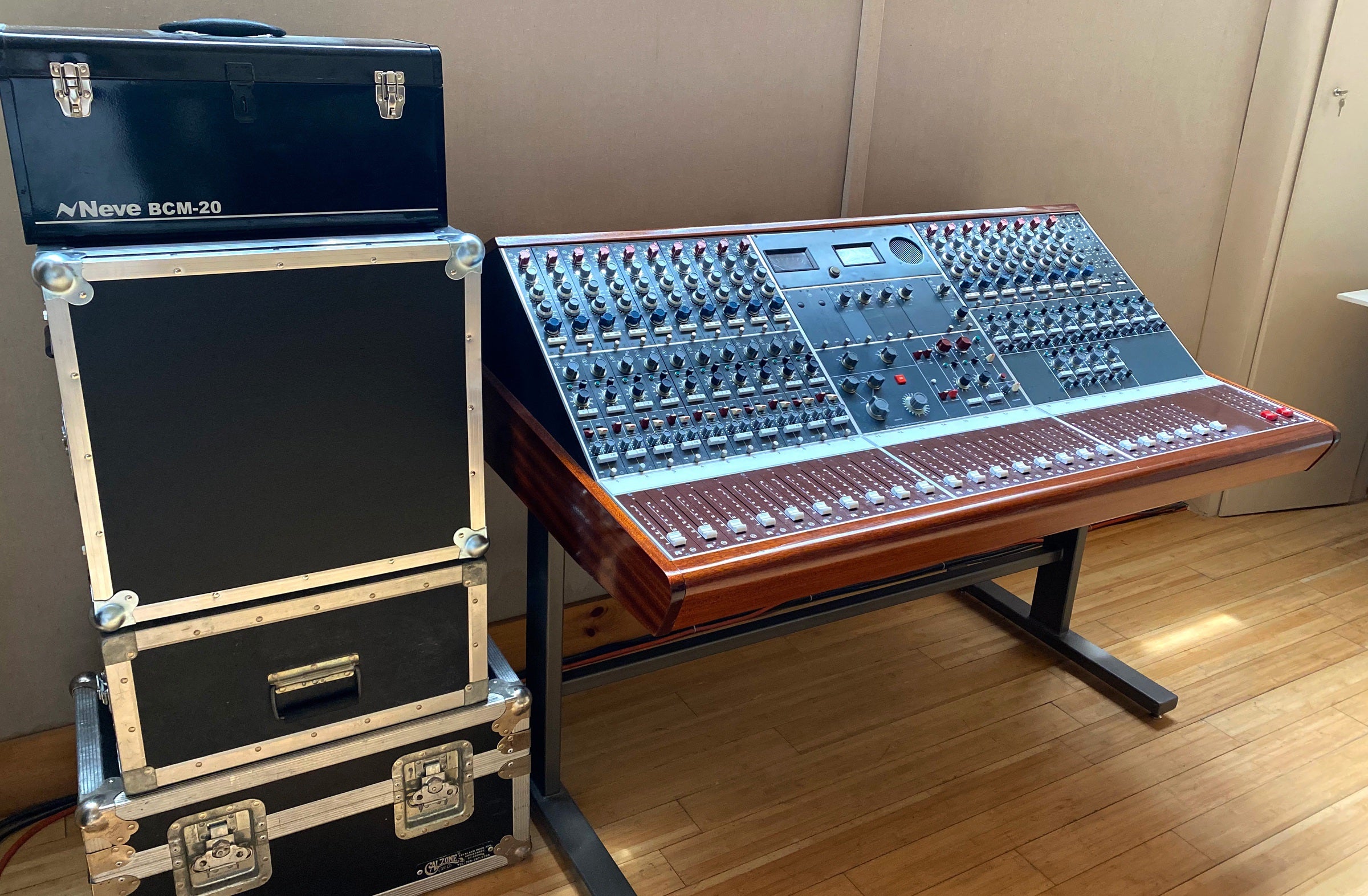

Full frame off restoration expanded and modified vintage Neve BCM10 featuring a mix of 18 1073 Neve CV Classic Reissue; 5 Neve 1272 and 3 BAE 1272. The full EDAC patchbay supplied with this console means it's as plug and play as you could wish for (and must've cost a few tens of thousands alone).

This console is located in the USA and is a broker sale: we can assist with arranging transportation if required. Please email Tony for more details.

Full spec:

• 20 Mic Inputs
• 26 Line Returns
• 2 Bus
• 2 Aux Sends (ch 1-10)
• 1 Aux Send (ch 11-20)
• Channel Inserts (ch 11-20)
• Transformer Direct Outputs on all channels

Components

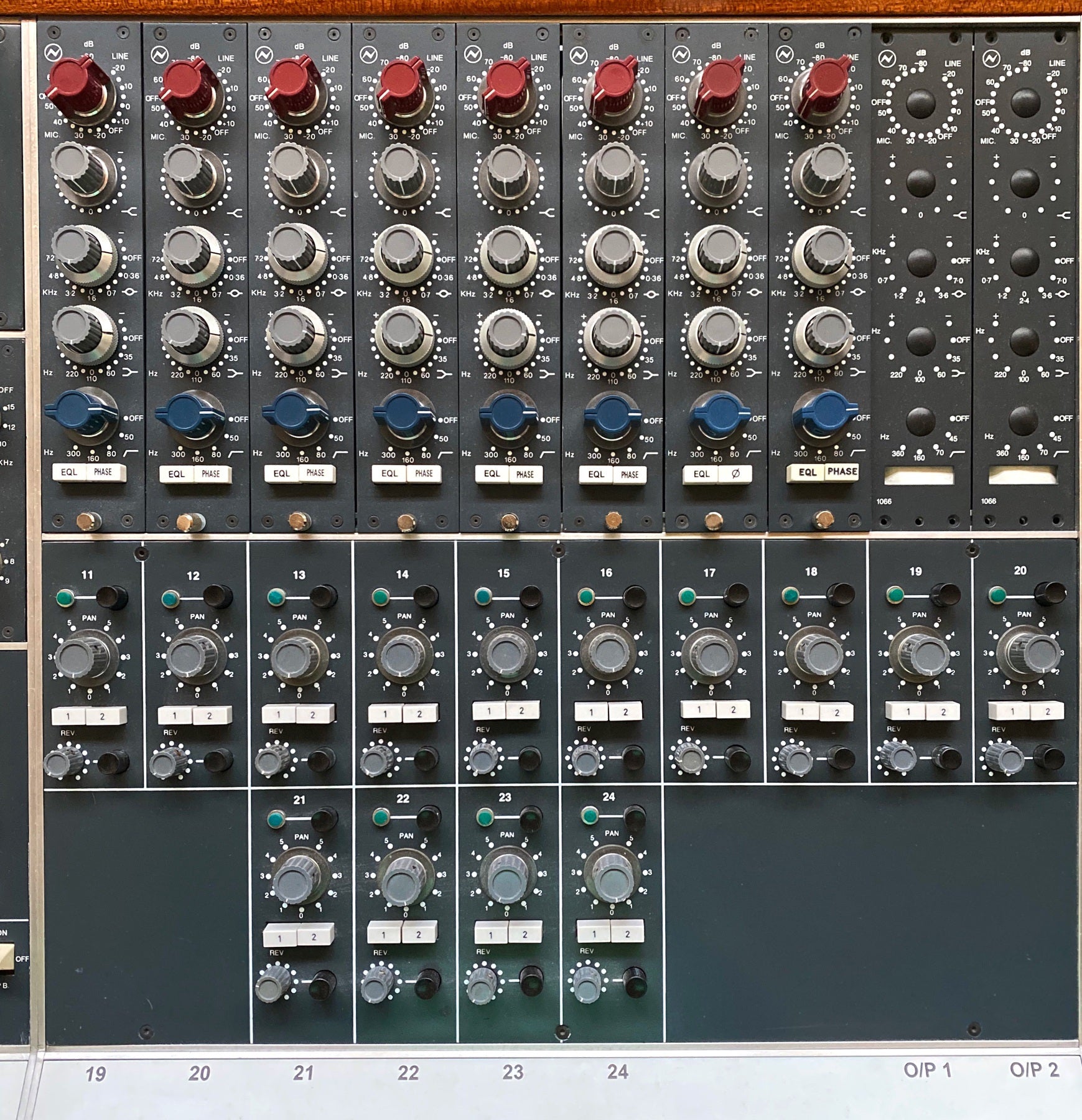

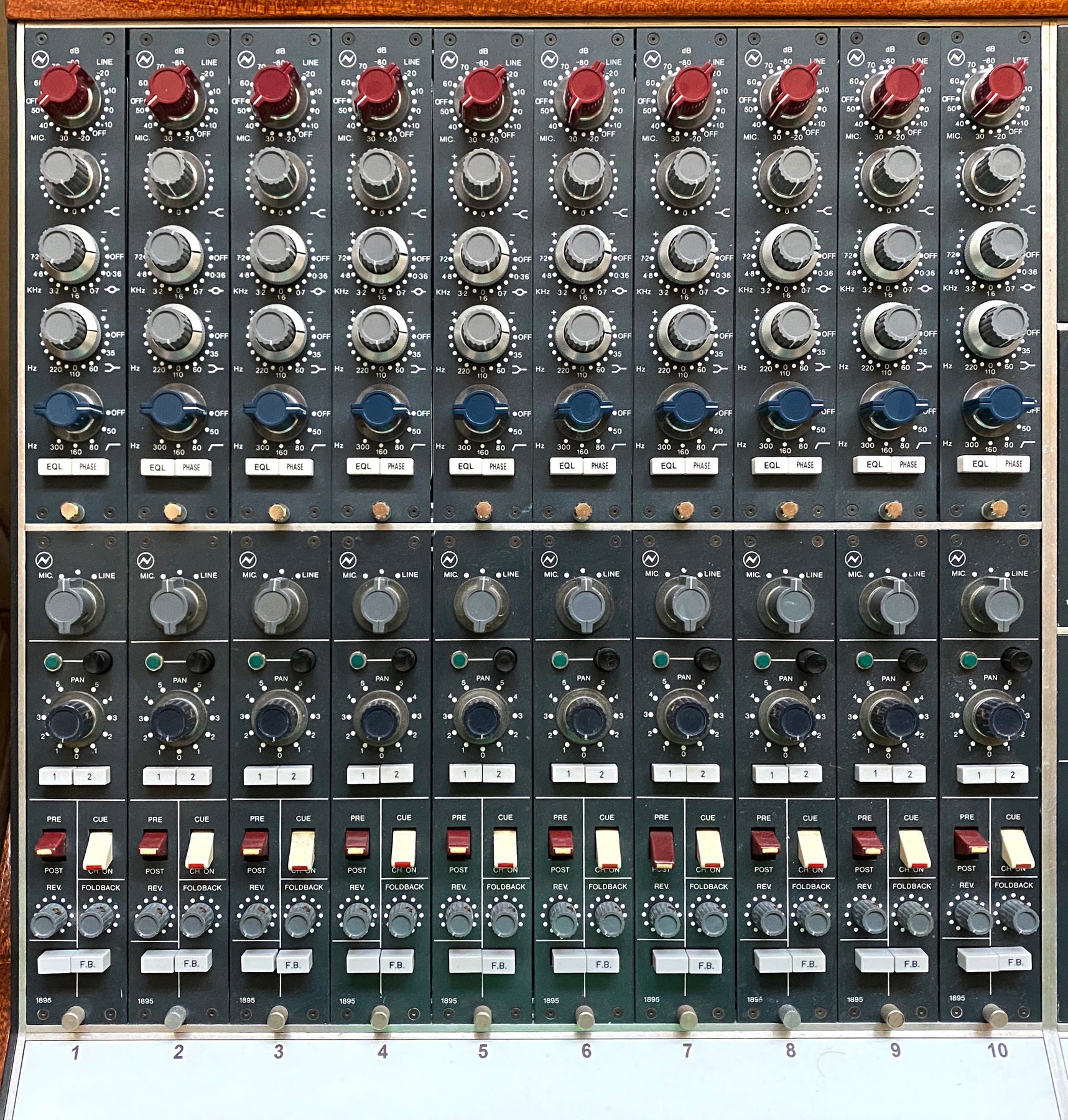

18 x Neve 1073 CV Modules Classic Reissue (first 13 have consecutive serial numbers)
10 x 1895 Switch Modules
5 x Neve 1272s

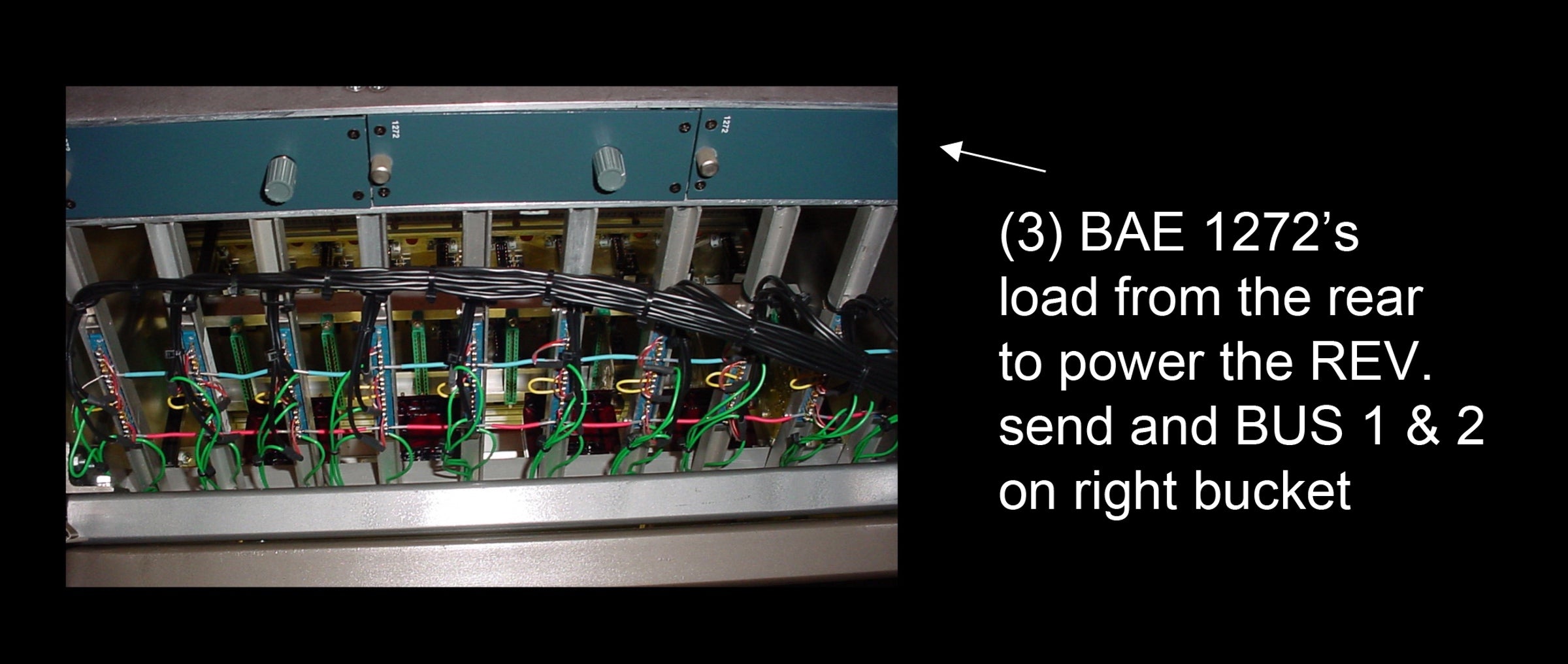

3 x BAE 1272s
1 x 1278
1 x 1466 Oscillator
1 x Custom Stereo 1271 (for bus insert)

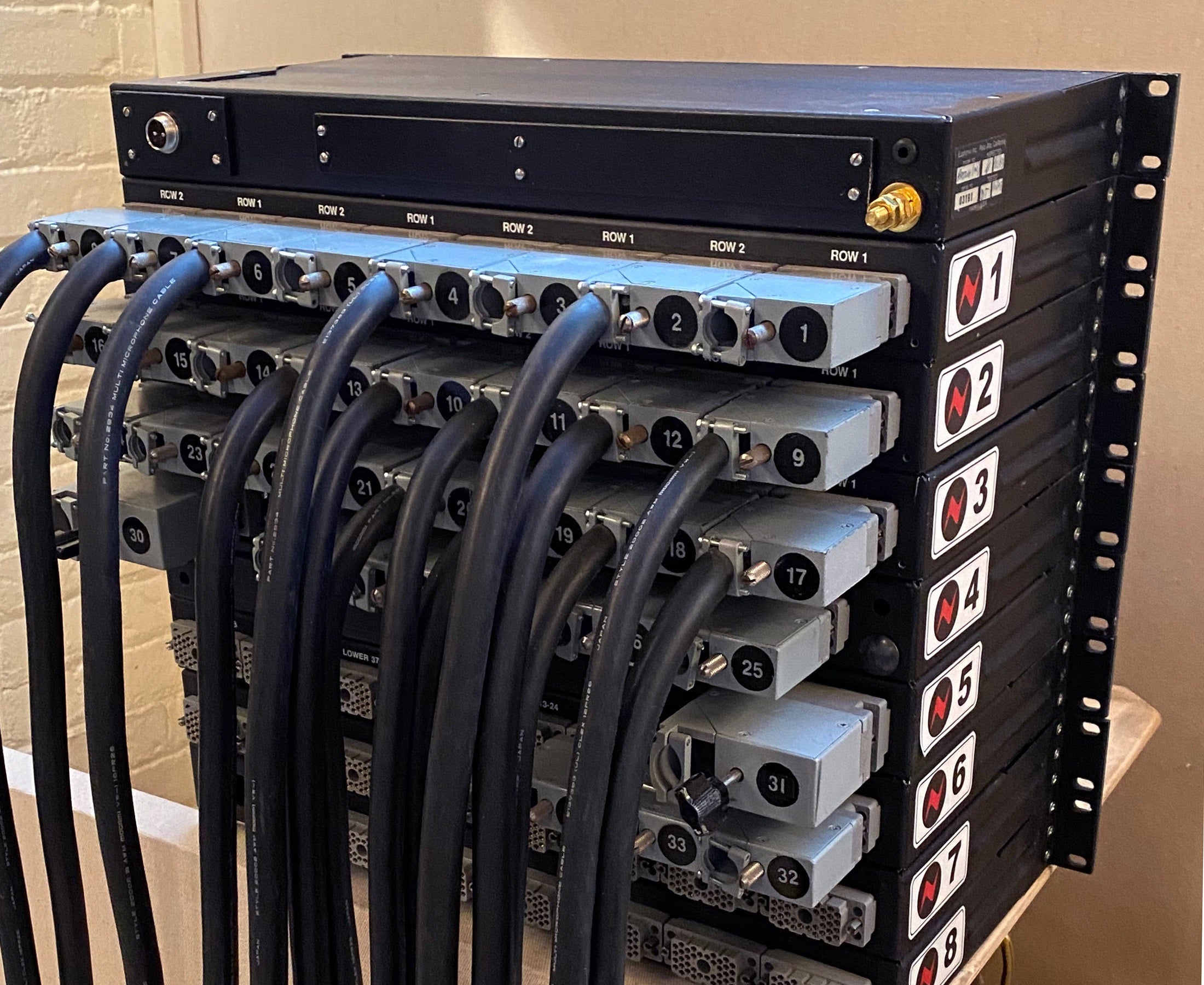

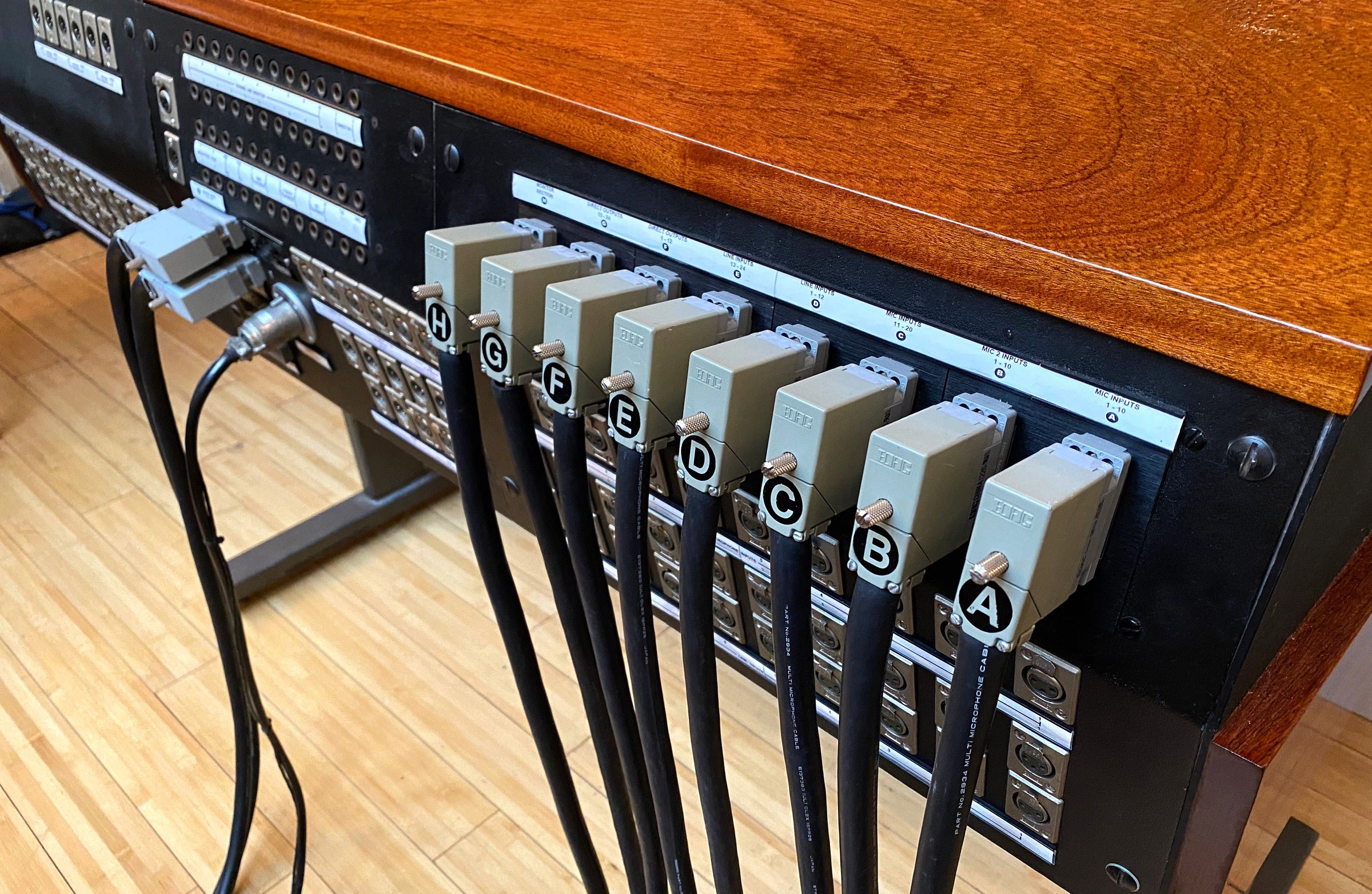

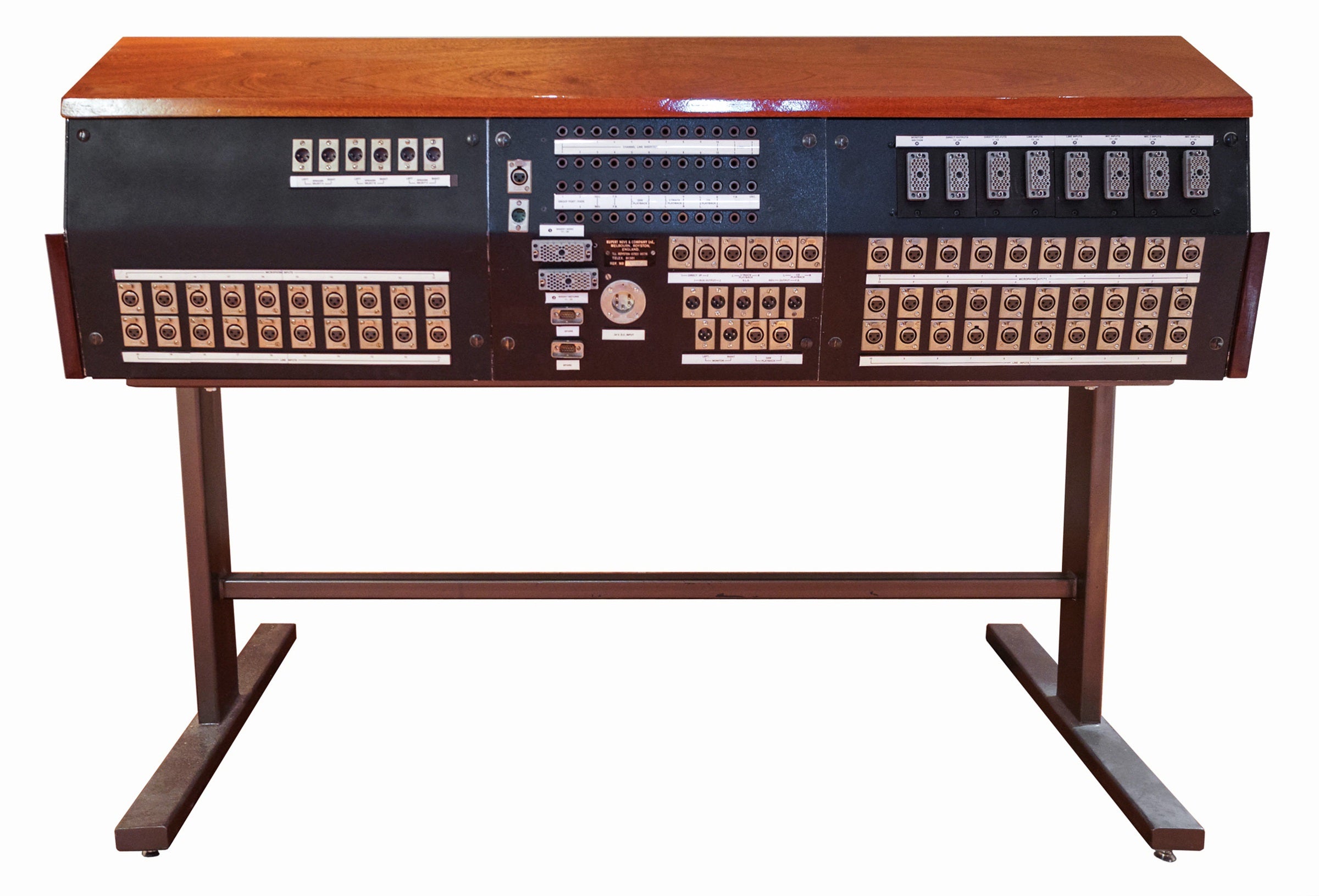

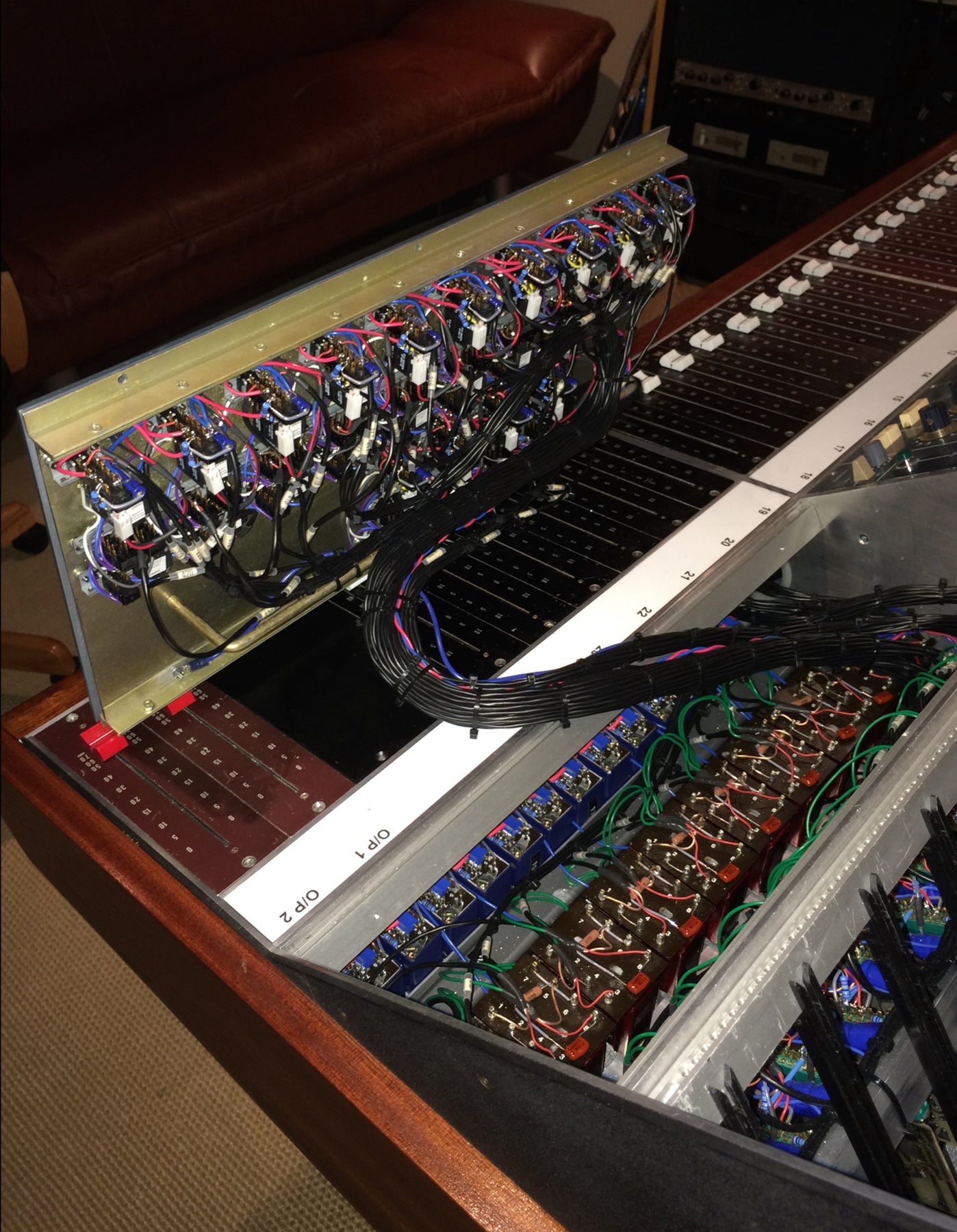

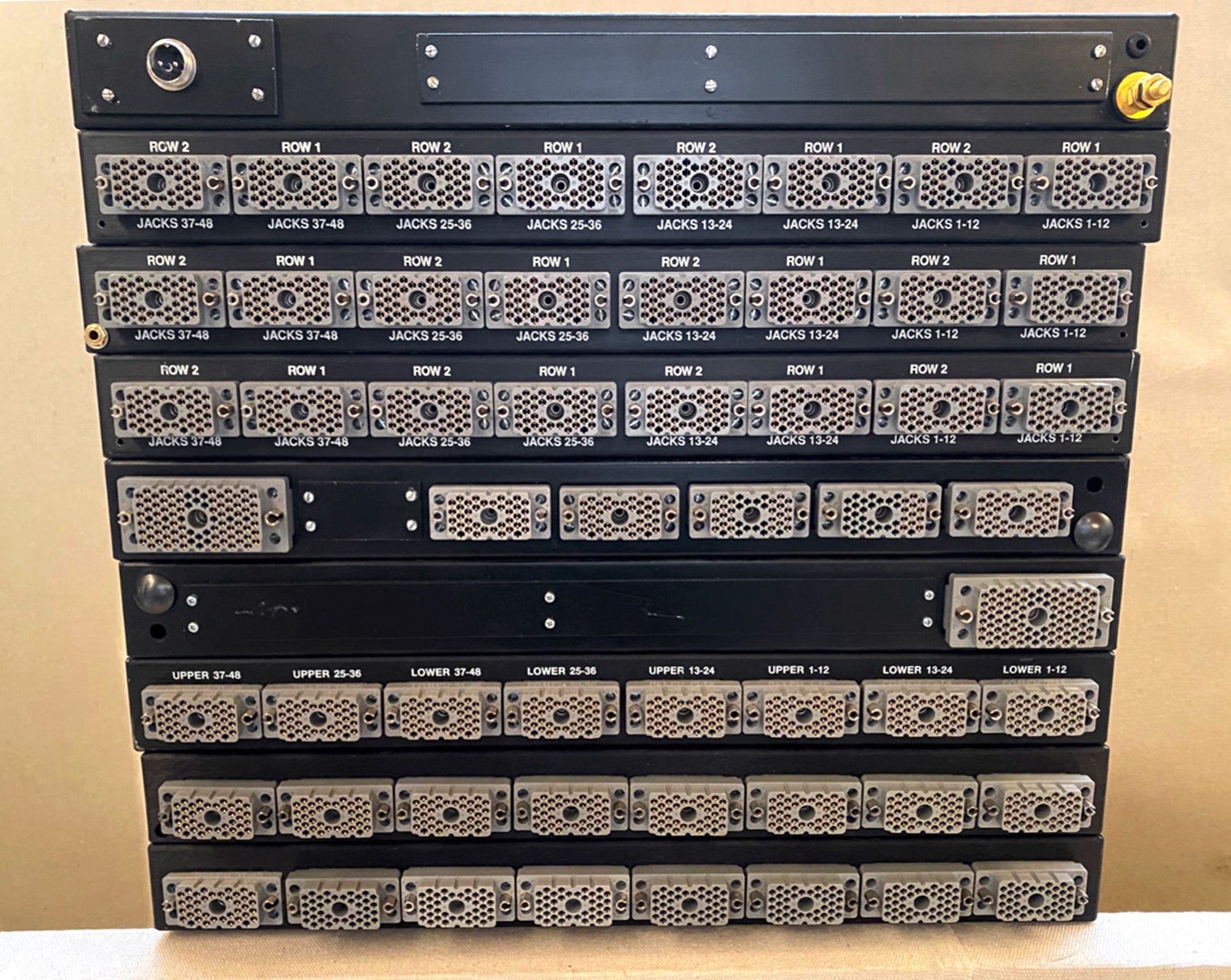

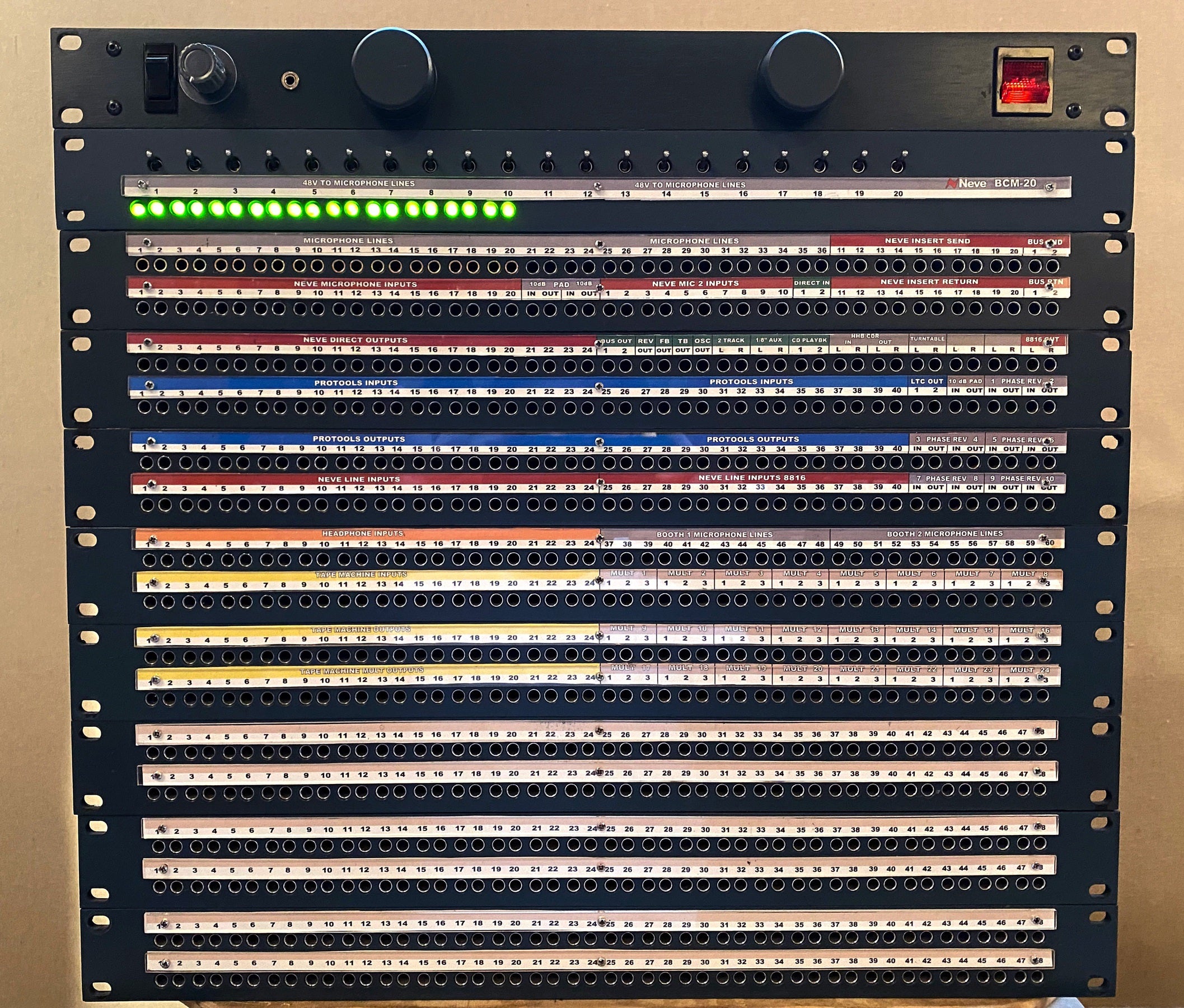

Fully wired ADC patchbay on EDAC’s with Selectable 48V phantom power on mic inputs 1-20.

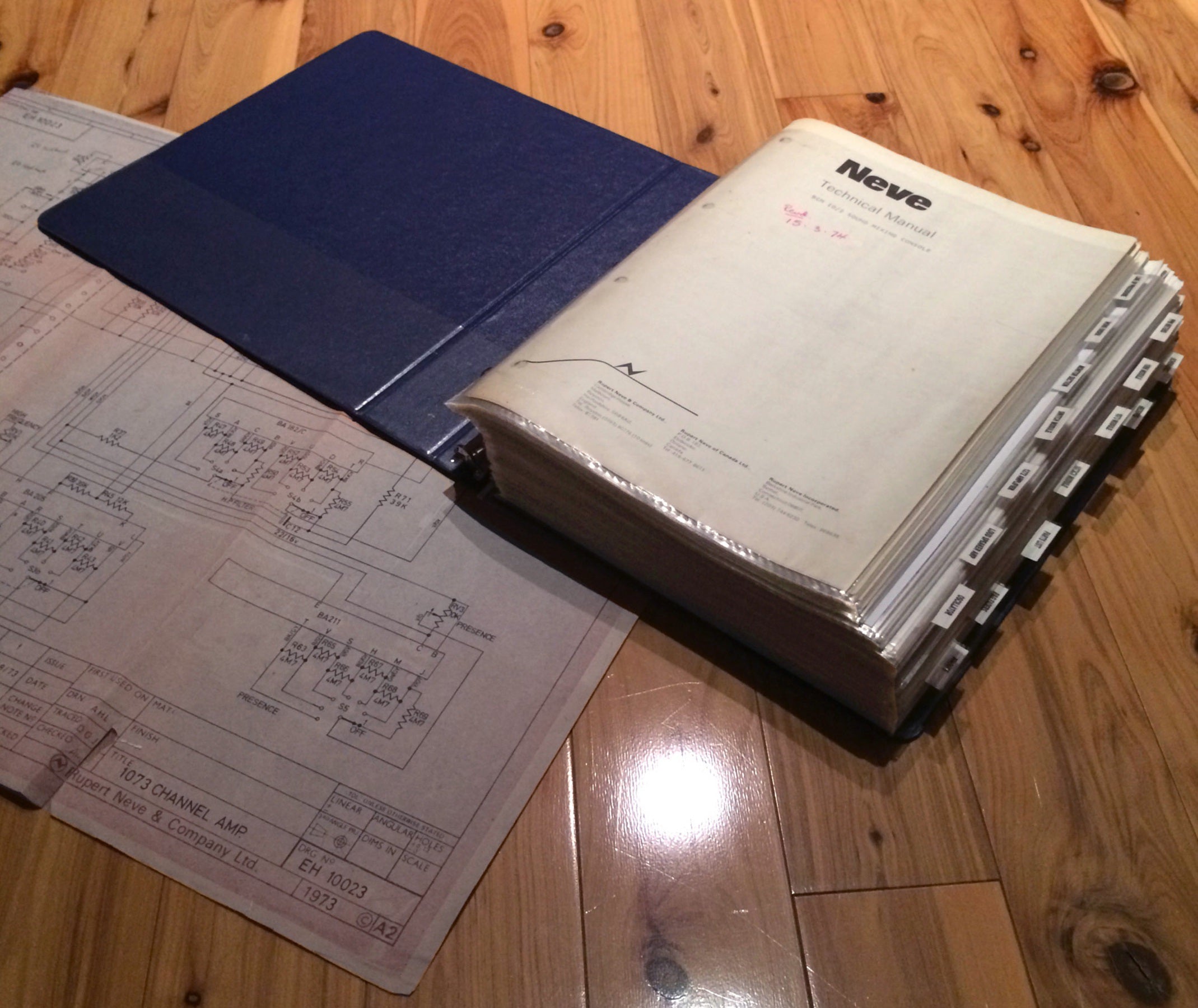

All modifications fully documented in original manual.

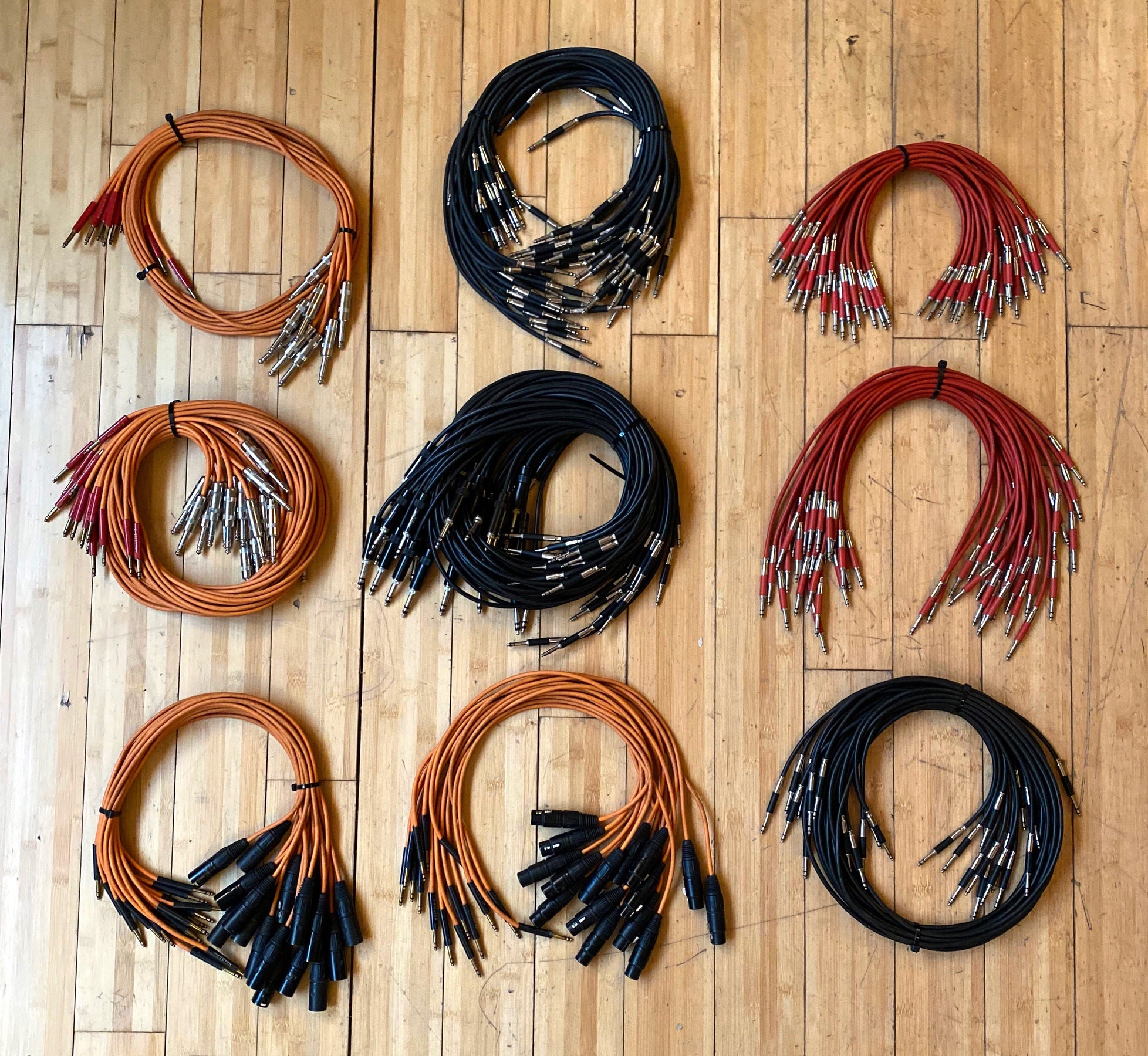

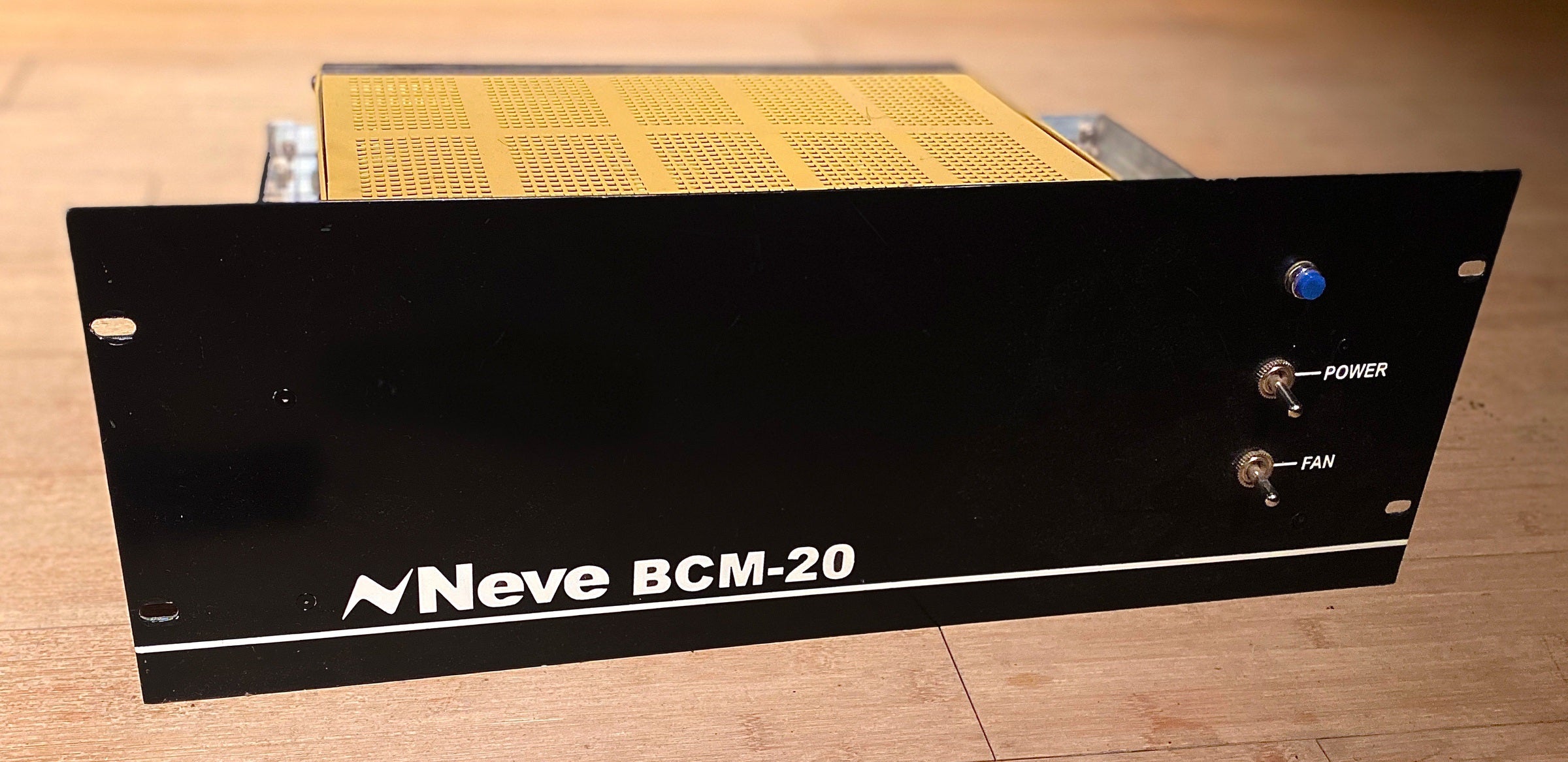

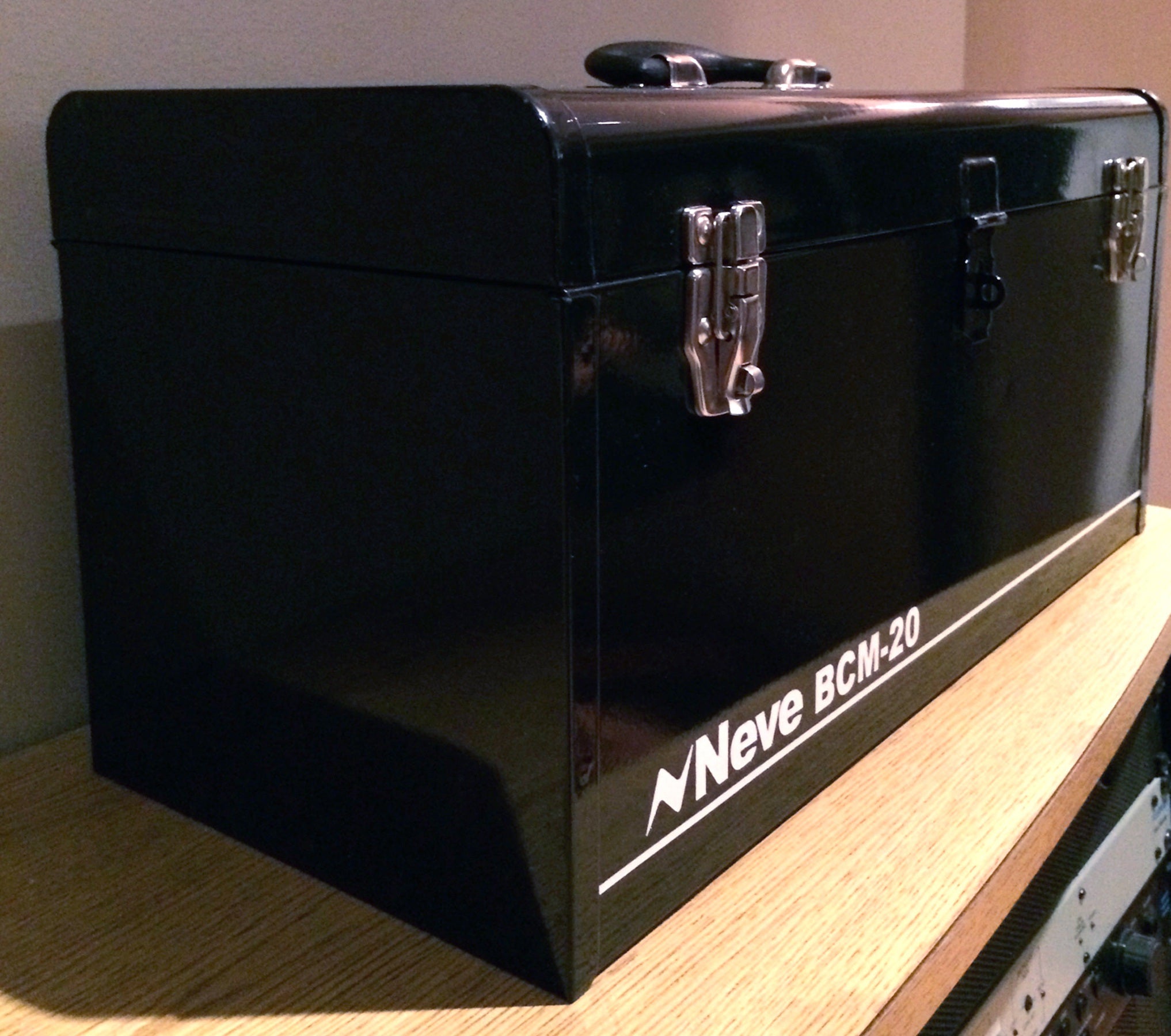

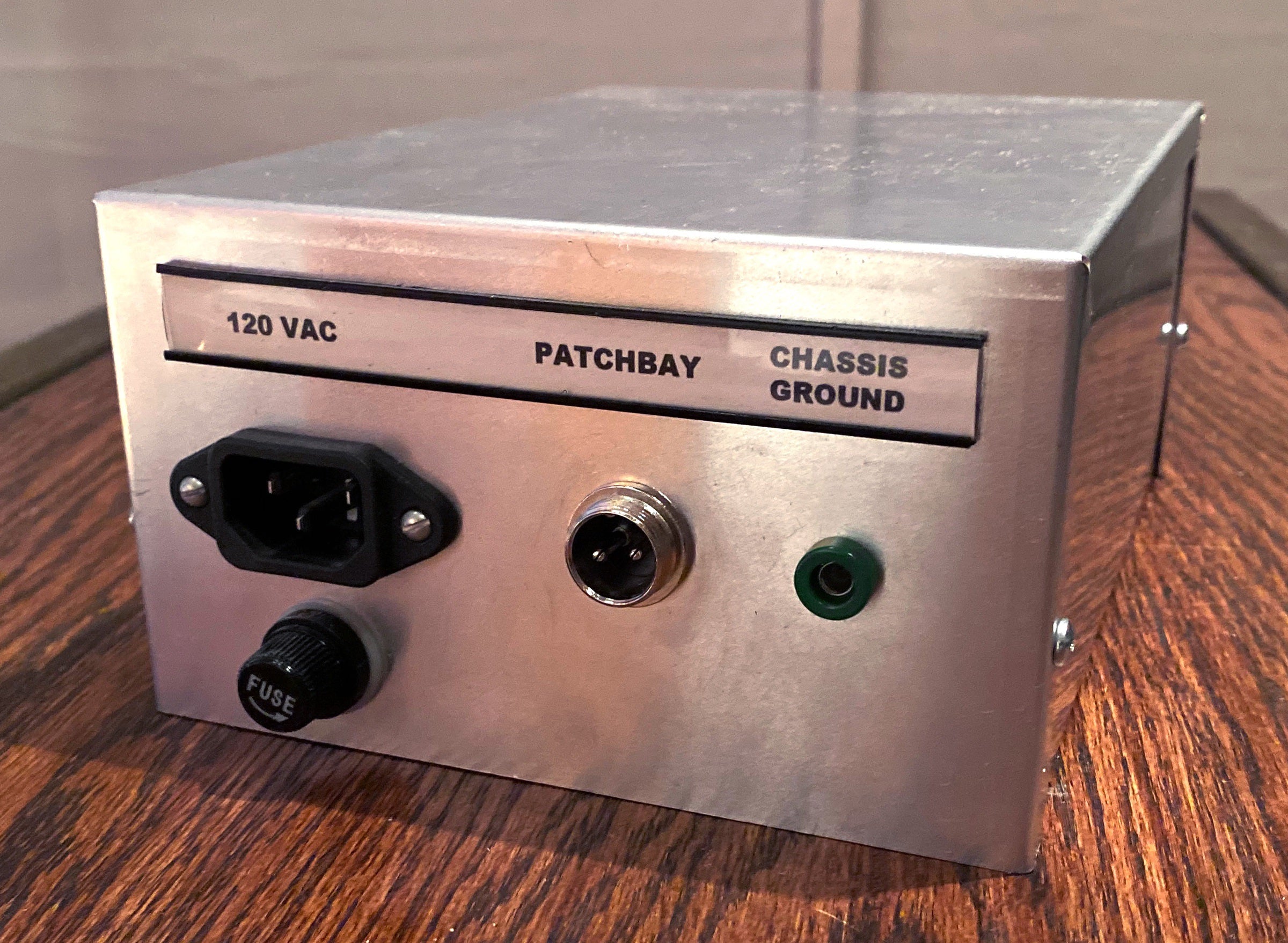

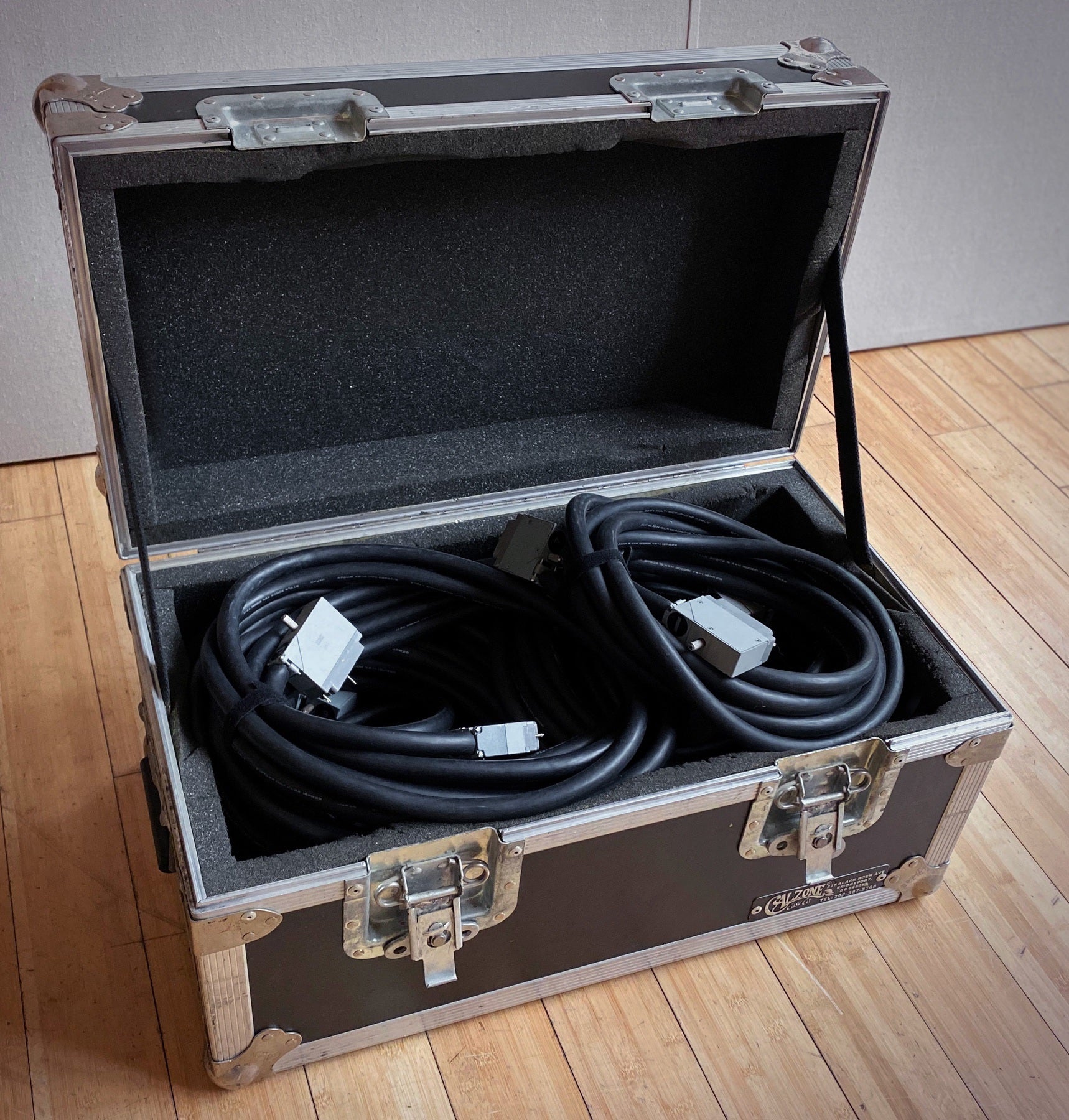

Flight cases for PSU, Patchbay, Cabling

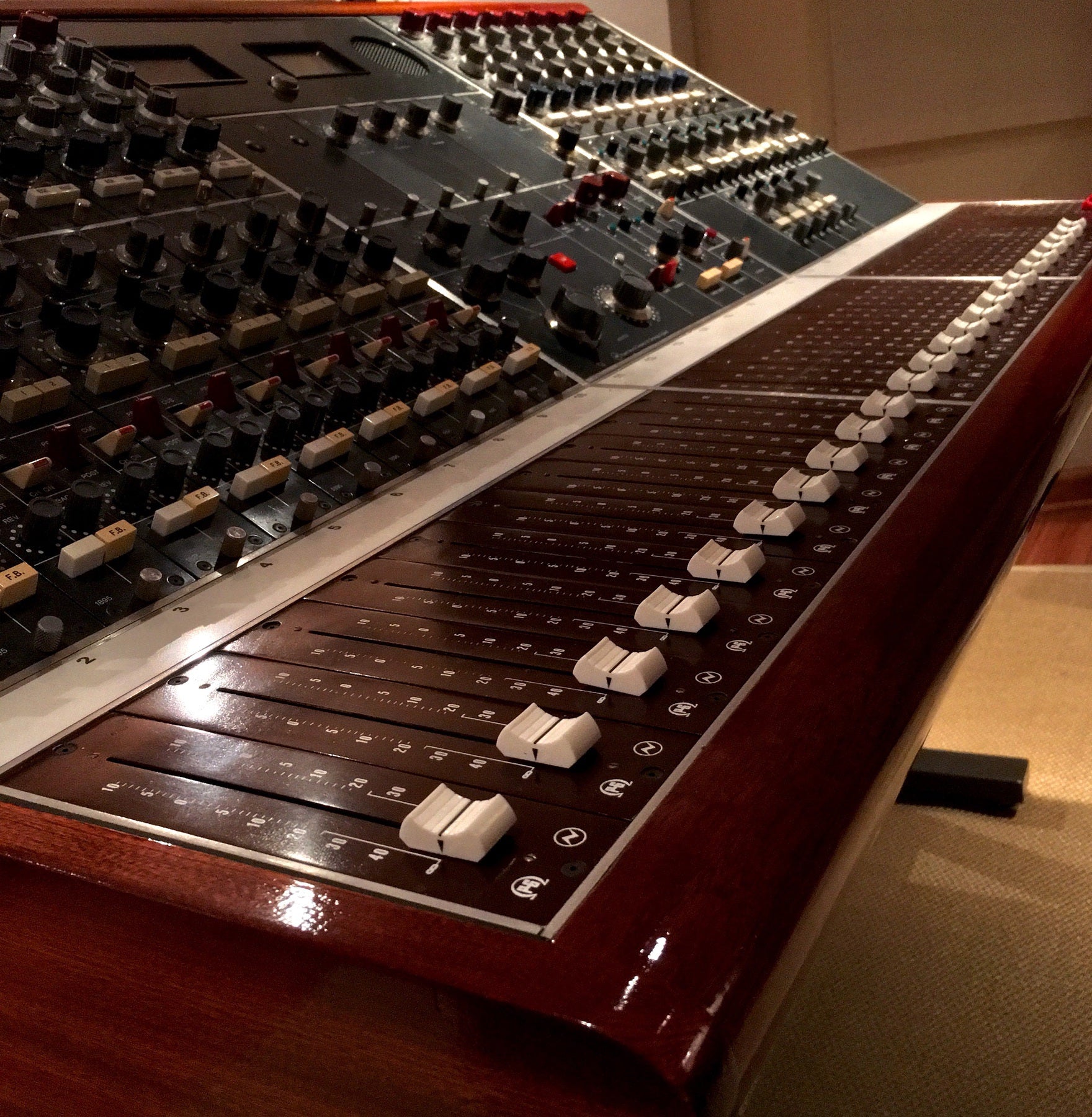

Brand new mahogany trim
New Paint, Screening and engraving

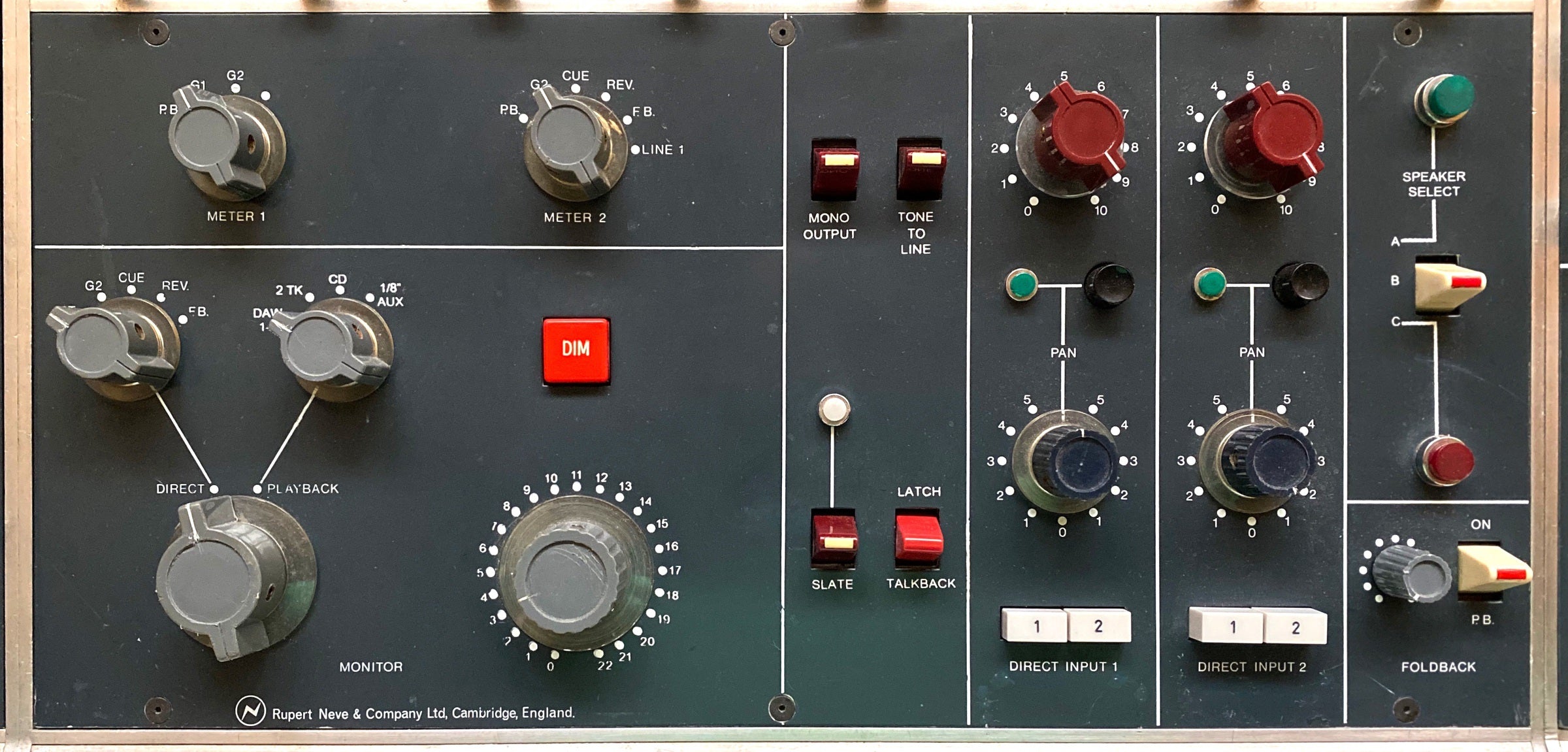

22 position stepped monitor potentiometer
54” Wide

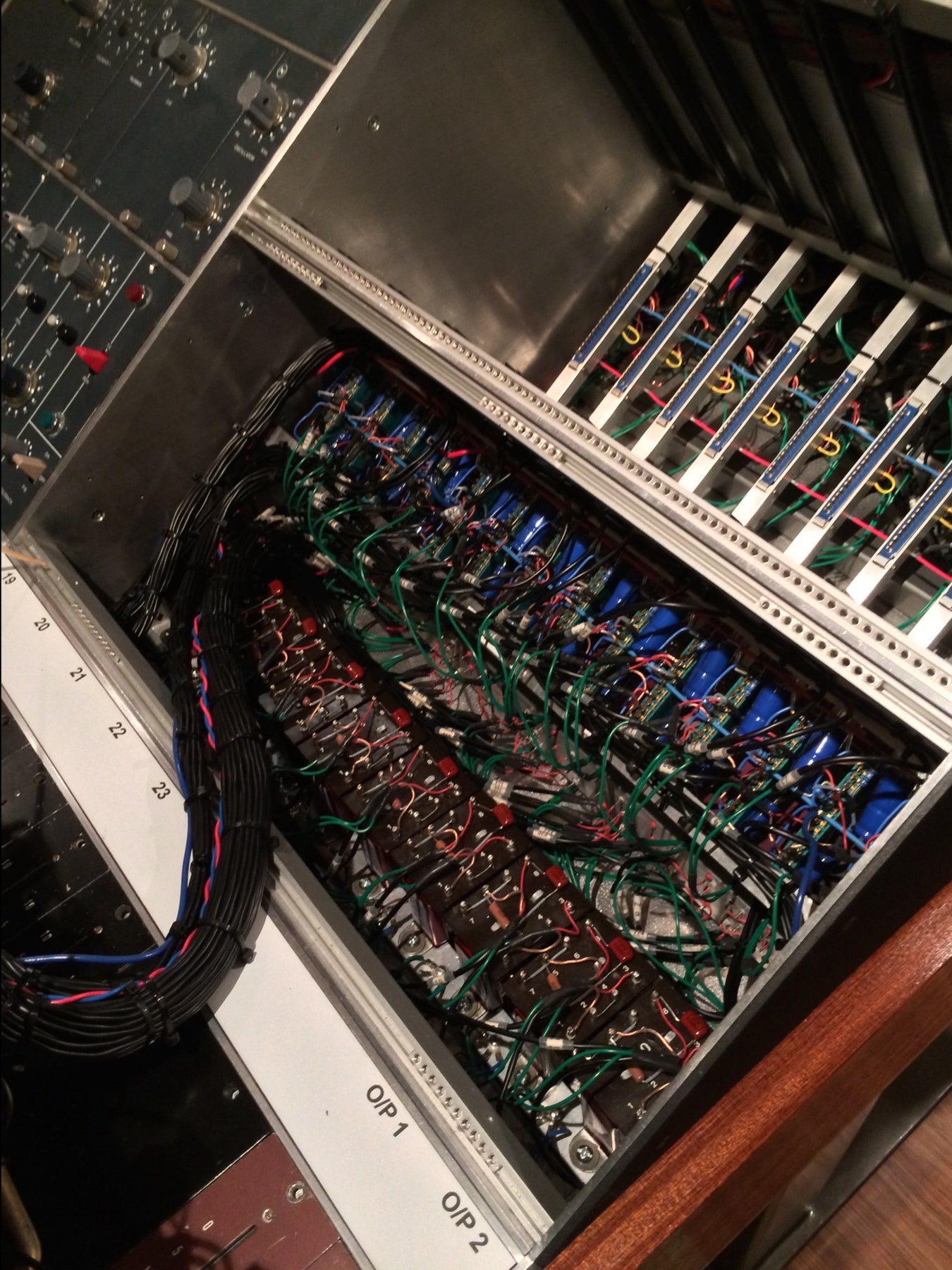

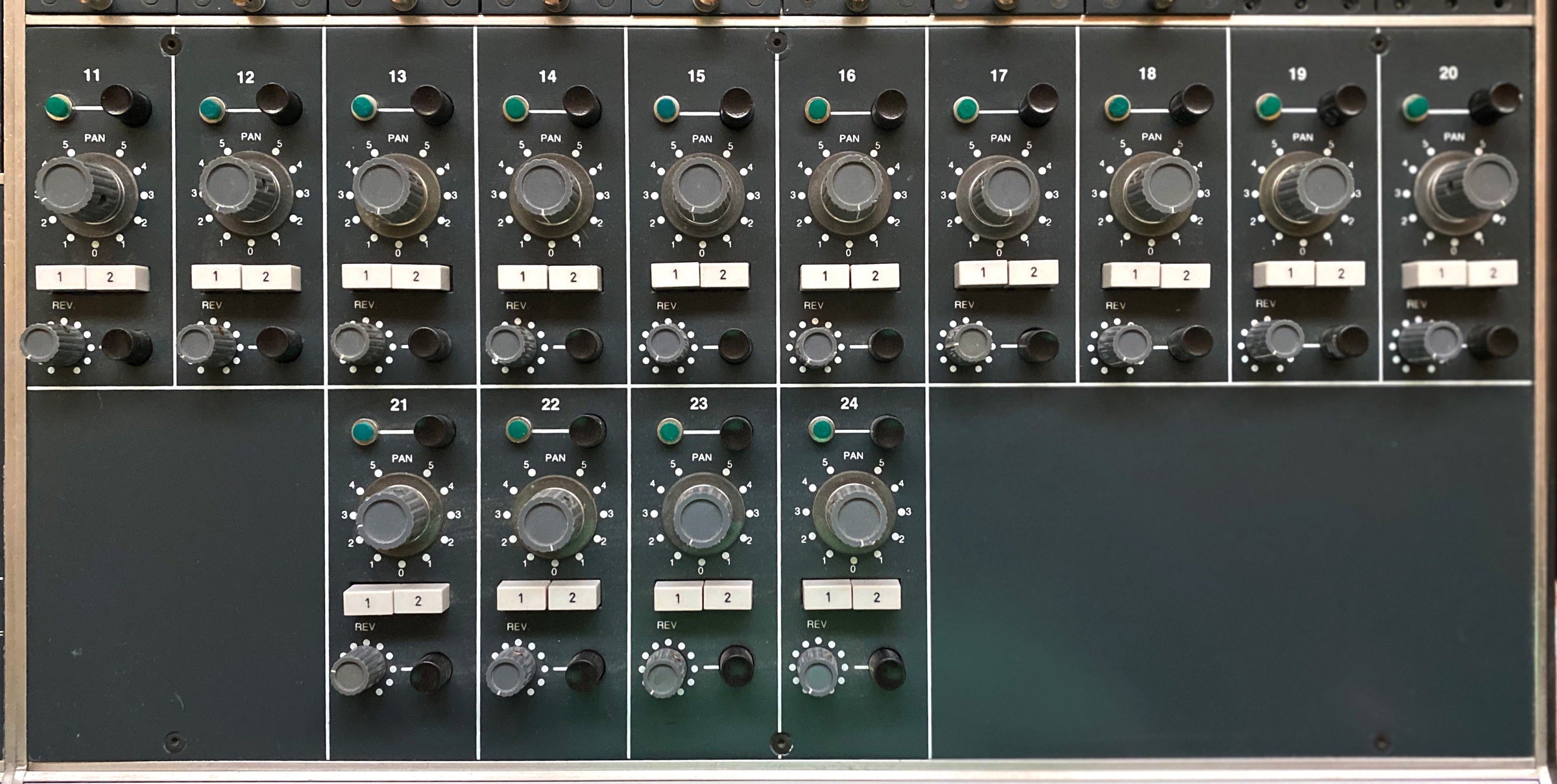

* Channels 11-24 are wired with Carnhill VTB9071 Input Transformers,
Carnhill VTB9049 Output Transformers and Neve 283 cards.



======

Note that this is a brokerage sale. All information and photos have been provided by the seller. Located in the USA. International shipping is possible – please get in touch for a quote.

Full terms available on request.

Condition

In superb condition with only minor signs of age or wear. Please see photos or get in touch if you require more information on condition.

Voltage Information

See description for more information.

Tax

Brokerage item - see detailed description for more information on tax status of this sale.
