Langevin AM-4

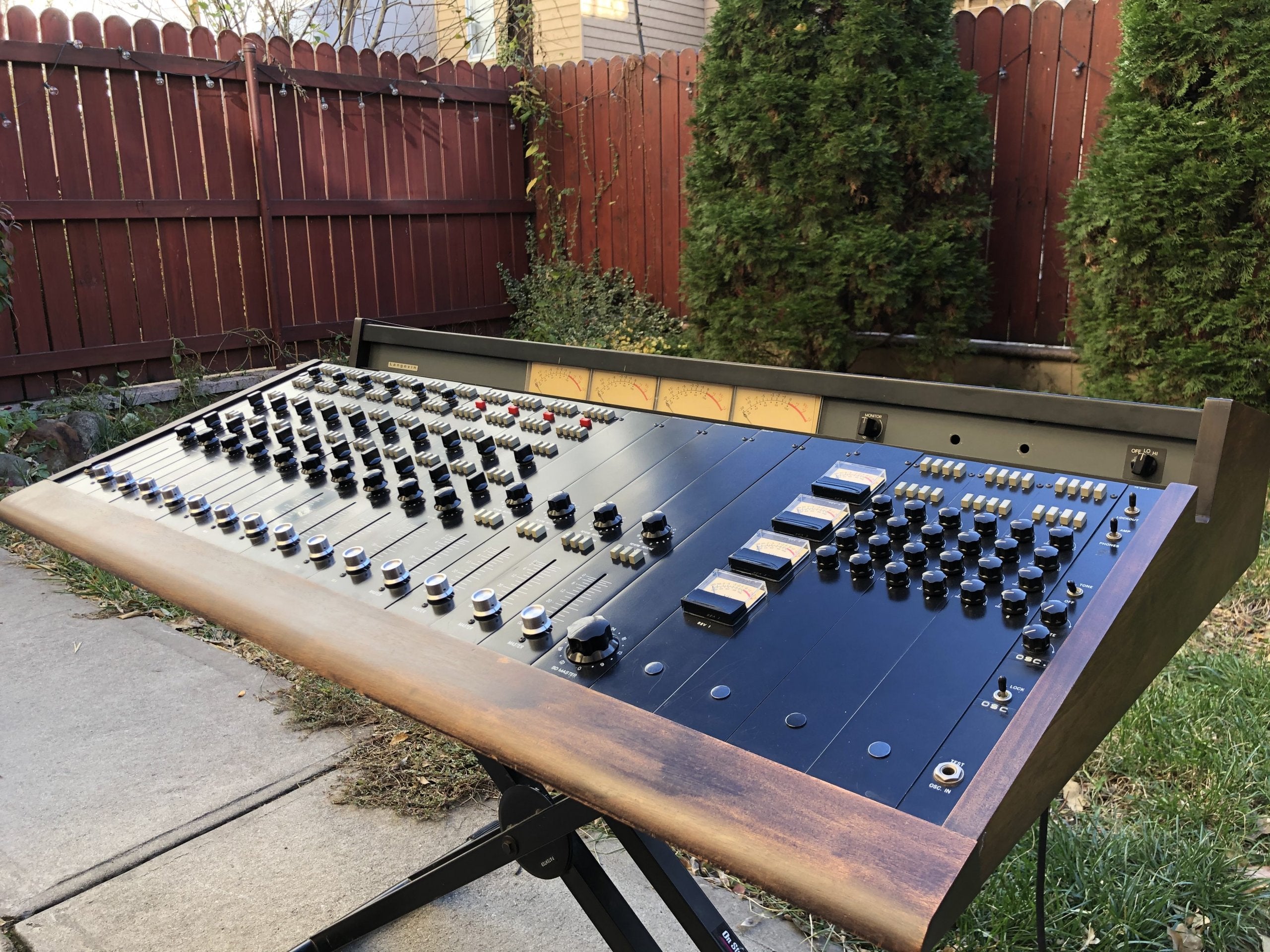

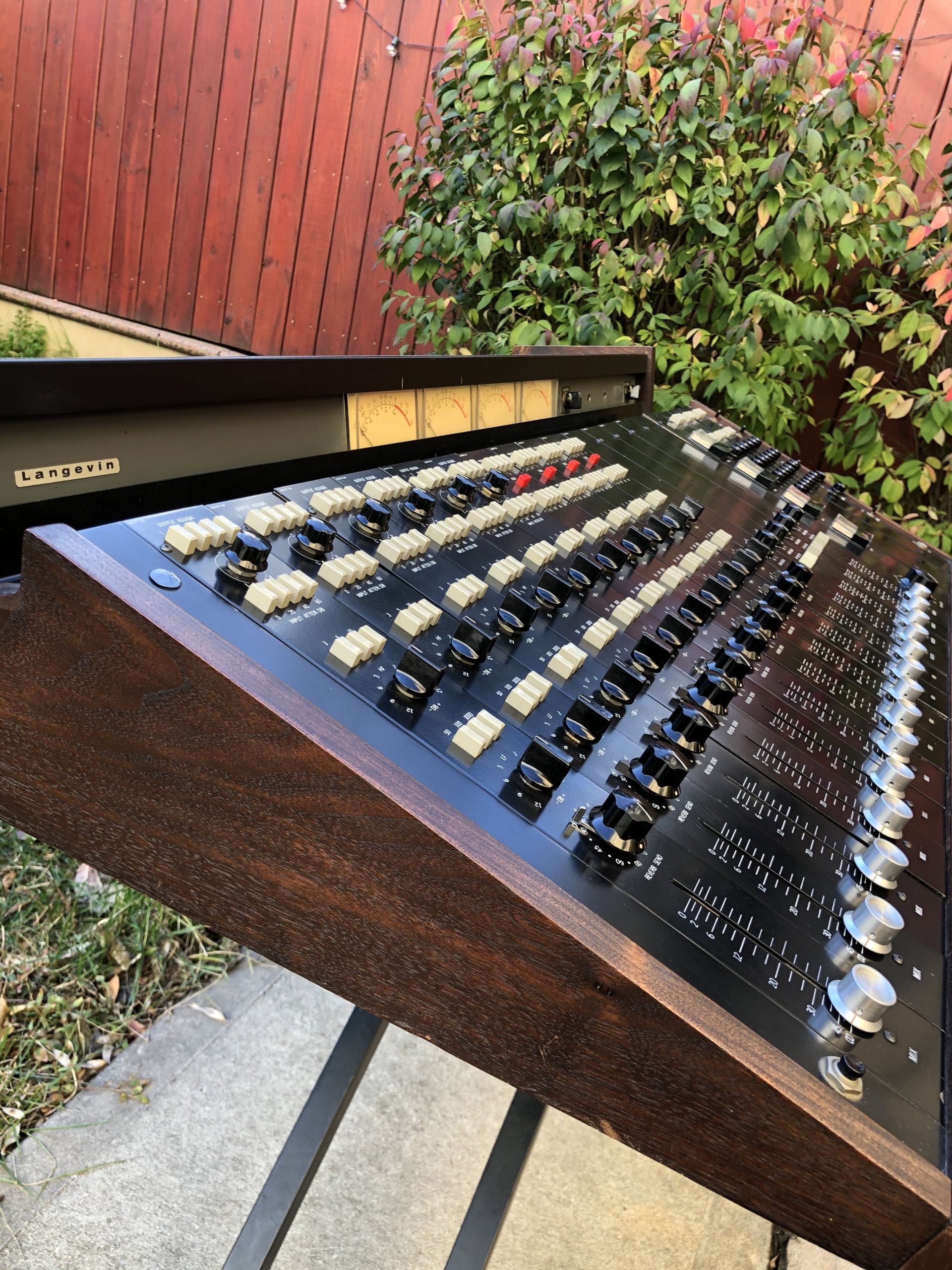

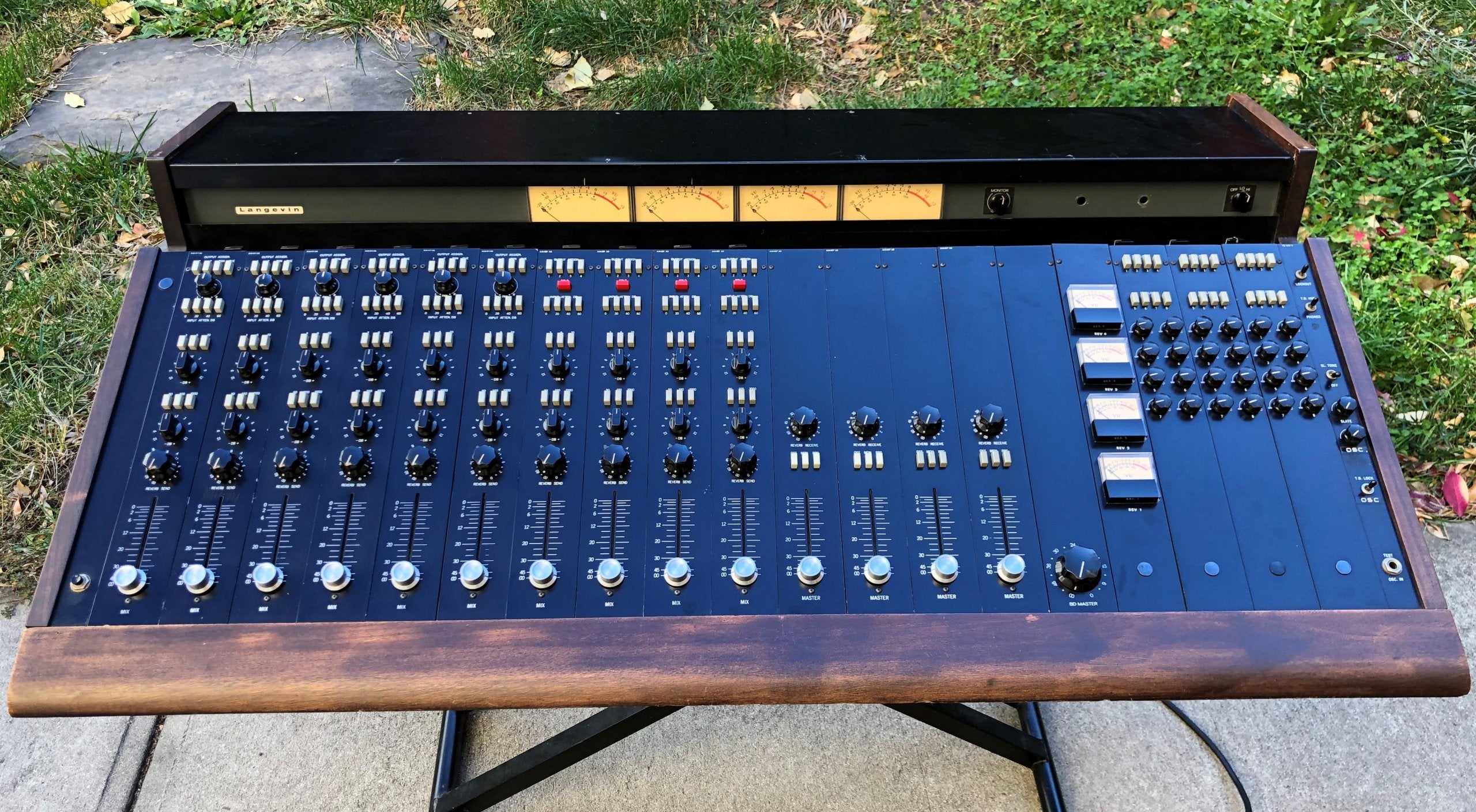

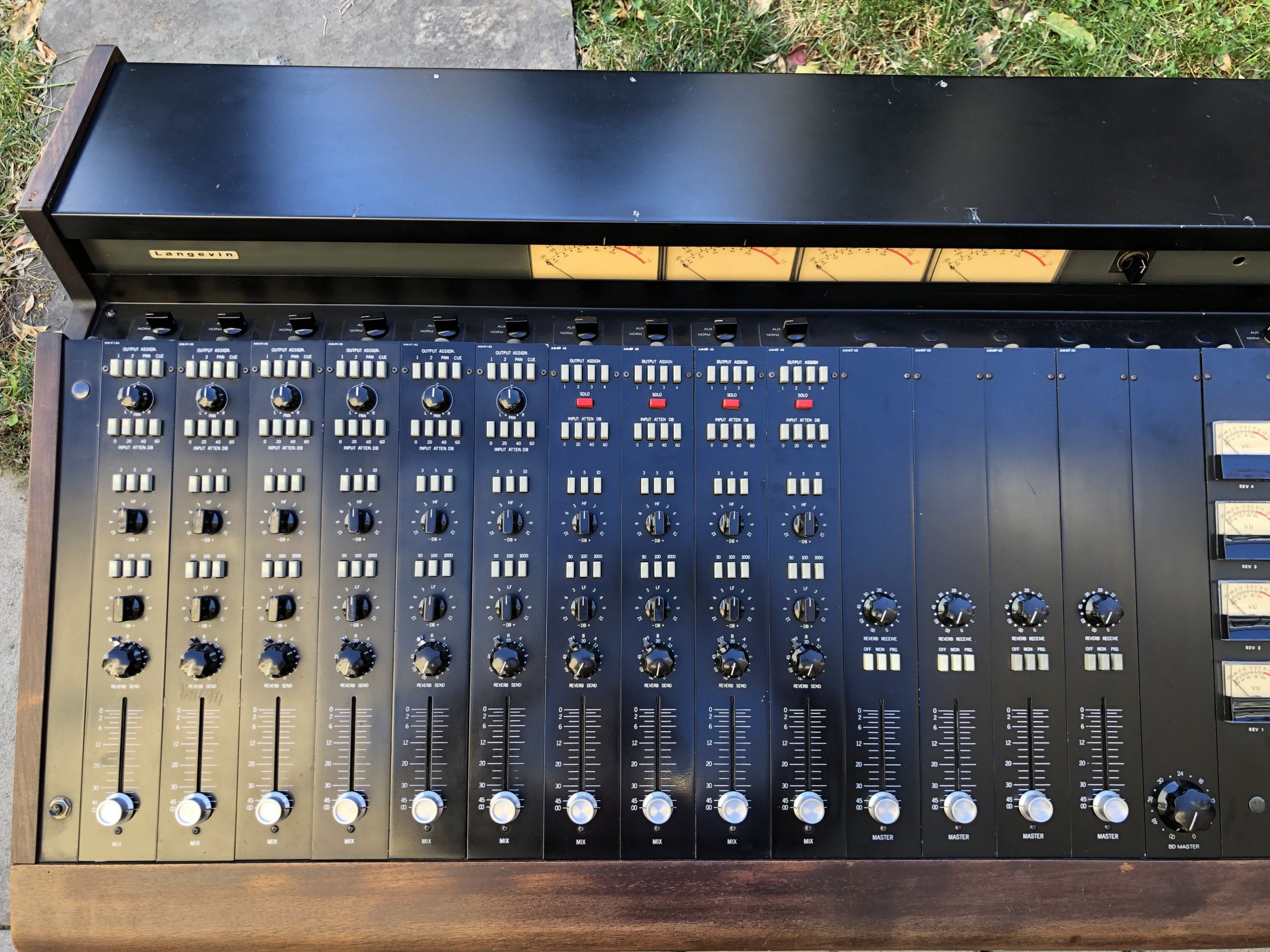

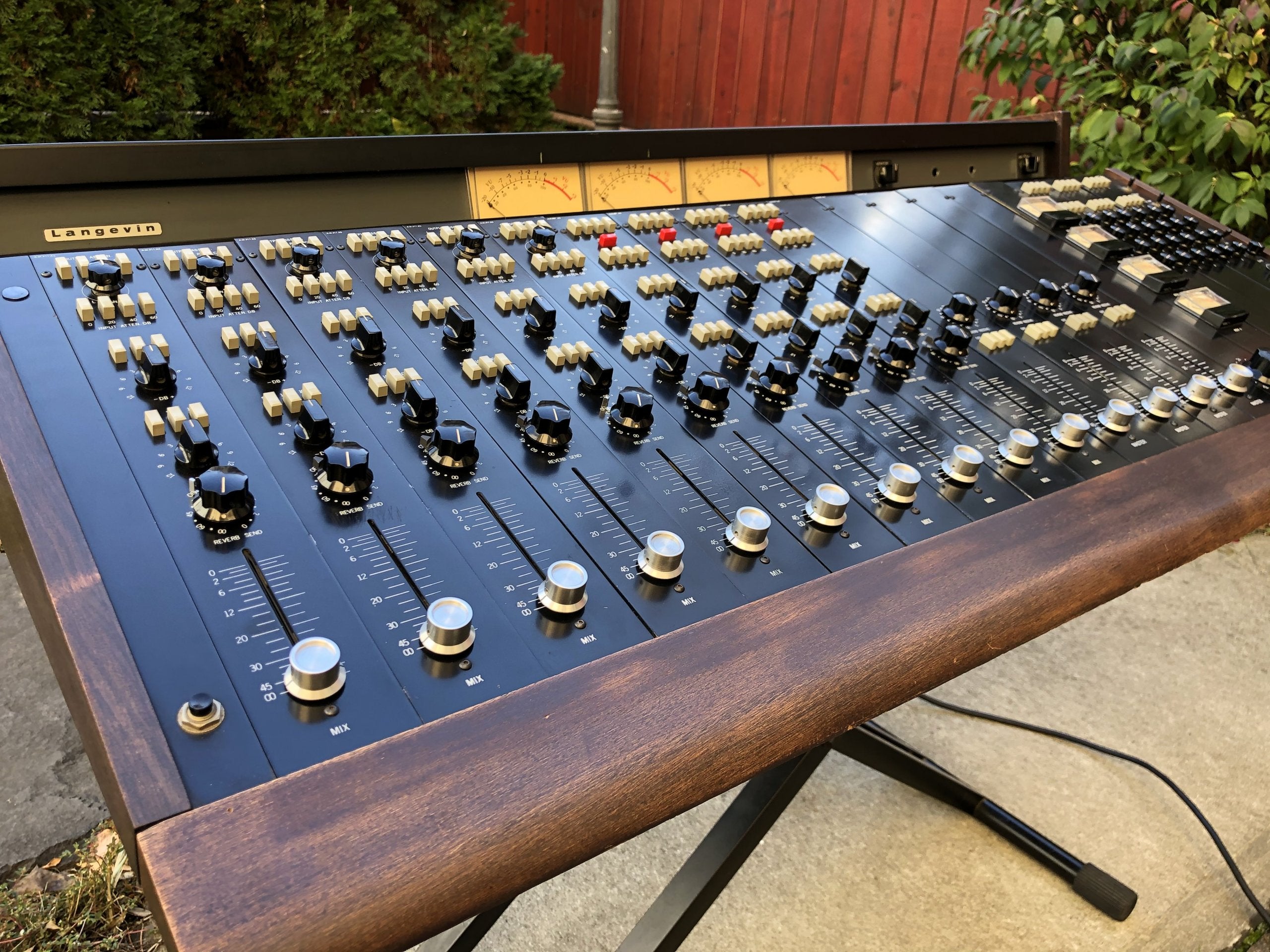

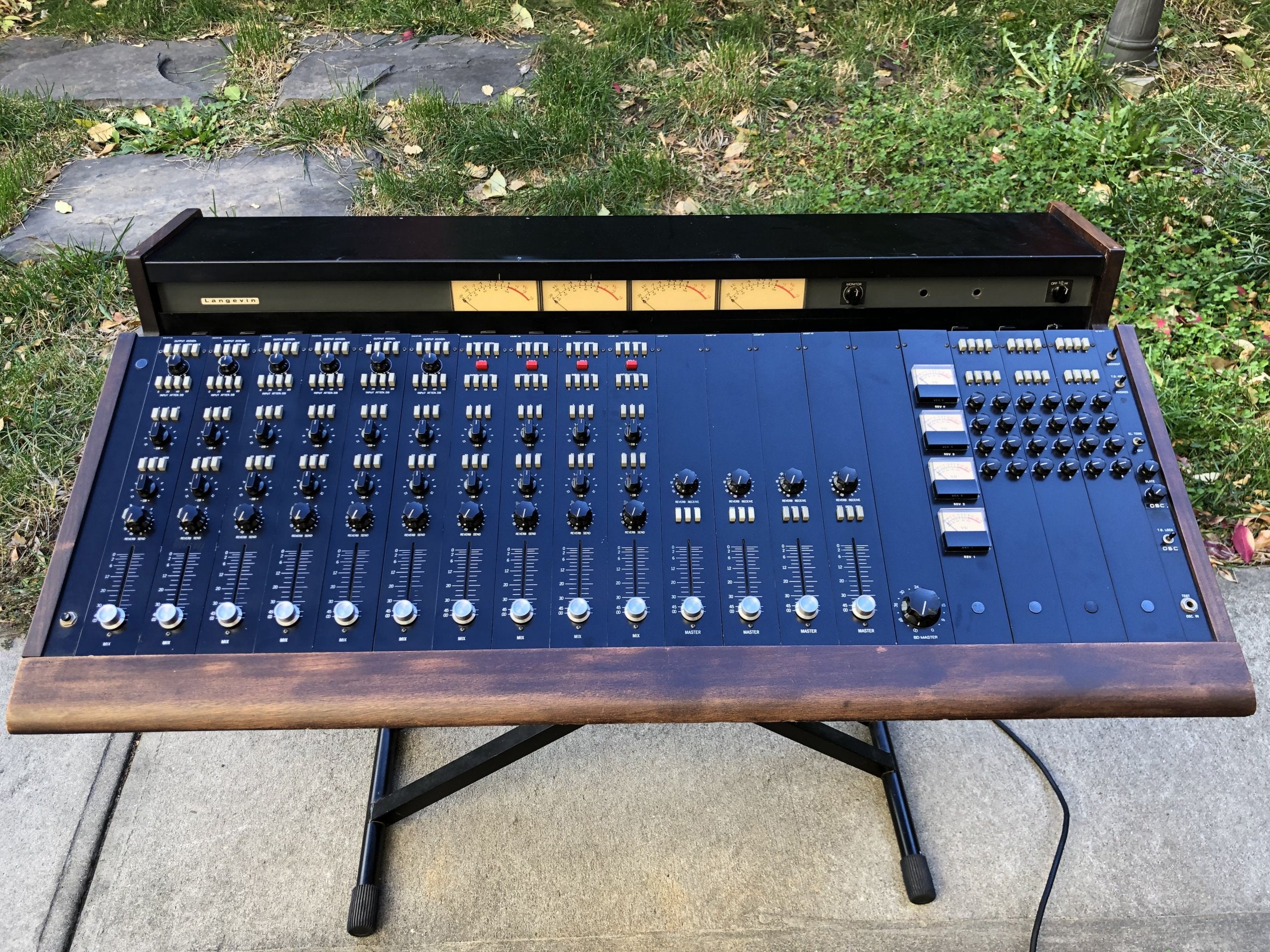

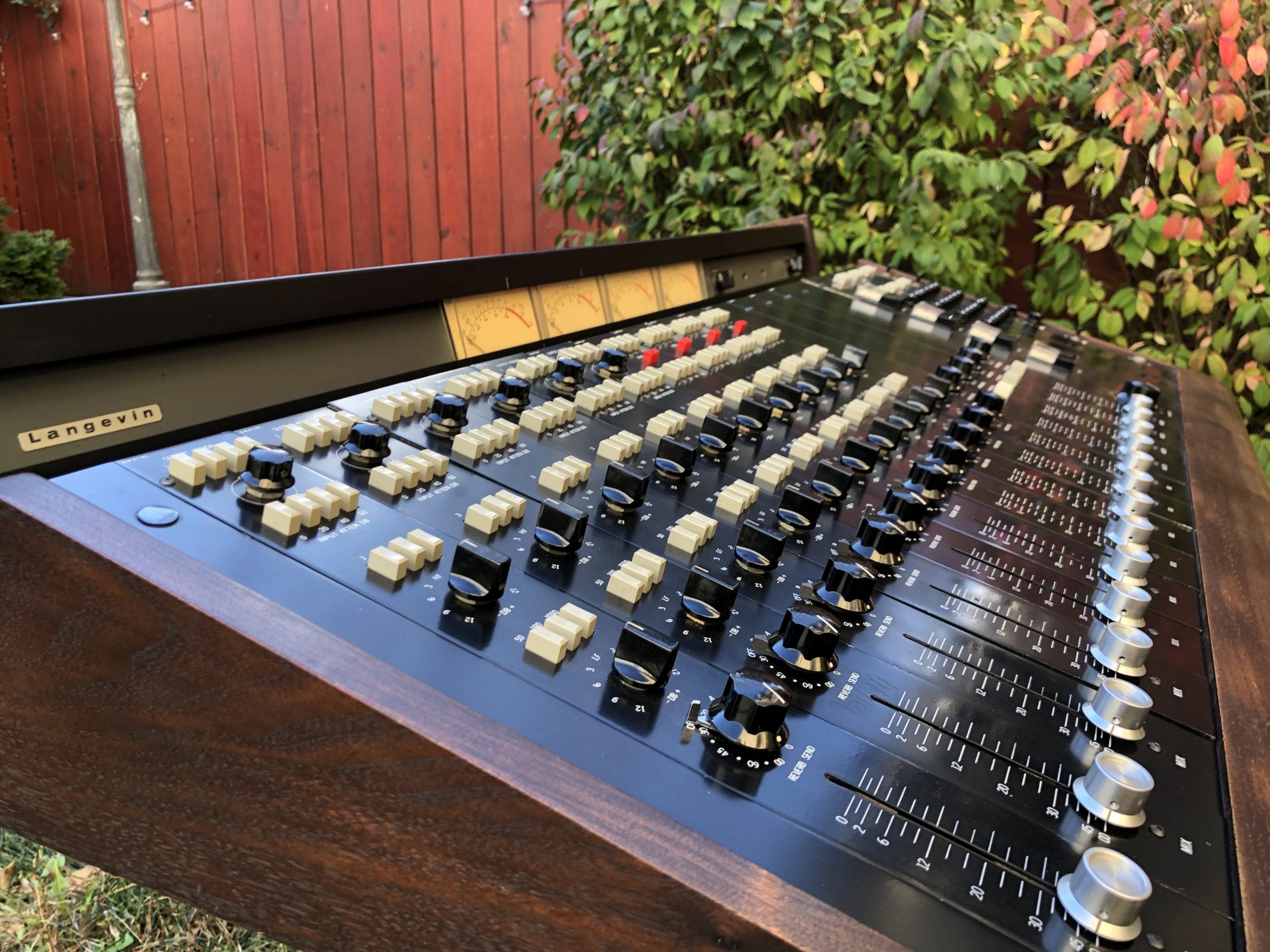

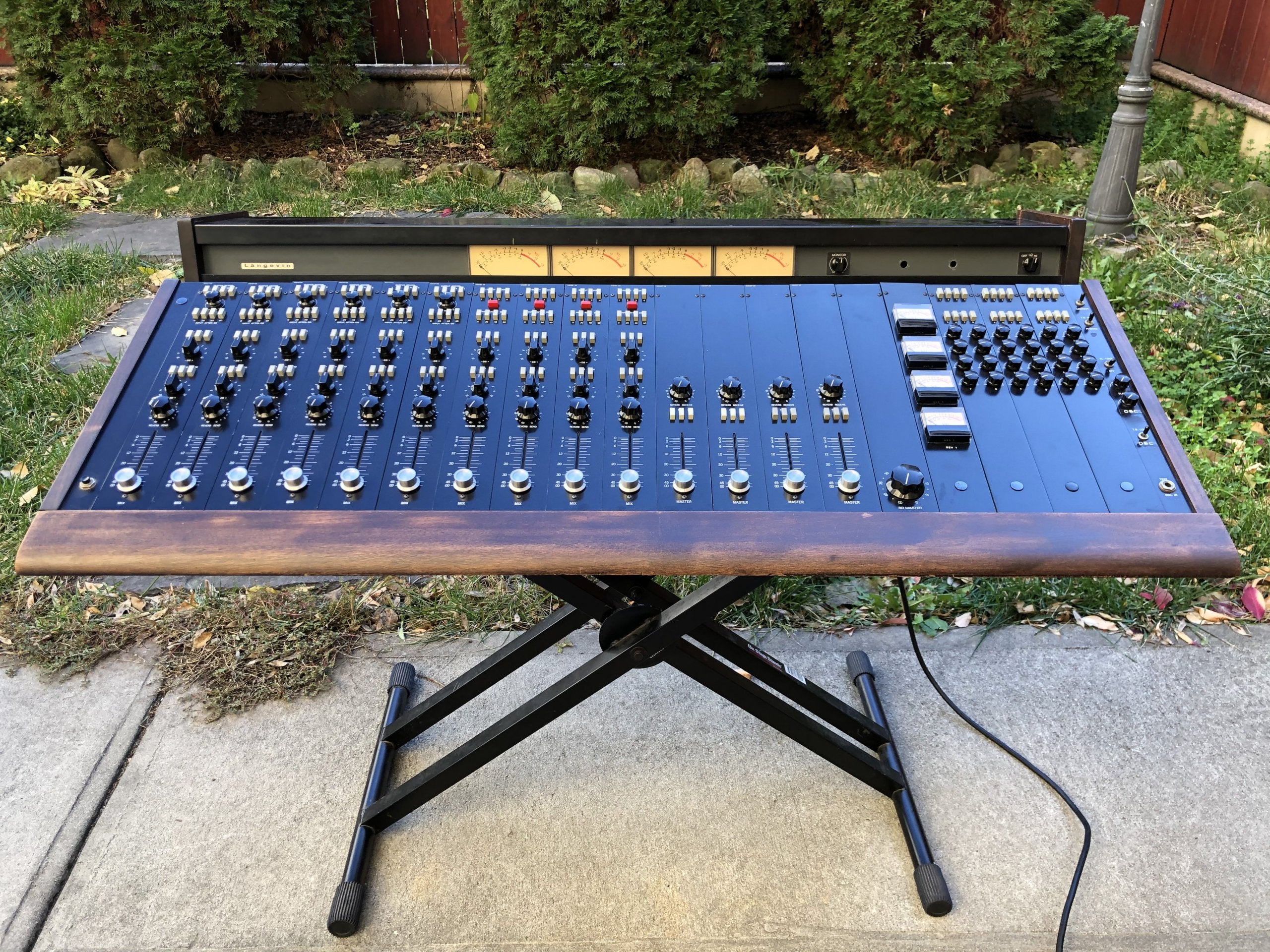

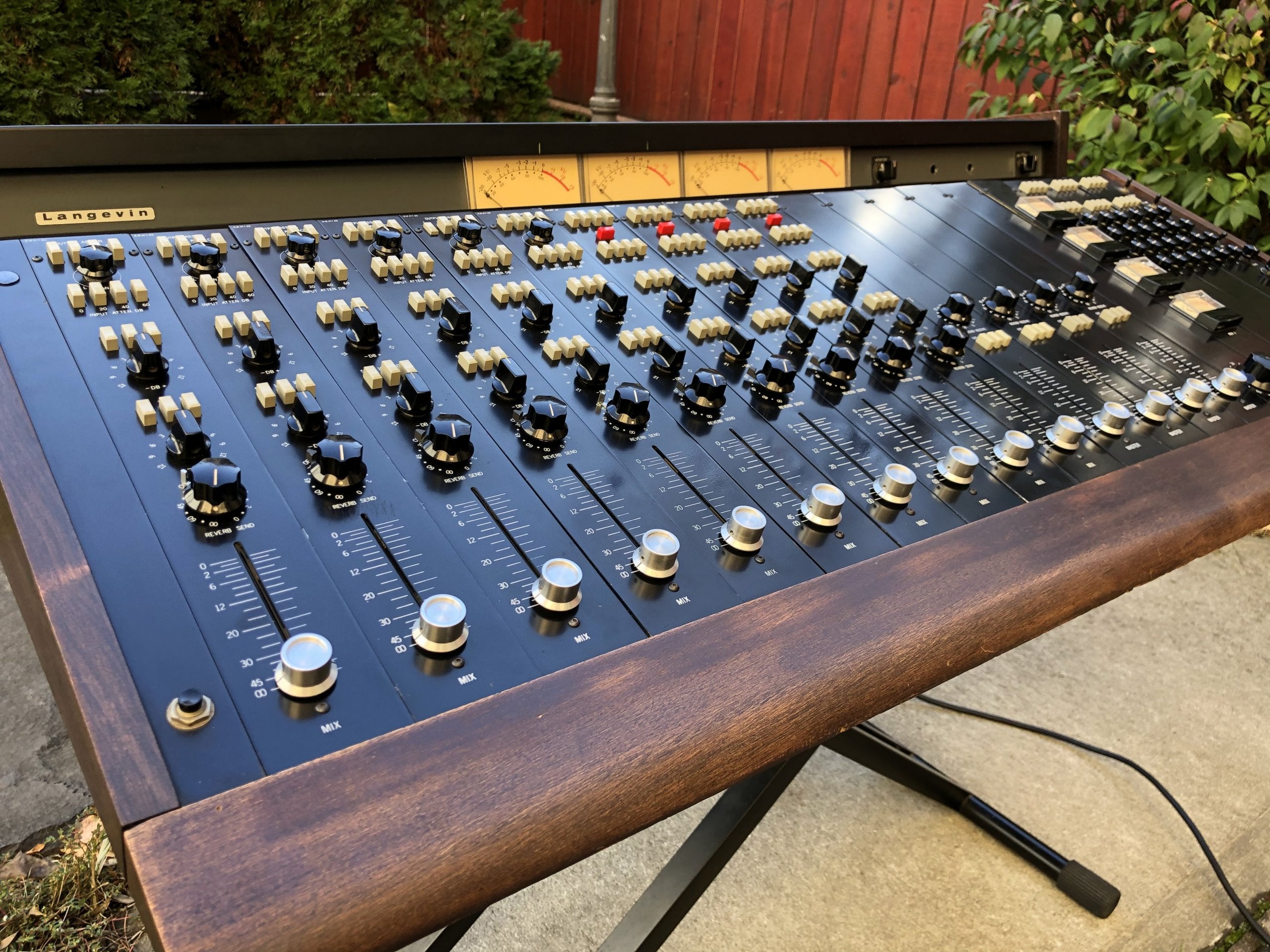

Stunning 10×4 console of pure, early transistor Langevin goodness. Ten input, mic or line, assignable to the four master modules. Incredible.

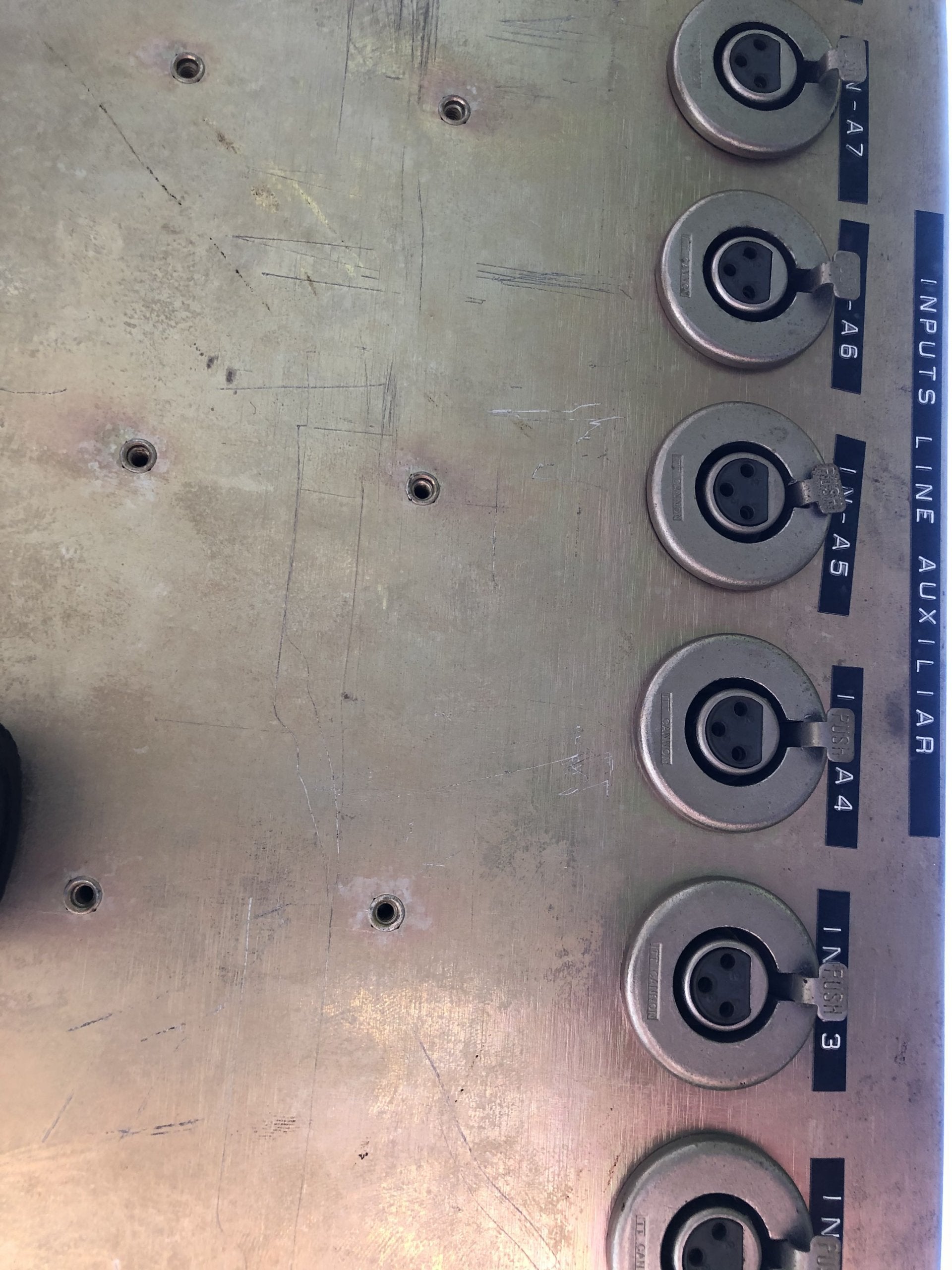

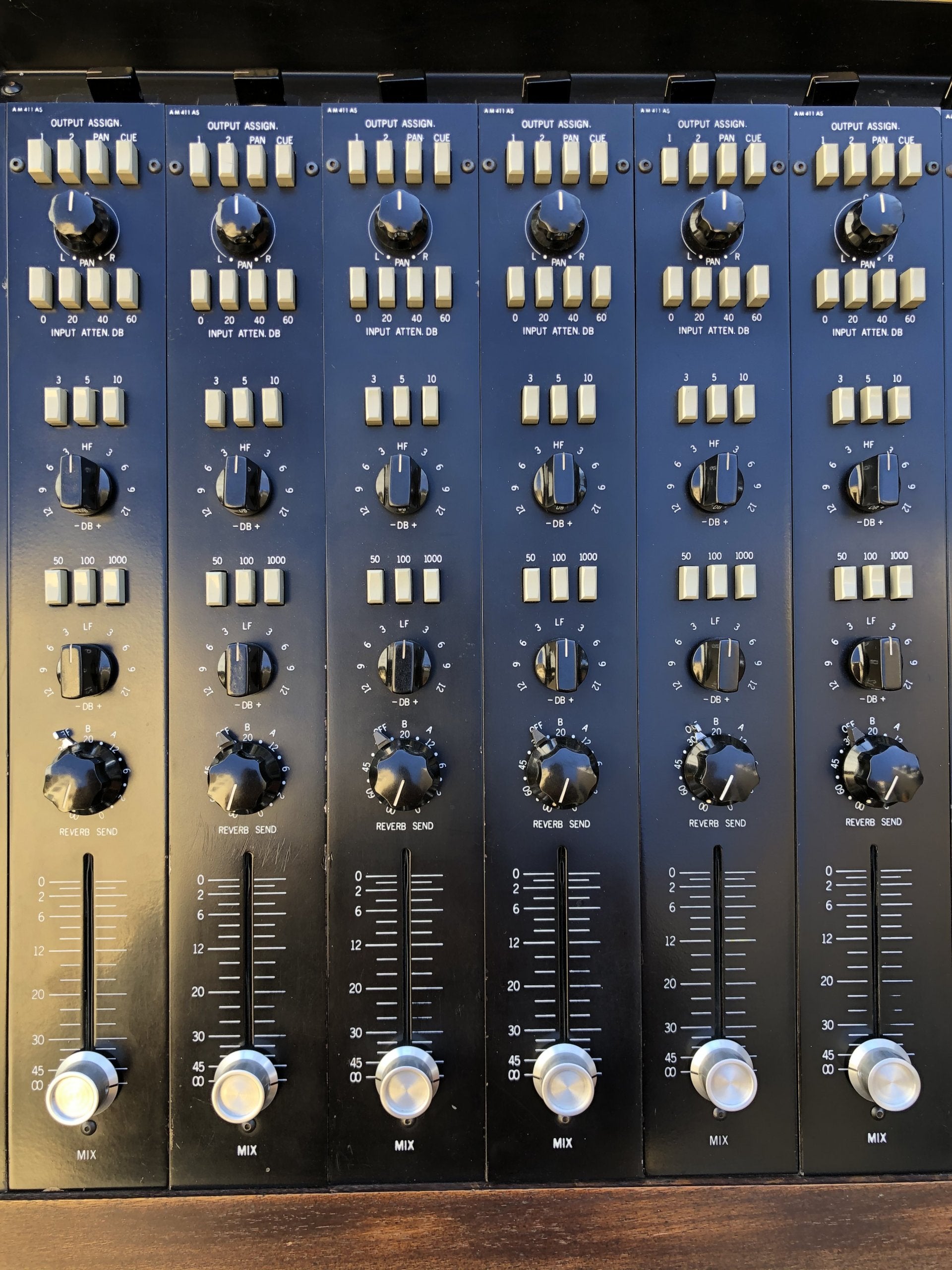

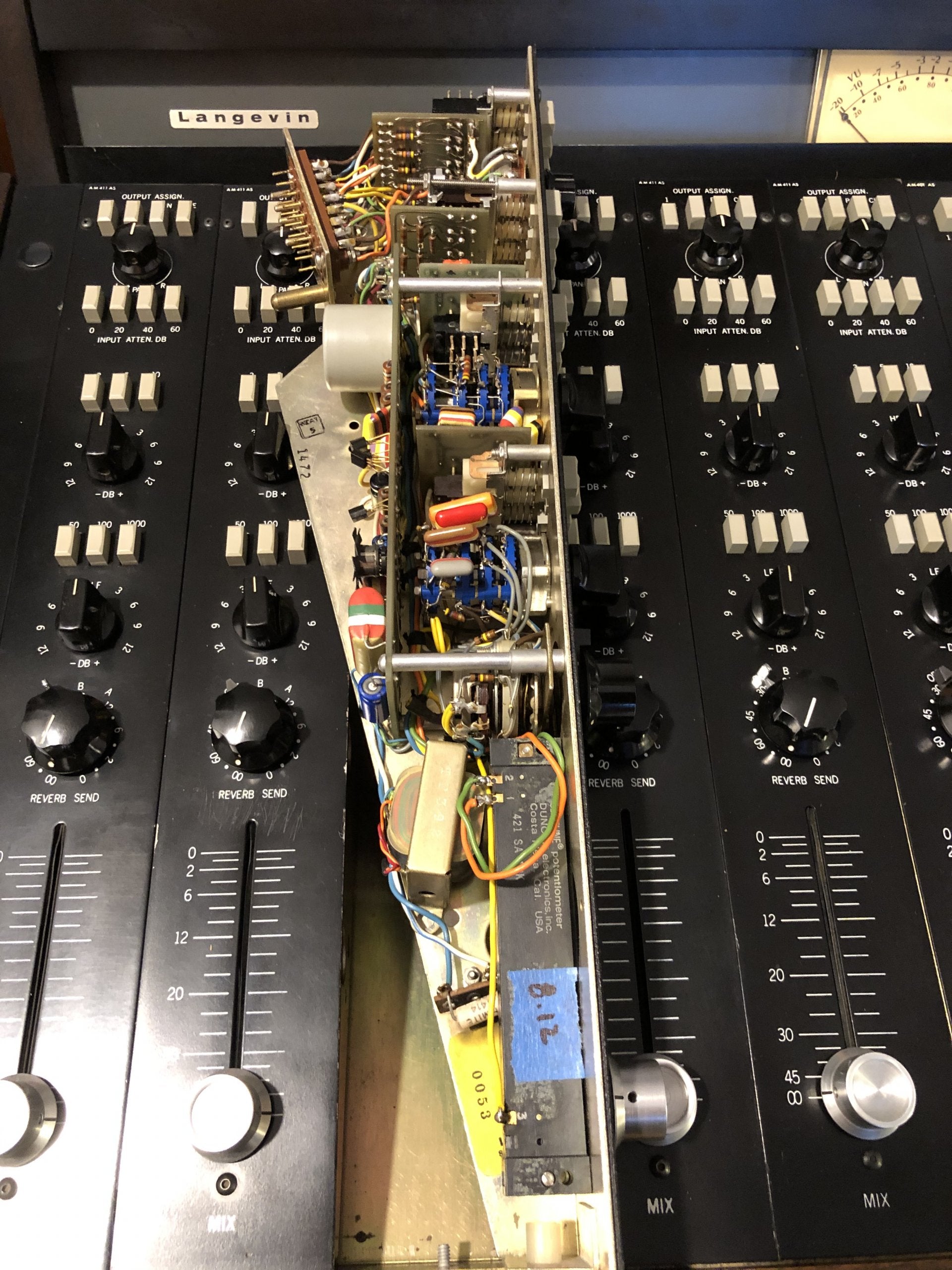

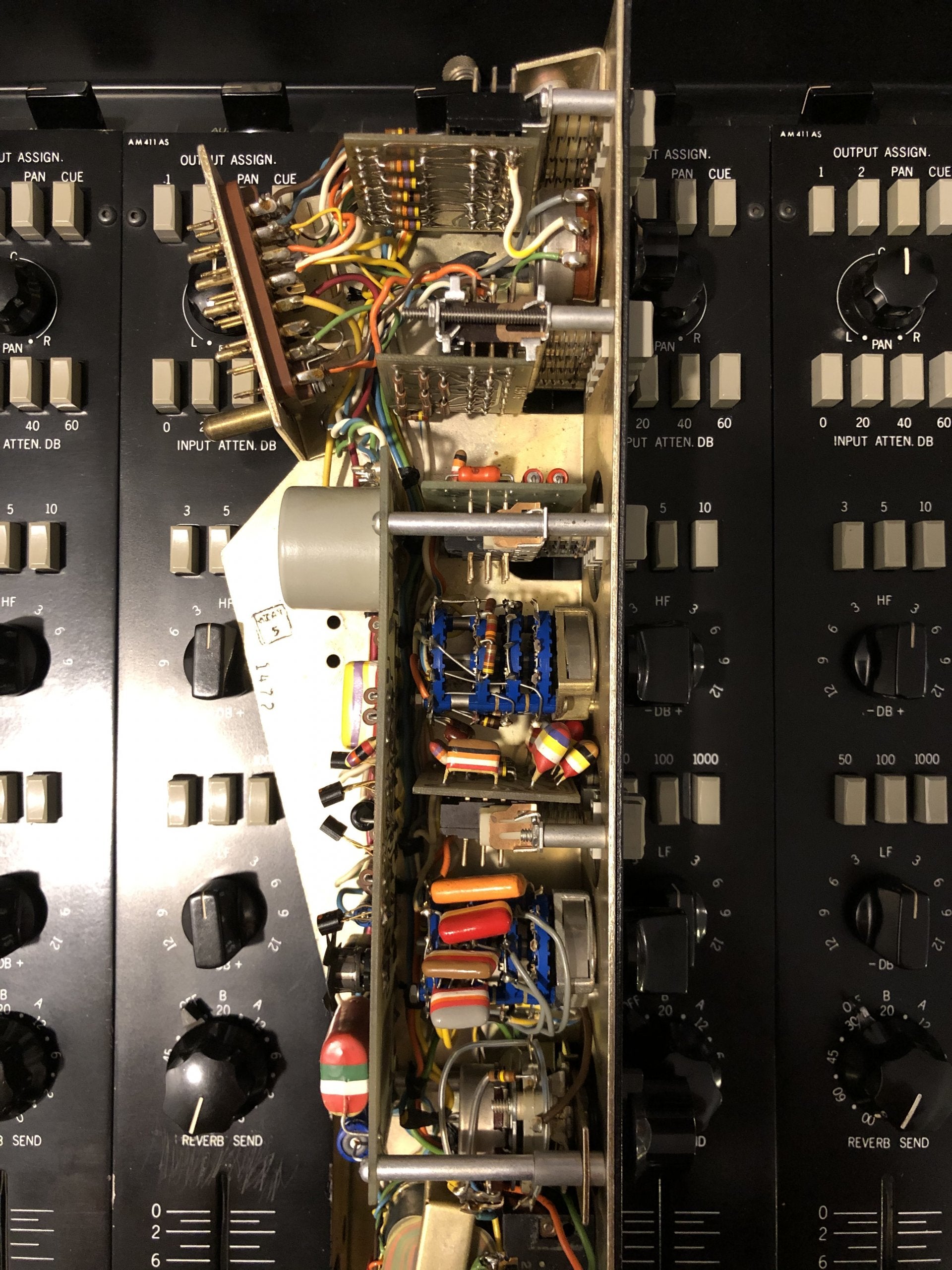

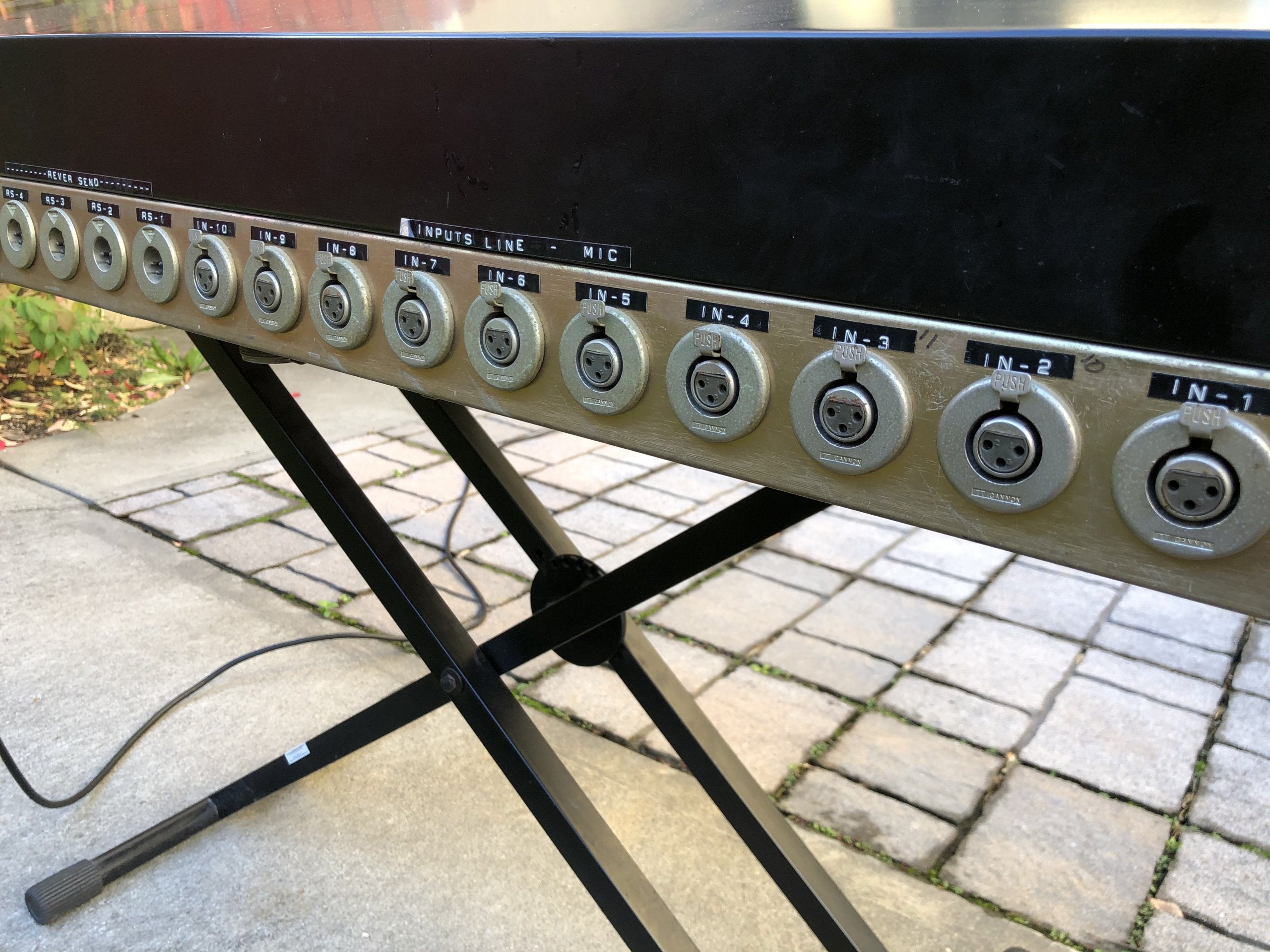

• Ten mic/line channels

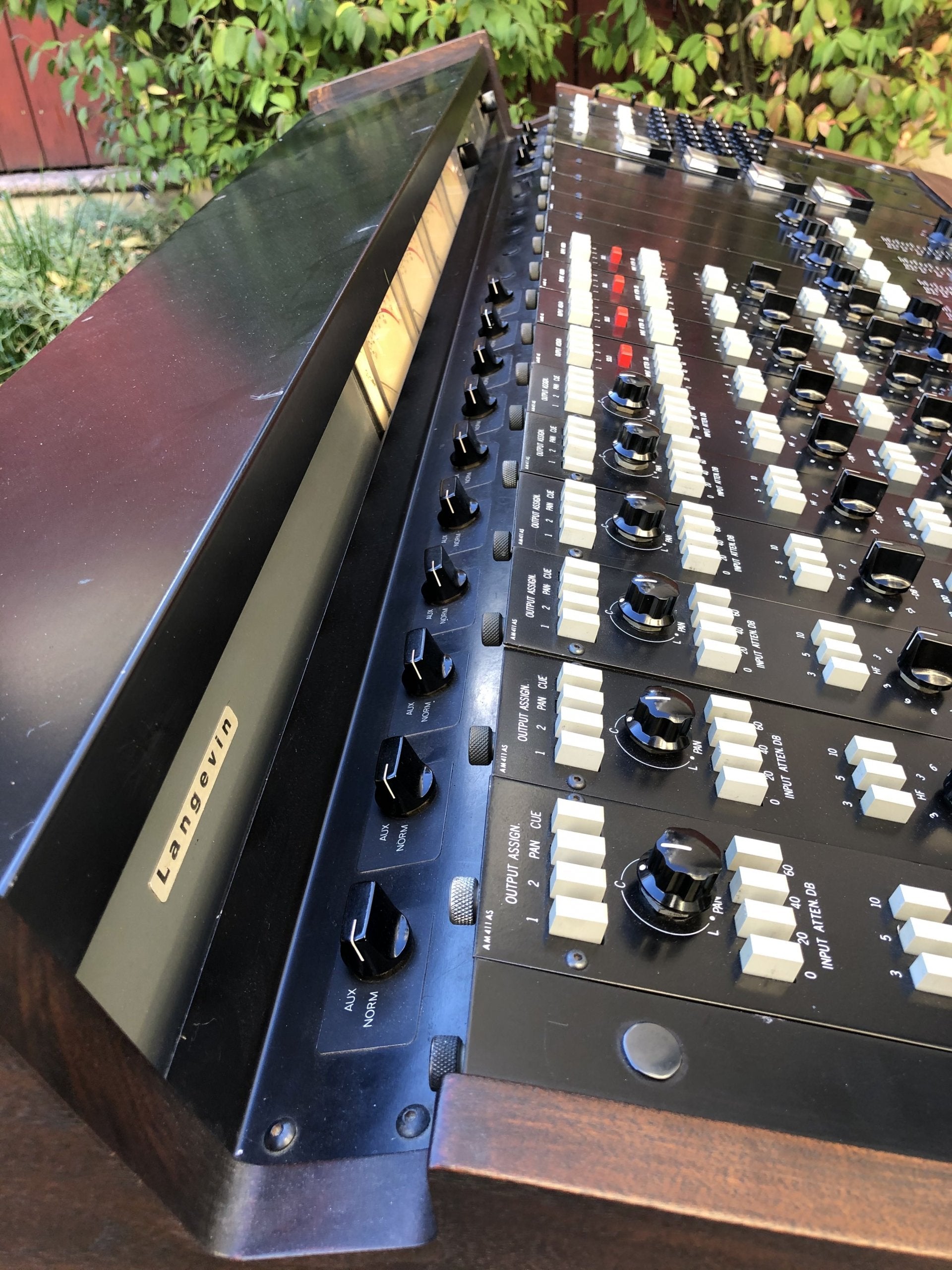

• First six channels have an engageable pan and output assign 1,2

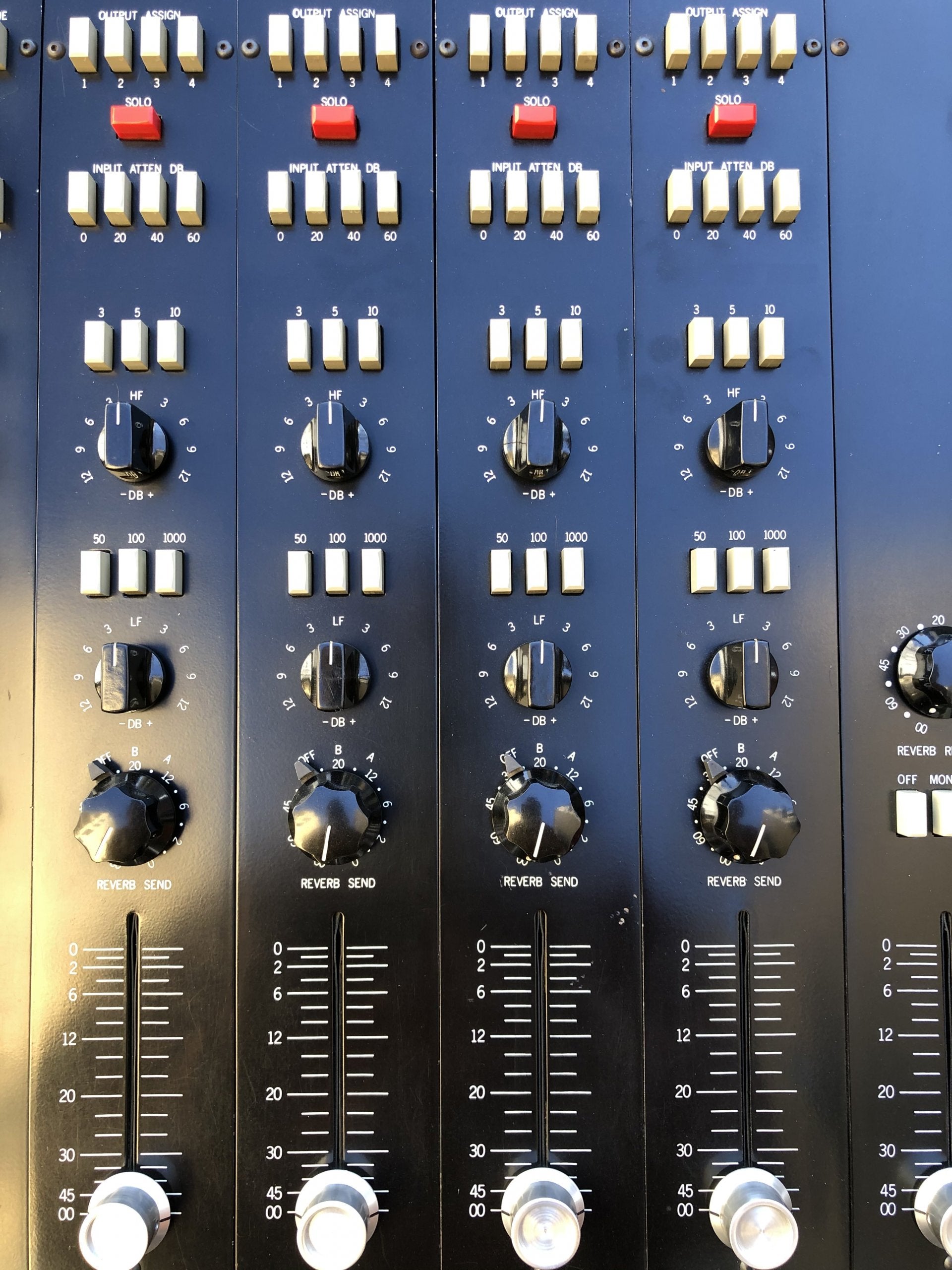

• Following four channels have a momentary solo and output assign 1,2,3,4


• All ten channels have a two band EQ featuring 3k,5k,10k boost/cut 12db and 50,100,1k boost/cut 12db

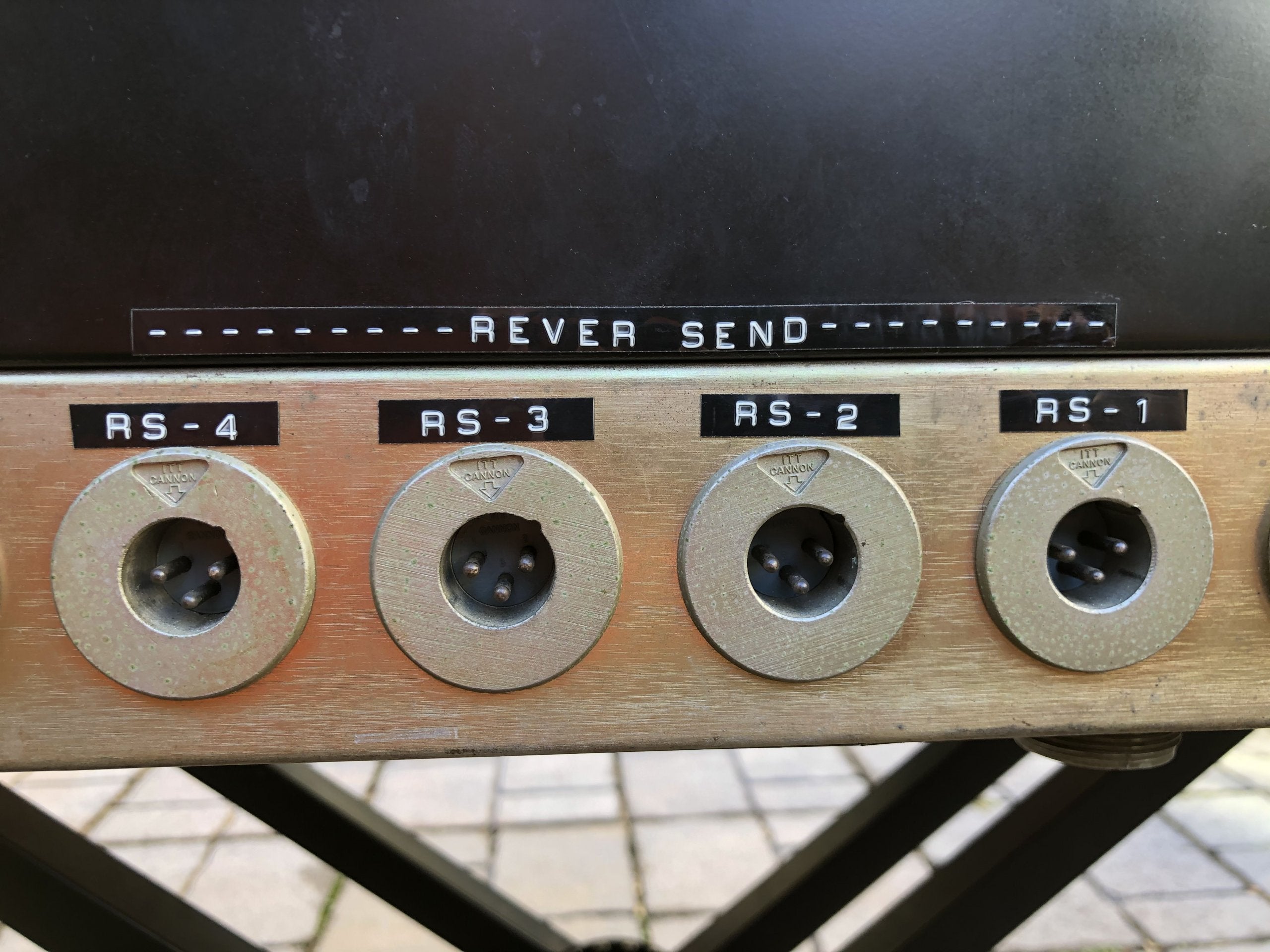

• All ten channels have a reverb send potentiometer to A or B rev and off.


• All ten channels have a fader

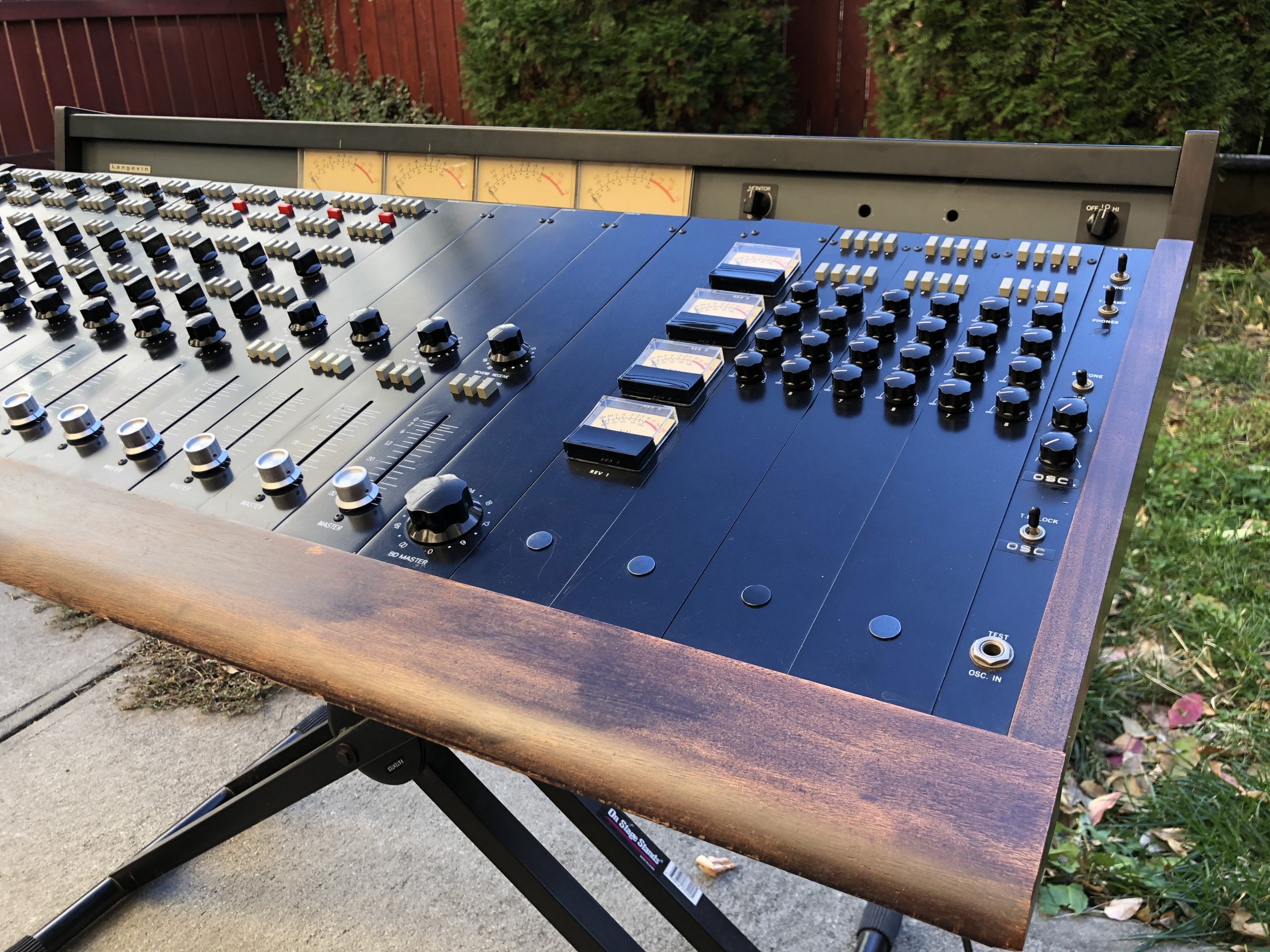

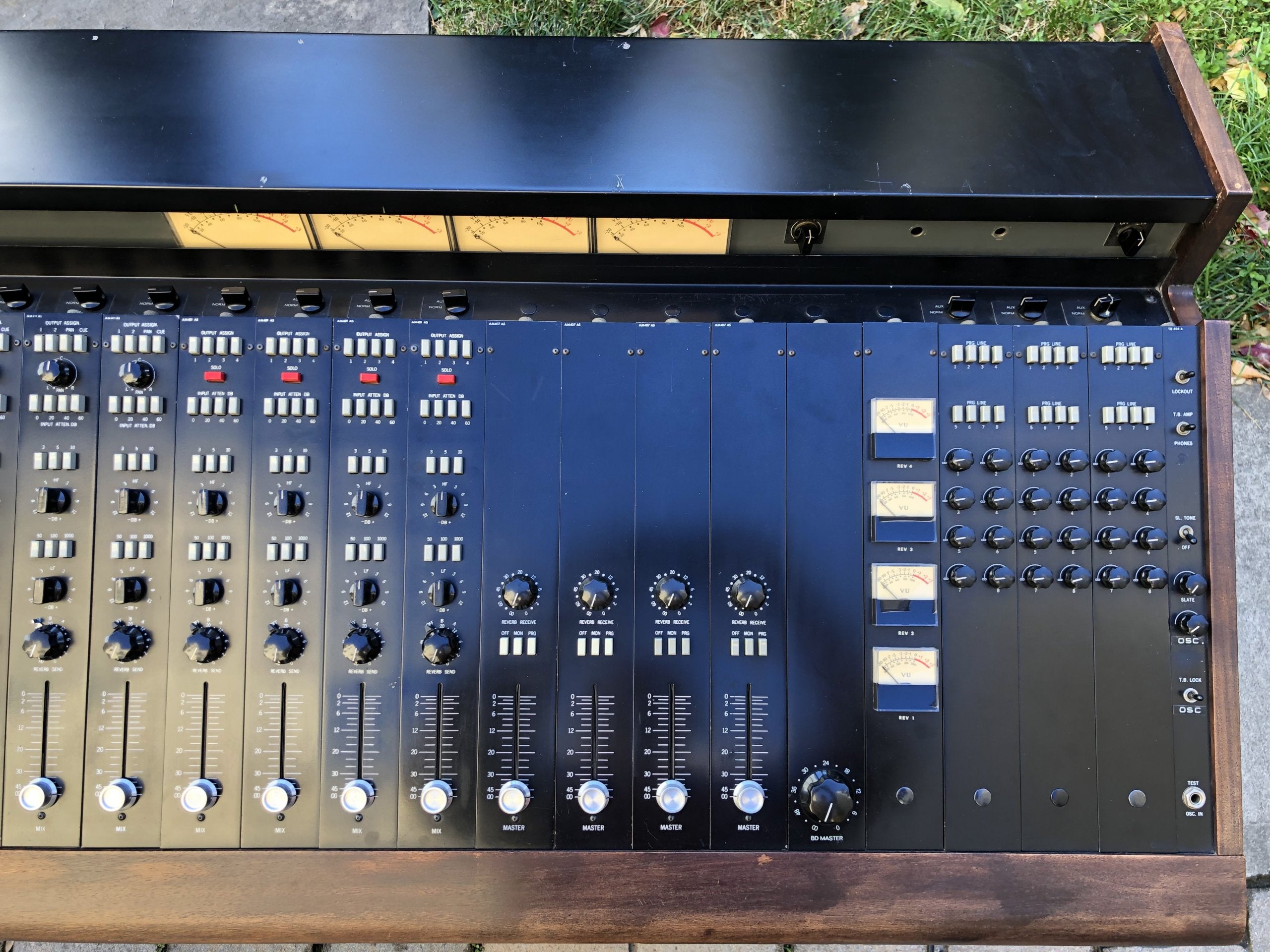

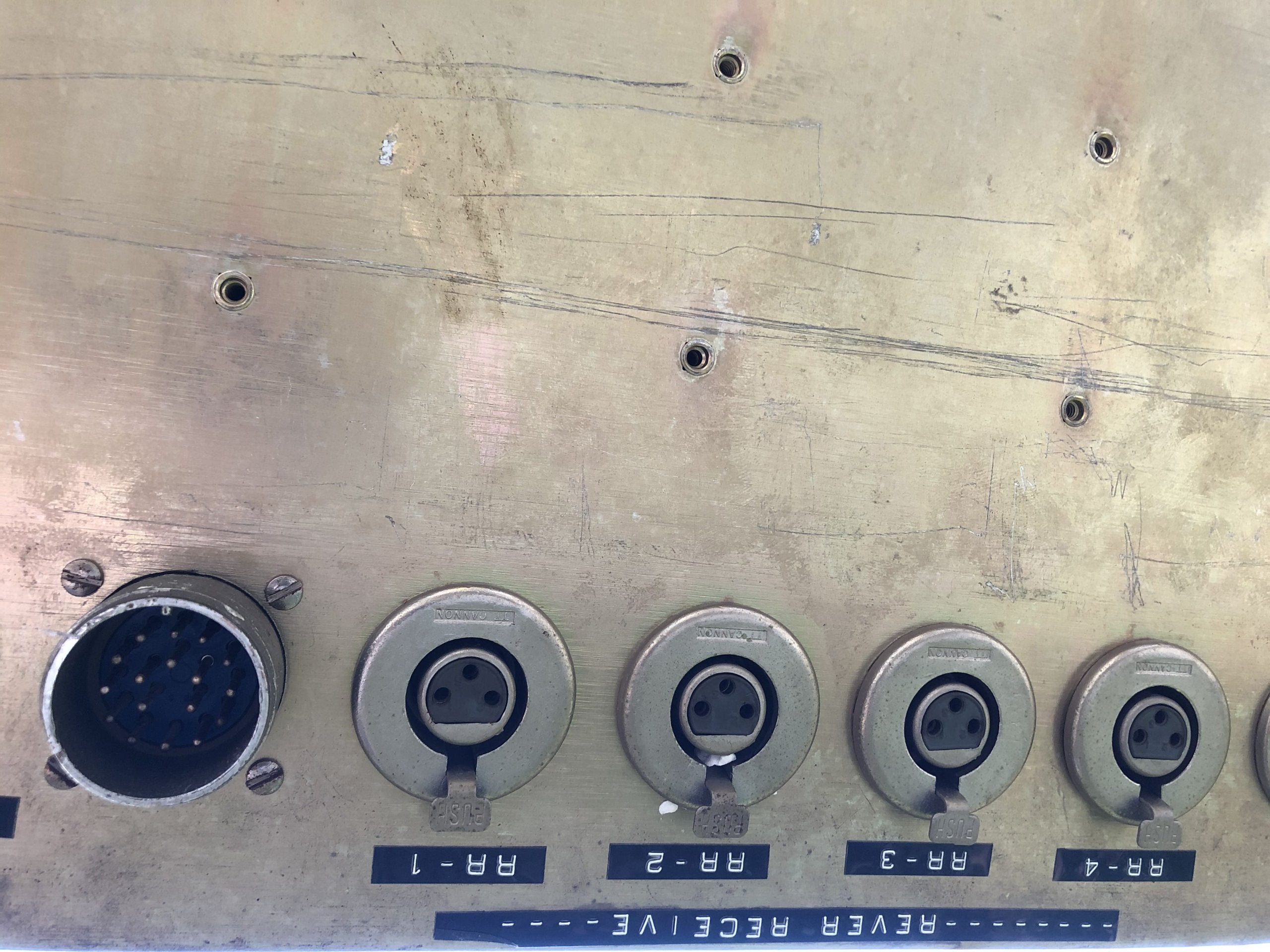

• Four reverb return/master channels that have selectable program or monitor pushbuttons


• Master volume pot


• There are four Rev VU meters for showing your input or "return" to the four master channels

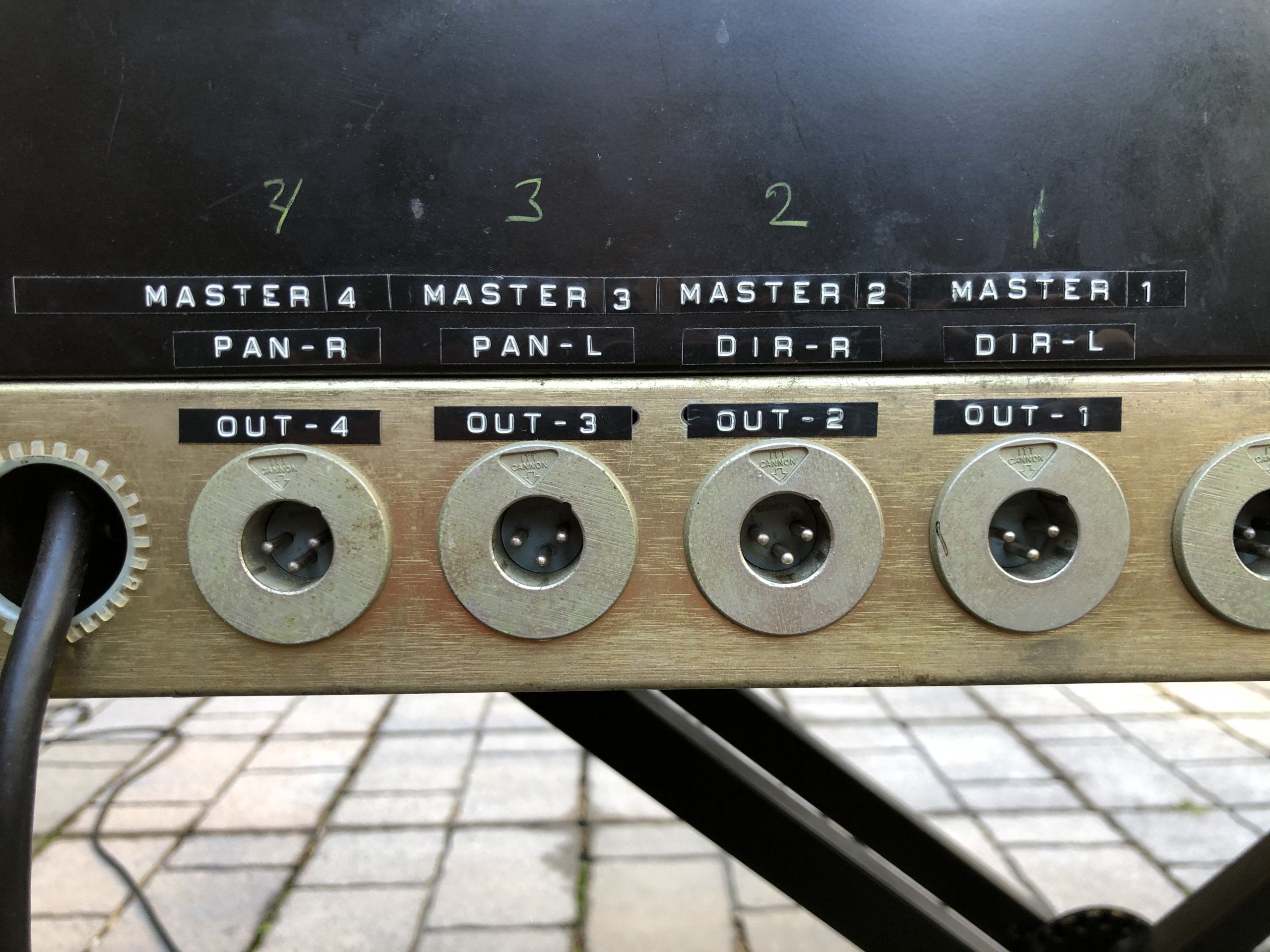

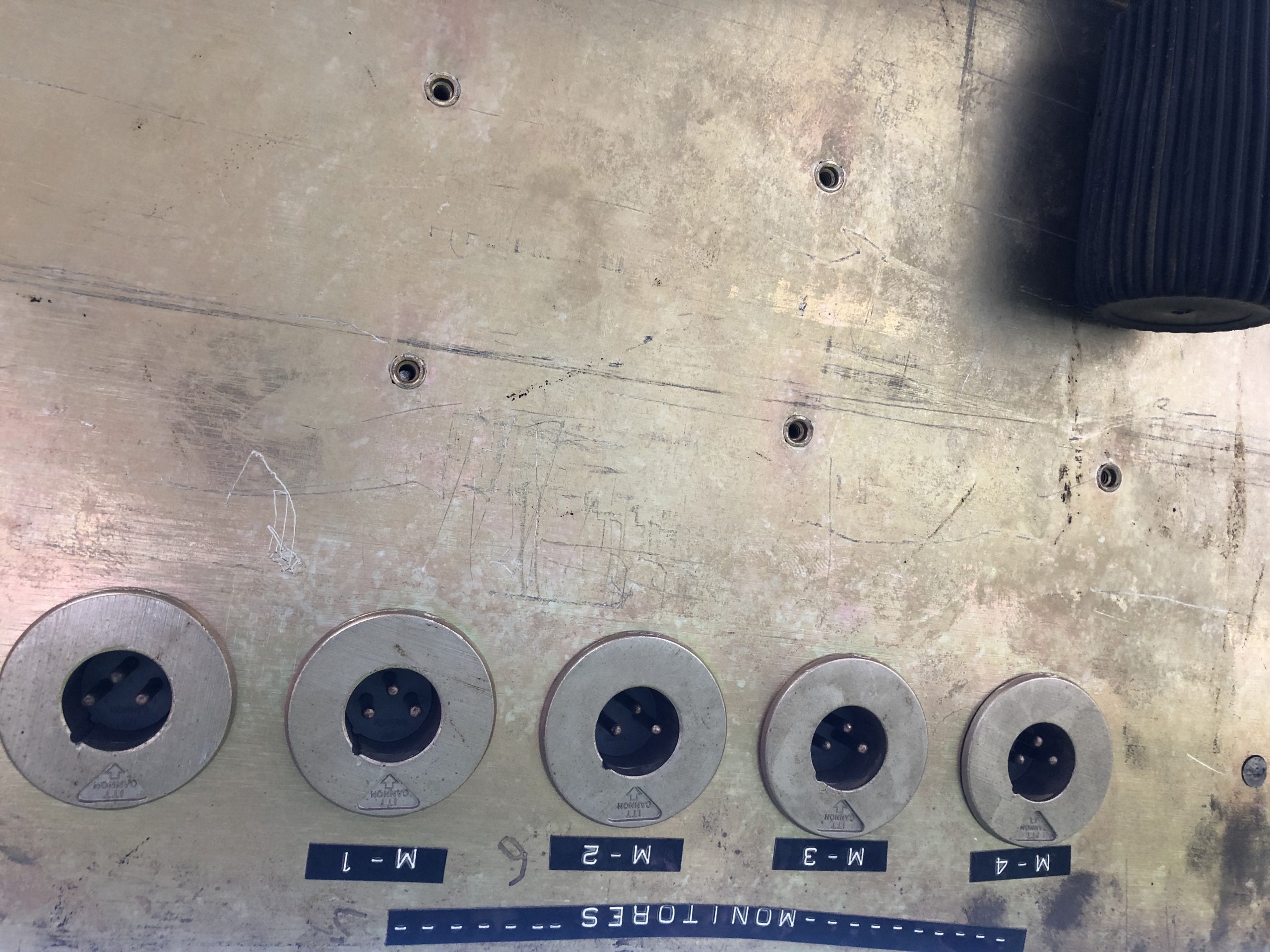

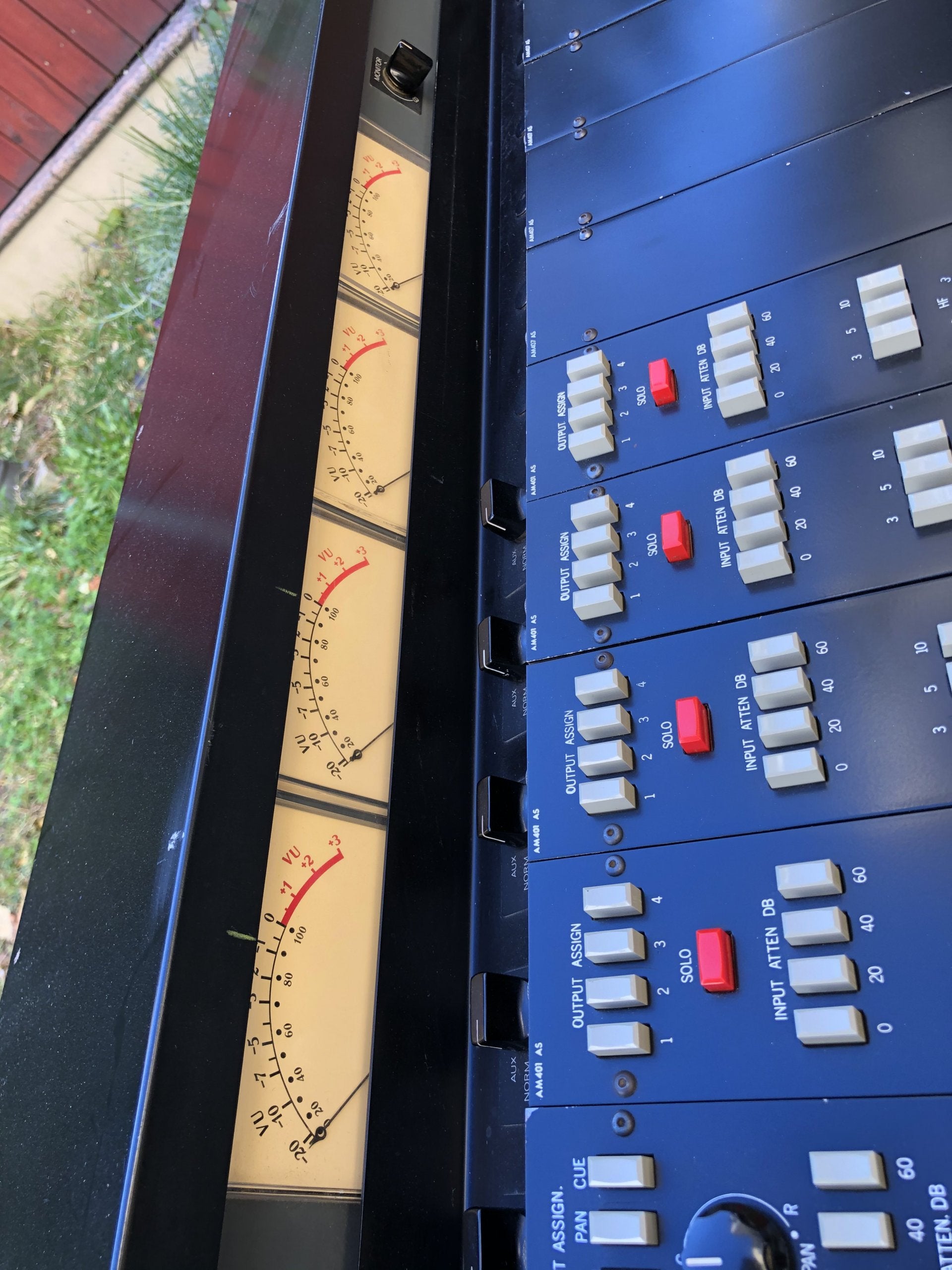

• The outputs of the four master channels go to the four meter bridge VUs

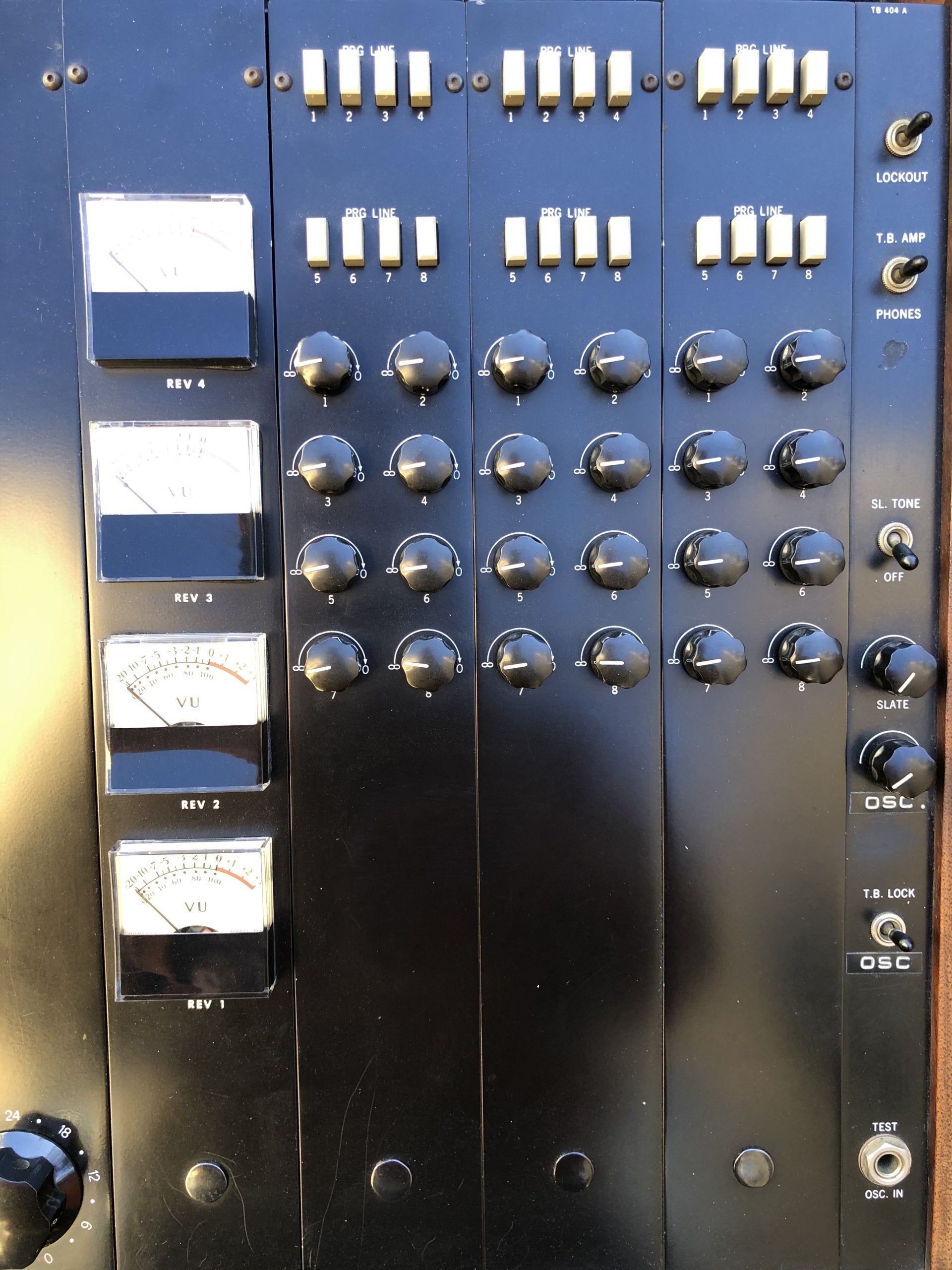

• There is a matrix on the right hand side of the desk that is currently disconnected but could be implemented. These are passive modules with eight small transformers and a level attenuator on each module.
