Future Sound Systems MTX8 Guitar Desktop Pin Matrix Mixer For Sale

Future Sound Systems Future Sound Systems MTX8 Guitar Desktop Pin Matrix Mixer For Sale

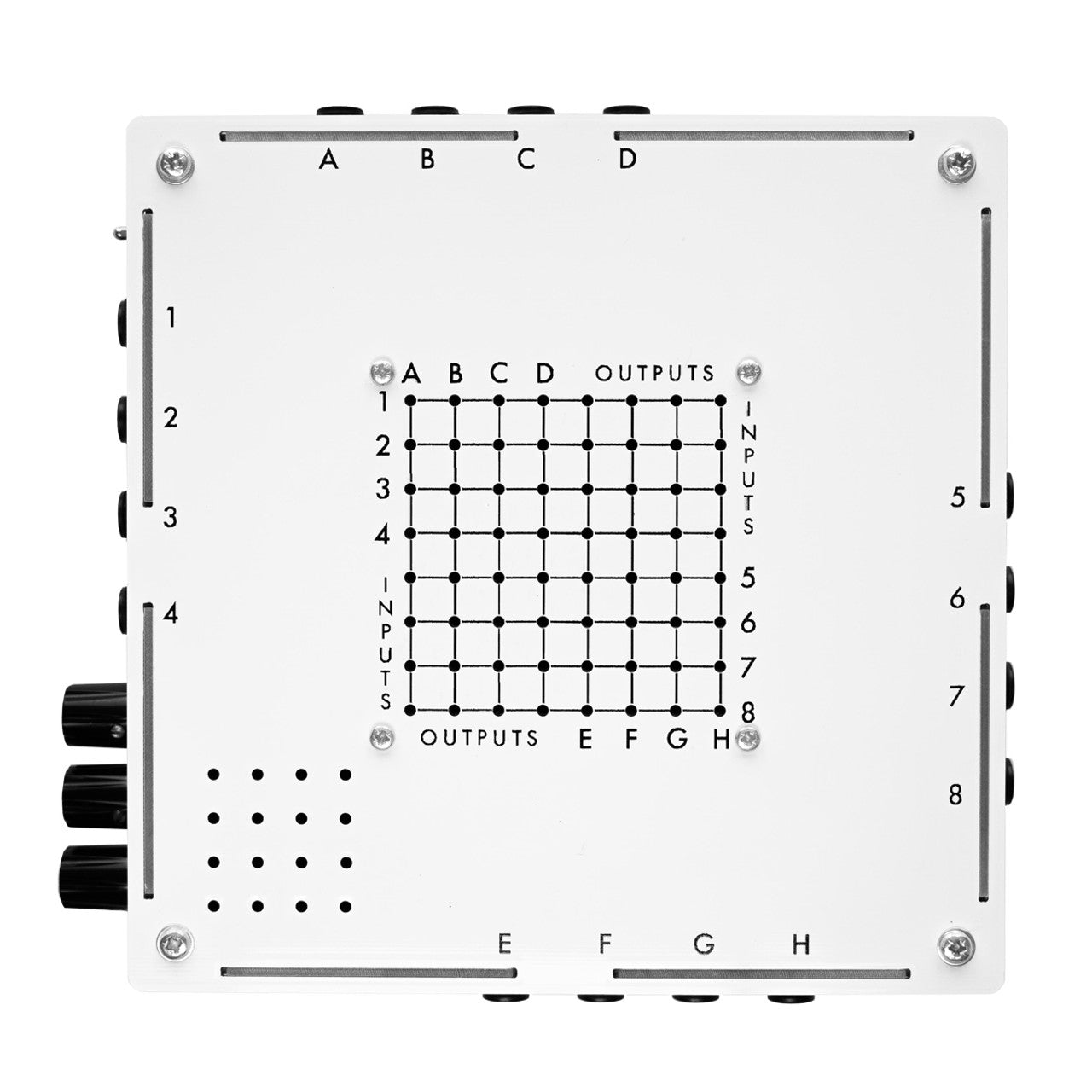

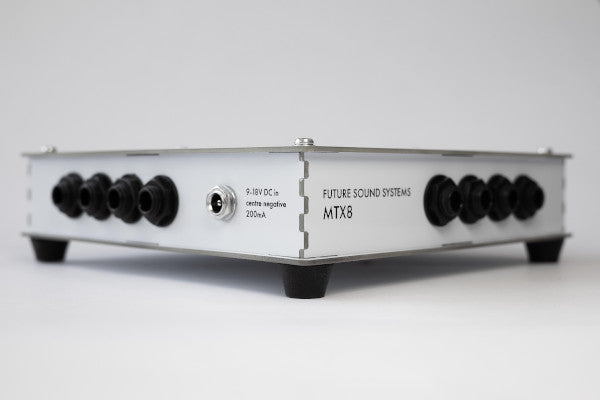

The standard MTX8 is an 8 input, 8 output, active analogue device, featuring full buffering of all inputs and outputs, allowing parity gain summing. Routing configuration is achieved by use of a 64-point pin matrix. Inserting a 2mm banana pin into a point on the matrix connects that input (the numbered vertical axis) to a corresponding output (the lettered horizontal axis). All inputs and outputs on the MTX8 are ¼ inch jacks. The device is unbalanced but will pass balanced signals fed to/from it via two or three pole jacks.

MTX8 Guitar is the same as the standard MTX8, except Input 1 features an input stage based on a Tube Screamer-type distortion pedal. It can be used to add gain and distortion to a guitar or microphone signal. It features a very high gain amplifier with clipping circuitry. The clipping circuit can be switched in and out as desired. The clipping characteristic is asymmetric, emulating the clipping behaviour of thermionic valves.

This input also features a high impedance JFET front end, an aggressive tone control, and has a first order high-pass characteristic with a -3dB point of around 200Hz which prevents low-frequencies from affecting the clipping behaviour adversely. A guitar could be connected to any of the MTX8’s inputs if a flat, parity gain, clean signal is desired.

Condition

Brand New!

Voltage Information

See description for more information.

Tax

For sales in UK the price will include 20% VAT. Buyers elsewhere may incur VAT or other local taxes on import.
