Erica Synths Fusion System II

Erica Synths Fusion System II

Brand: Erica Synths

Regular price £1,725.00 GBP | Inc.VAT: £2,070.00 GBP
Regular price Sale price £1,725.00 GBP
Sale Sold out
Shipping calculated at checkout.

Sorry it's gone. We may have another in stock or on the way. Please enquire below (or check our weekly Gear Update for incoming rarities).

The new version of this remarkable valve-based eurorack modular synthesizer. Powerful, feature-packed and ready to unleash all manner of dark, saturated weirdness on the world.

Make An Enquiry
View full details

Product Description

Covid-19 Update: We remain open but are currently operating at reduced staffing levels to comply with distancing regulations. While most shipments are being delivered swiftly, some services could be impacted and delivery times may be extended. We appreciate your understanding and will endeavour to minimise any delays. Read more…

======

  • Unit supplied will be set up for your mains supply - please specify when ordering.

  • This price is for the unit with lid.


Erica Synths say:
Vacuum tube based eurorack modular synthesizer for sounds of unprecedented pressure.



Erica Synths is one of the few manufacturers that use vacuum tubes in eurorack modules, and those, who are familiar with tube-based modules, know that tubes can push the sound to extremes or turn it deep, saturated and complete.

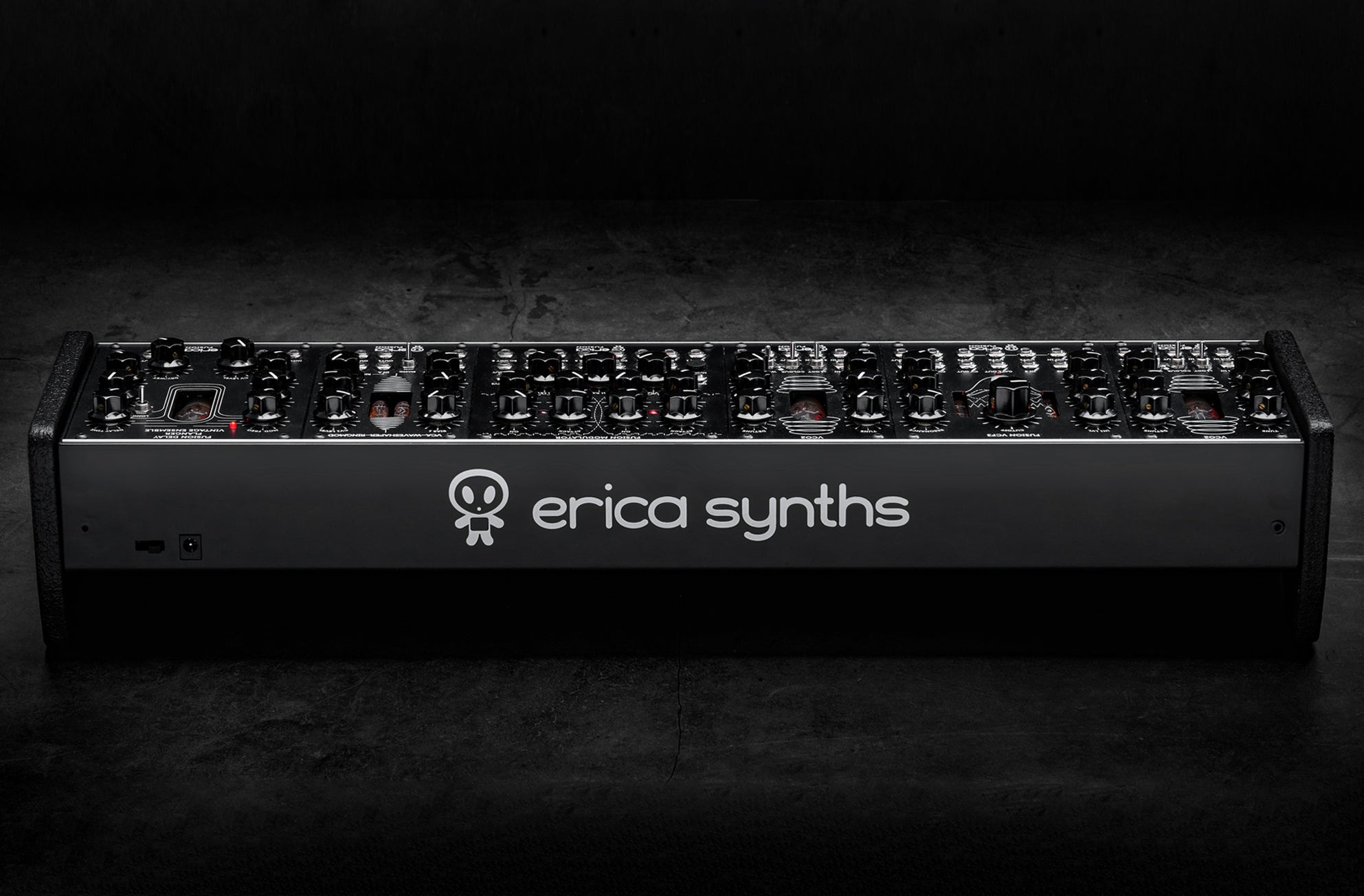

We have come up with three new Fusion series modules – Fusion VCF3, Fusion Modulator (already available) and Fusion VCA/Waveshaper/Ringmodulator – to create the Erica Synths Fusion System II – a modular synthesiser for sounds of unprecedented pressure, unconventional modulations and creativity-inspiring patching. A 104HP system has 63 patchpoints for extensive experiments in sound design, all analogue signal and CV path; it’s a system for those, who take sound design seriously.

Fusion System II includes:

  • Two Fusion VCO2s – fully analogue sound source with three simultaneously available waveforms, transistor-based suboscillator and detune function – two BBD delay lines that make frequency shifter that is mixed back to the principal oscillator in order to emulate two detuned VCOs. Tube crunch – distinct tube overdrive - is added on the top of the mix.

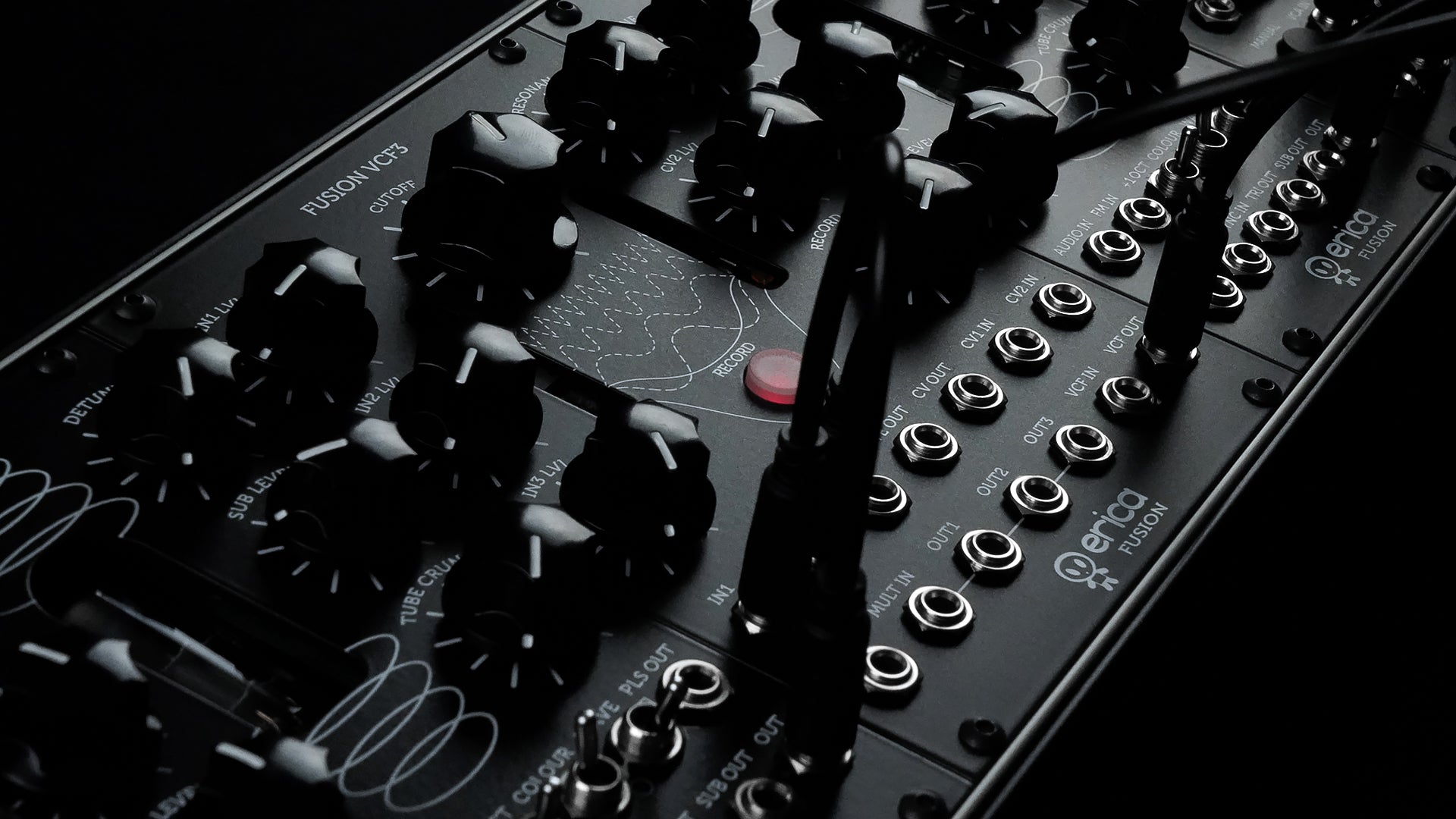

  • Fusion VCF3 – resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility a CV recorder, that records motion of the potentiometer, is incorporated in the module, so you can design advanced modulation patterns.

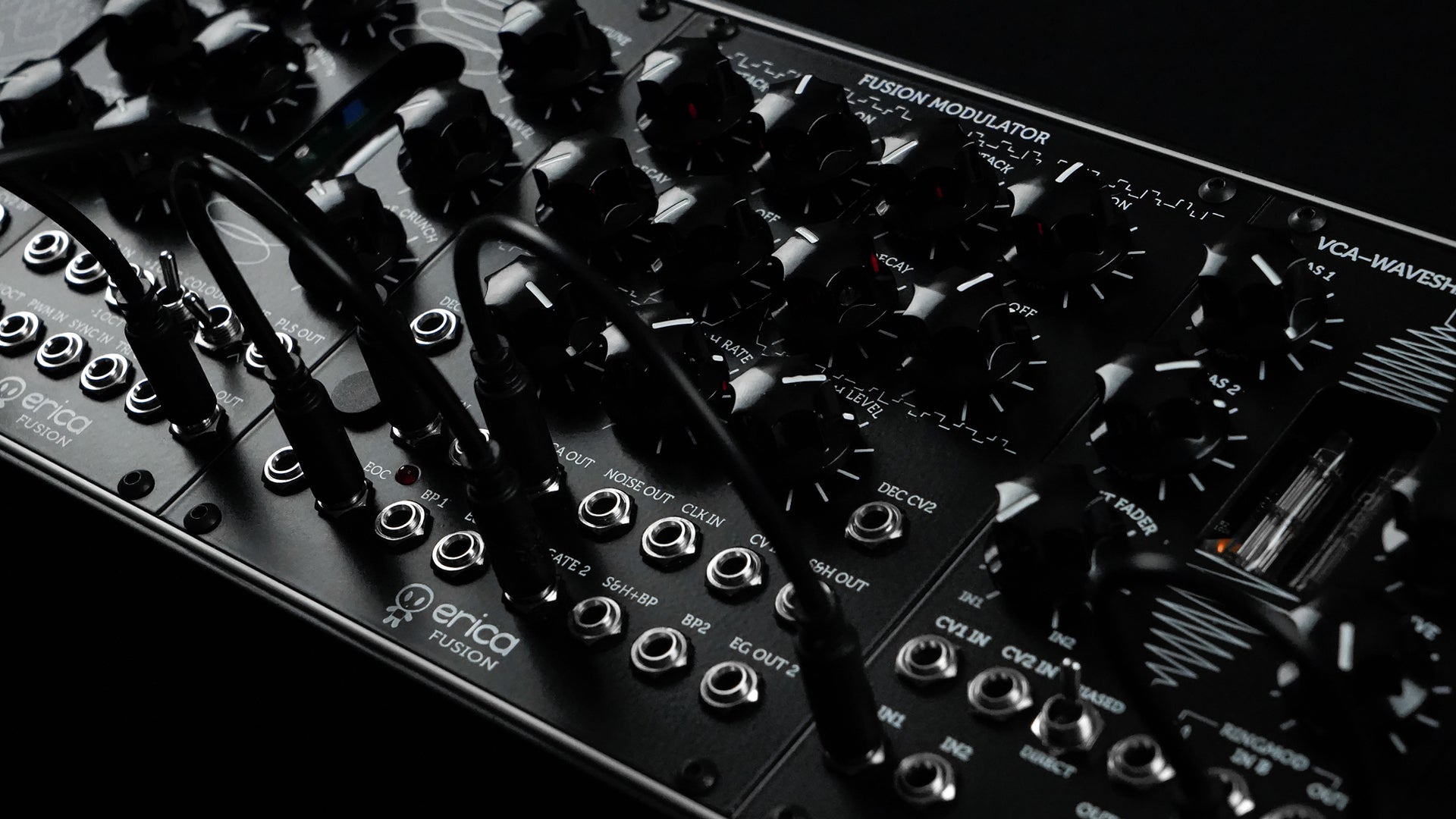

  • Fusion Modulator - complex, all analogue CV source that consists of  several blocks – two EMS Synthi functionality inspired looping envelope generators with simultaneous unipolar (0V-10V) and bipolar (-5V-+5V), VCA, Noise generator and Sample&Hold.

  • Fusion VCA/Waveshaper/Ringmodulator – a modulation source based on two miniature pentodes that operates as VCA, waveshaper and ringmodulator. With two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper it becomes surprisingly versatile sound shaping module.

  • Fusion Delay/Flanger/Vintage Ensemble – a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound.

  • 104HP One Row Skiff case (with or without a lid)

  • 20 patch cables


Condition

New stock.

Voltage Information

See description for more information.

Tax

For sales in UK the price will include 20% VAT. Buyers elsewhere may incur VAT or other local taxes on import.
