Product Description
From AVP Synthesizers:
It has 65 controls, 4 switches and 24 buttons with which you can have a wide control over the sound parameters, sequencer and MIDI. It also has individual audio outputs and individual trigger inputs for each of the seven sounds.
ADS-7 mk2's extensive sound shaping options along with the built-in sequencer allows for creations of interesting electronic sequences and grooves with its own dynamics and raw analog tone.
Each unit is carefully hand assembled in Moscow/Russia using discrete through-hole components and OTA chips.
Main features:
- Fully analog, discrete components;
- 7 individual sound channels: Bass Drum (BD), Clap (CL), Open Hat and Closed Hat (OH/CH) with choking on/off, 3 separate Generators (GEN) with Band-pass and Low-pass filter options for creating all kinds of analog tones and fx ranging from bass, toms "pew", snares, noises, zaps, clicks, sticks and more;
- 65 knobs/controls for different sound shaping options: from standard noise to metallic tones;
- Built-in 16-track MIDI sequencer created by Bruno Dupeyron from France;
- Up to 16 banks with 16 patterns (256 patterns and 16 chains);
- Ability to load/save 16 Banks, Patterns and Chains;
- MIDI In/MIDI Out, Sync;

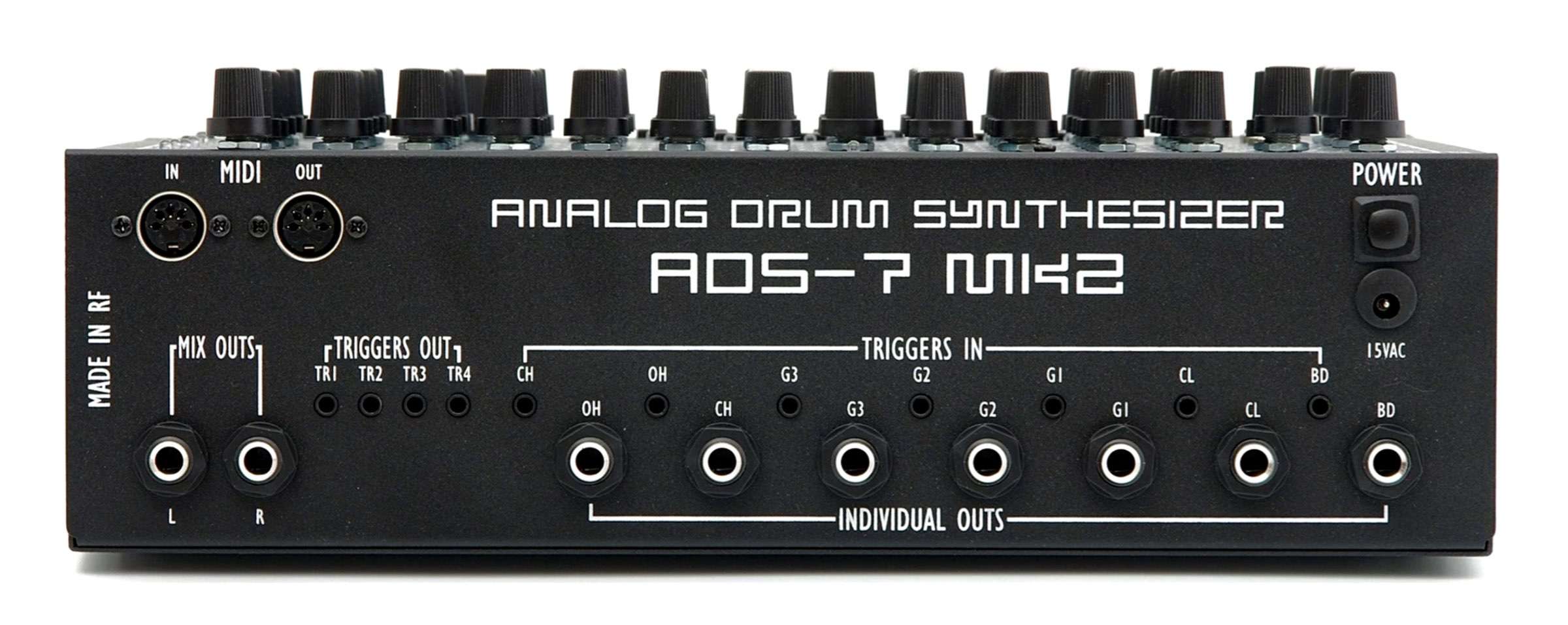

- 3.5 mm individual trigger in for each sound (x7 in total);
- Four 3.5 mm individual trigger outputs to control external devices;
- Stereo and individual 6.3 mm output for each sound;
- Tight steel casing and printing;
- Dimensions: L324xW246xH90 mm;
- Weight: approx. 3 kg (without power supply);
- 15 VAC, 220v/110v euro-type power supply (included).
See the manual here.
