OTO Machines BAM Stereo Reverb Processor

OTO Machines BAM Stereo Reverb Processor

Brand: Oto Machines

Regular price £387.50 GBP | Inc.VAT: £465.00 GBP
Regular price Sale price £387.50 GBP
Sale Sold out
Shipping calculated at checkout.

Exports are EX-VAT worldwide. VAT Included at checkout for UK Customers.

Stock on the way. Pre-order for delivery before Christmas. Stereo reverb processor inspired by the late 70s / early 80s digital reverberator units.

View full details

Product Description






Universal power supply included (15v DC).

From OTO Machines:

BAM is a stereo reverb processor inspired by the late 70s / early 80s digital reverberator units.These units are sought after by sound engineers, producers and musicians for their grainy, warm and musical reverberations.

Here at OTO, we are passionated by the technology of the digital reverberators, especially the old models!

We have carefully listened to all digital reverberators built from 1976 to 1986, studied their architecture and read all the available papers (from 1961 to nowadays) on digital reverb design. It seemed obvious to us that the musicality of the early digital reverb processors was partly due to the algorithms (the way the processor synthesized a natural reverberation), but also to their hardware limitations.

The audio signal was severely high-cut filtered (10 kHz was standard at that time) because of the limited sample clock. Some units used 12 bit gain stepping converters to achieve a 15 bit resolution and others used the first 16 bit converters. Then the samples were digitally processed through a 16 to 20 bit fixed-point CPU with limited memory. The algorithms had to be simple but efficient to create the most musical and versatile reverberation from these limitations. And the hardware itself added grain and warmness to the sound.

The technology used in BAM is very close to the one used in these early digital reverberator units : 16 bit converters, 20 bit fixed-point processing, analog filtering and even an input transformer transient simulator. Some of the 7 reverb algorithms are influenced by the early structures, and some are brand new.

BAM is a very musical and unique reverb processor. It combines the sound quality of a vintage reverb processor with the playability of a desktop effect in a compact format with MIDI control and 36 user presets.

Audio demos below, see more here: https://soundcloud.com/oto-machines




FEATURES







• 7 algorithms: Room, Hall, Plate, Ambient, Chorus, Non-Linear and Primitive
• Input gain up to +15 dB with analog clipping
• Pre Delay up to 500 ms (with the PRE DELAY pot) or 1500 ms (with the TAP switch)
• Continuous control of the reverb Size parameter for fine tuning
• Low-Cut Filter: 20 Hz, 80 Hz, 150 Hz, 250 Hz, 450 Hz
• Hi-Cut Filter: 1,8 kHz, 4,5 kHz, 7 kHz, 9 kHz, 15 kHz
• Chorus parameter can add modulation to the reverberator signal
• Tap Tempo assignable to Pre Delay or Reverb Time
• Freeze switch
• 36 user presets
• MIDI input: BAM responds to CCs and Pgm Change
• 3 bypass modes: Relay, Spillover and Aux

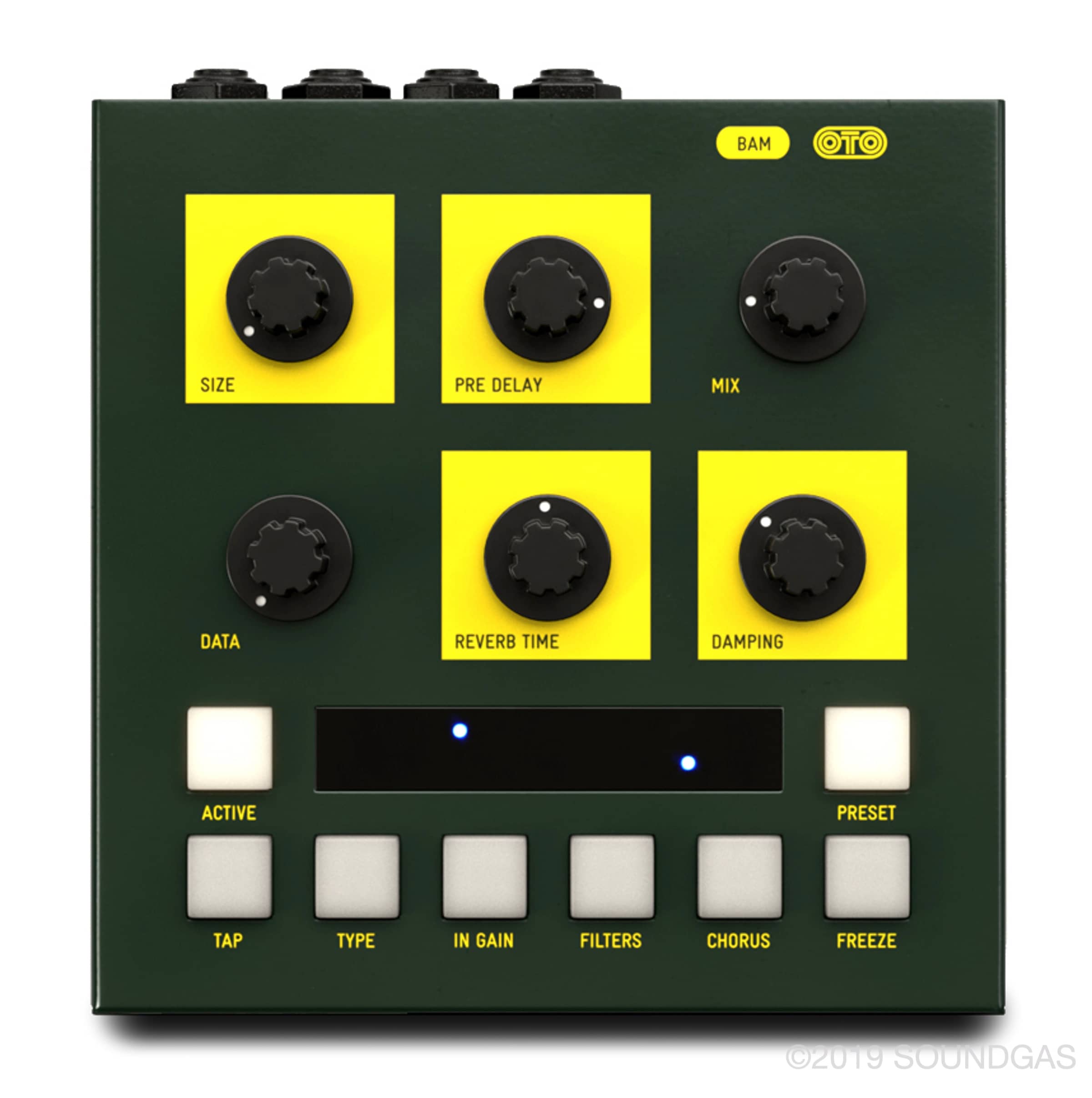

• Nice and simple user interface via 16 white LEDs
• Rugged steel enclosure
• Neutrik® jack connectors








Condition

Brand new item.

Voltage Information

Supplied with a switching transformer for use anywhere in the world

Tax

For sales in UK the price will include 20% VAT. Buyers elsewhere may incur VAT or other local taxes on import.
